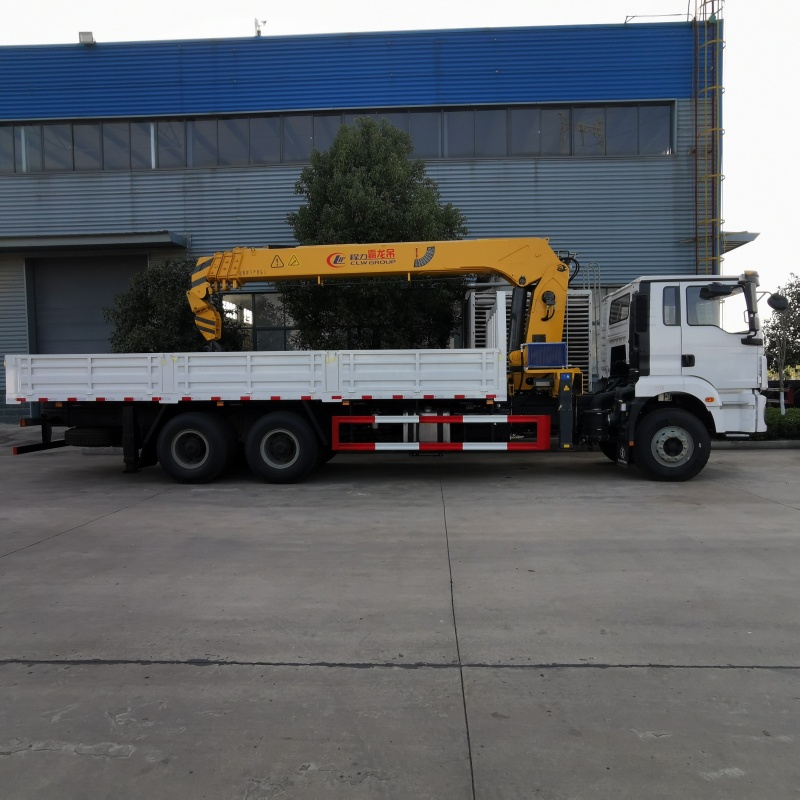

Customized 8Tons 10Tons 12Tons SHACMAN brand 6*4 LHD H3000 telescopic crane boom mounted on cargo truck for sale,
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
HOT SALE! Customized SHACMAN brand 6*4 LHD/RHD H3000 12T telescopic crane boom mounted on cargo truck for sale, adopts SHACMAN brand 6*4 LHD H3000 one row and a half driver cab, 5775+1400mm wheelbase, WP10.340E22 weichai 340hp Euro 2 diesel engine, RTD-11509C 9 speed manual gearbox, MAN 7.5T front axle/MAN 16T dual-grade double rear axles, 400L aluminum alloy material oil tanker, 12.00R20 rail tires, etc.
The overlal dimension(L*W*H) of SHACMAN Brand 6*4 heavy duty 12T telescopic cargo truck with crane boom is 11750×2500×3720,3500(mm); cargo body dimension(L*W*H) of SHACMAN 12T cargo truck with crane boom is 8200,8000×2300,2450×800(mm). The telescopic crane boom choose to install High quality China-famouse XCMG brand 12T telescopic crane boom.
main technical parameters of SHACMAN truck crane 8000kgs 10000kgs 12000kgs is as below.
| Product name | SHACMAN brand 8*4 LHD 12tons telescopic crane boom mounted on cargo truck for sale | |
| Chassis type | SX1255 | |
| Parameters | Overall dimension length/width/height (mm) | 11750×2500×3720,3500 |
| Cargo body dimension (L*W*H)(mm) | 8200,8000×2300,2450×800 | |
| GVW(kg) | 25000 (Kg) | |
| curb Mass(kg) | 13000(Kg) | |
| Rated mass(kg) | 11870 (Kg) | |
| Approach angle/ Departure angle(mm) | 16/11(°) | |
| Front suspension/rear suspension(mm) | 1525/3250 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | WP10.340E22 |
| Displacement/Power(kw) | 9726ml/250KW/340hp | |
| Manufacturer | WEICHAI | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 5775+1400mm | |
| Tread(front/rear) | 2036, 1860/1860 (mm) | |
| Transmission | RTD-11509C 9 speed manual gearbox | |
| Cab | SHACMAN H3000 luxurious driver cab | |
| Number of spring axle(front/rear) | 4/4 | |
| Tire Type | 12.00R20 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8200,8000x2300, 2450x600 |
| Material | Carbon steel | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG brand 12T 4 sections telescopic crane boom | |
| Lifting height | 14.5m | |
| Working radius | 12.9m | |
| Crane boom | Full hydraulic, full rotation, aerial working seat, auto- retract hook hanger, | |
| The color of the whole truck is upon request. | ||
