5000kgs 6300kgs DONGFNEG tianjin cargo truck with crane for sale
DONGFENG TIANJIN 4*2 LHD 5T cargo truck with crane for sale, adopts dongfeng Tianjin one row and a half driver cab, 4700mm wheelbase, Cummins B190 33 190hp diesel engine, 8 speed manual gearbox, power steering and air cut braking, 10.00R20 rail tires, 4700mm wheelbase.
And the overall dimension of Dongfeng Tianjin 4*2 LHD 5T truck with crane is 8600×2500×3790(mm), and the cargo body dimension of dongfeng Tianjin 5T cargo truck with crane is 5300×2294×550(mm).Clients choose high quality CLW Brand 5tons/6.3tons telescopic crane boom.

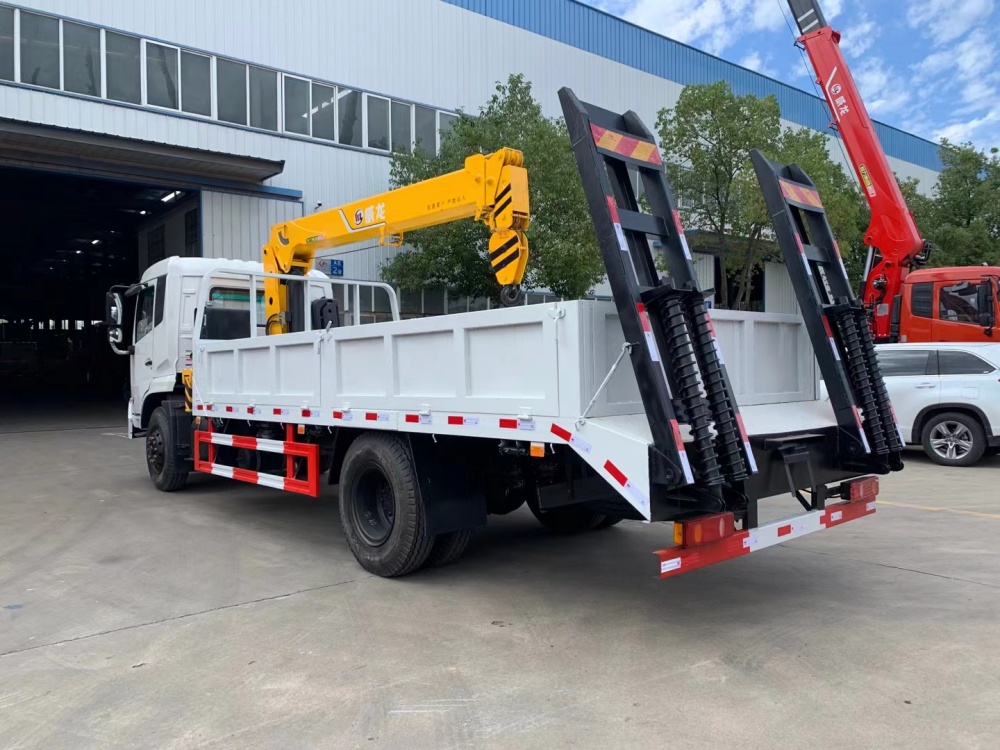

dongfeng cargo truck crane with rear ladder for sale
Main technical parameters of Dongfeng Tianjin 4*2 lHD cargo truck with crane as below.
| Product name | Dongfeng dongfeng Tianjin LHD 5tons/6.3tons telescopic crane boom mounted on truck for sale | |
| Chassis type | DFL1160 | |
| Parameters | Overall dimension length/width/height (mm) | 8600×2500×3790 |
| Cargo body dimension (L*W*H)(mm) | 5300×2294×550 | |
| GVW(kg) | 16000 (Kg) | |
| Kerb Mass(kg) | 8305,7805 (Kg) | |
| Rated mass(kg) | 7500,8000 (Kg) | |
| Approach angle/ Departure angle(mm) | 20/10 (°) | |
| Front suspension/rear suspension(mm) | 1430/2550 | |
| Fuel Type | diesel | |
| Max Speed | 80 | |
| Engine | Type | B190 33 |
| Displacement/Power(kw) | 5900hp/190hp | |
| Manufacturer | CUMMINS | |
| Chassis | Drive Type | 4*2 |
| Wheelbase(mm) | 4700 | |
| Tread(front/rear) | 1880/1860 (mm) | |
| Transmission | 8 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Dongfeng Tianjin one row and a half luxurious driver cab | |
| Number of spring axle(front/rear) | 8/10+8 | |
| Tire Type | 10.00R20 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5300×2294×550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 5ton 3 sections or 6.3tons 3 sections telescopic crane boom | |

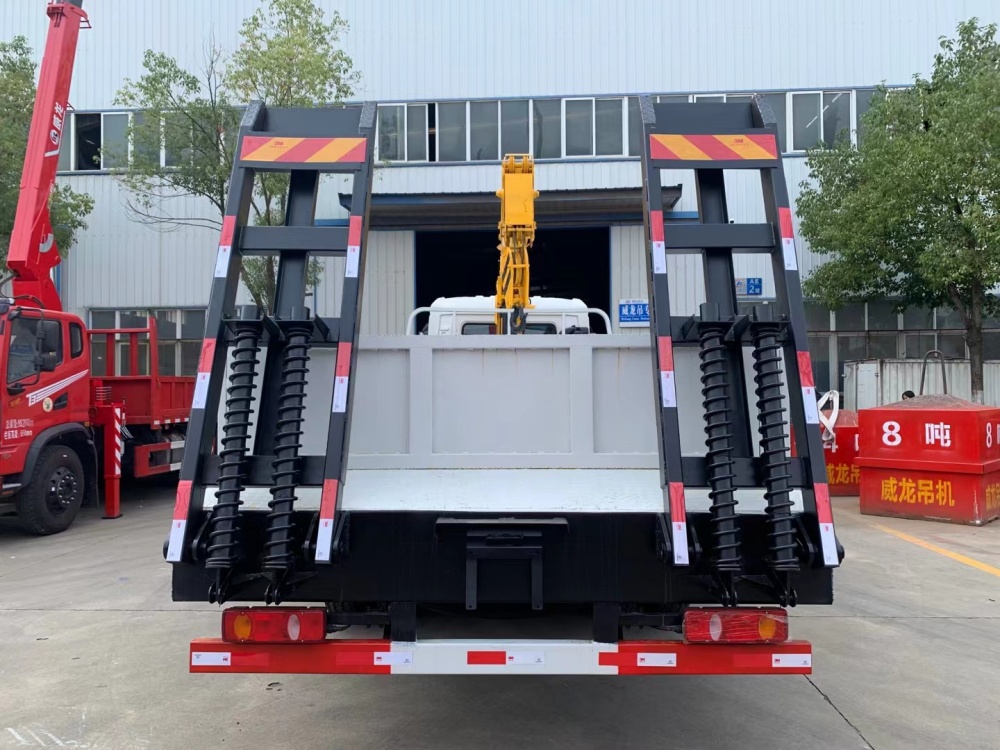

| The rear hydraulic ladders are selective like the picture shows | ||
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
