our industry advantage

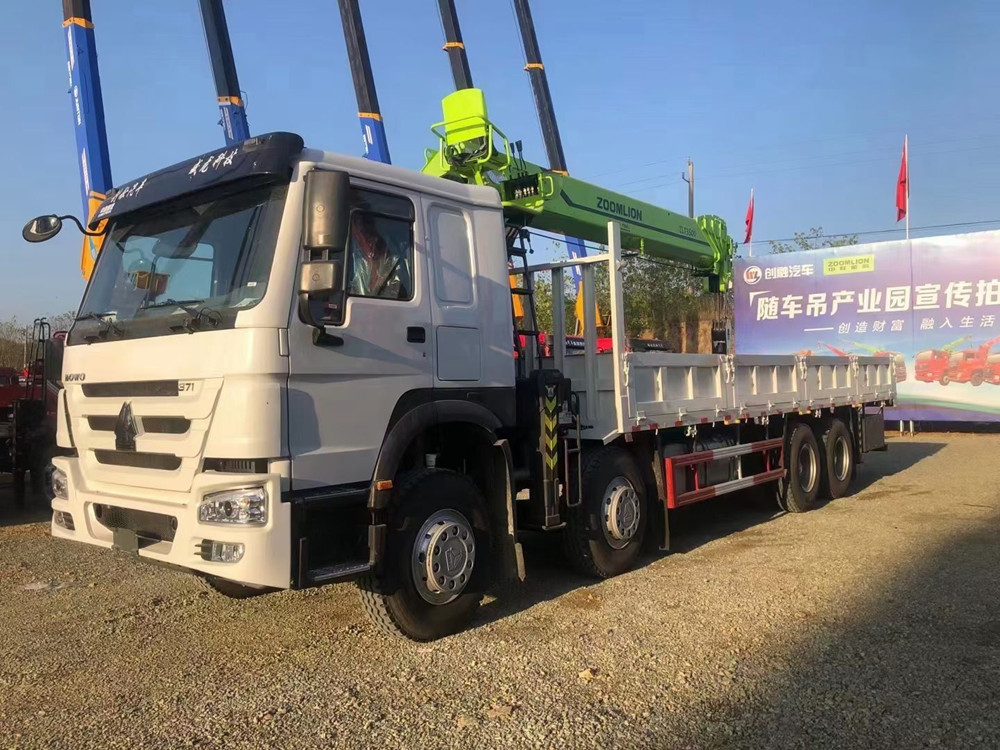

vehicle photo show
product parameters
best price and high quality SINOTRUK HOWO 12 tires truck with crane 20000kgs for sale
good quality SINOTRUK HOWO 8*4 12 tires truck with crane, adopts high quality SINOTRUK HOWO 8*4 LHD V7 HW76 one row and half driver cab, 1800+4600+1350mm wheelbase, WD615.47 371hp diesel engine, HW10+2 gears, manual type, 12.00R20 tires*12+1 spare, etc.
Clients choose to install XCMG 20T knuckle crane boom. The flatbed dimension (L*W*H): 8000x230x550 (mm).
main technical parameters of SINOTRUK HOWO 8*4 LHD 20tons telescopic crane boom mounted on cargo truck is as below.
Product name | SINOTRUK HOWO brand 8*4 LHD 20tons telescopic crane boom mounted on cargo truck for sale | |
Chassis type | ZZ | |
Parameters | Overall dimension length/width/height (mm) | 11990×2498×3990(mm) |
Cargo body dimension (L*W*H)(mm) | 8000*2300*550 | |
GVW(kg) | 31000 (Kg) | |
curb Mass(kg) | 19370(Kg) | |
Rated mass(kg) | 11500(Kg) | |
Approach angle/ Departure angle(mm) | 16/11(°) | |
Front suspension/rear suspension(mm) | 1500/2715 | |
Fuel Type | diesel | |
Max Speed | 90 | |
Engine | Type | WD615.47 |
Displacement/Power(kw) | 9726ml/273KW/371hp | |
Manufacturer | Sinotruk | |
Chassis | Drive Type | 8*4 |
Wheelbase(mm) | 1800+4600+1350mm | |
Tread(front/rear) | 2022/2022, 1830/1830 (mm) | |
Transmission | HW19710 10+2 gears, manual type | |
Cab | SINOTRUK HOWO HW76 one row and a half driver cab | |
Tire Type | 12.00R20*12+1 spare | |
Upper part(cargo van and crane boom) main parameters | ||
Upper body | Cargo body dimension | 8000×2300×550mm |
Material | Carbon steel | |
Painting | Upon request | |
Crane boom main parameters | ||
Crane boom | install high quality XCMG telescopic (GSQS500-5) | |
Max loading capacity | 20000kgs | |
Max lifting moment | 520Kn.m | |
Max hydraulic outreach | 23.7m | |
Slewing angle | 360°full rotation | |
Stabilizer spread | 2436-8396mm | |
Installation room | 1400mm | |
Max operating pressure | 28MPa | |
Recommedded pump capacity | 80+50L/min | |
Oil tanker capacity | 270L | |
Dead weight | 7600kgs | |
XCMG Brand Rear double hydraulic single-chamber outriggers installed | ||
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
