Product Real Shot Display

vehicle photo show

IMG_6607(20240408-162216)_副本 IMG_6610(20240408-162224)_副本 IMG_6612(20240408-162230)_副本 IMG_6617(20240408-162245)_副本

Product parameter details

product parameters

ISUZU GIGA cargo truck with knuckle crane boom for sale
ISUZU VC61 GIGA luxurious driver cab
4*2 LHD; 5550mm wheelbase
4HK1-TC60 ISUZU 205HP Euro 6 emission standard,
Isuzu MLD 6+1 gears, manual type
295/80R22.5 18PR*6+1 spare
Air conditioner, power steering, ABS, electric windows and doors, air cut braking,
Total mass: 18000kgs
Curb mass: 11280kgs
Rated mass: 6525kgs
Overall dimension(L*W*H): 9000×2530×3700
Cargo body dimension(L*W*H): 5650×2430×600

Choose to install XCMG xugong 5Tons knuckle crane boom or other brands crane boom, telescopic crane boom optional.

main technical parameters of ISUZU knuckle crane boom on cargo truck is as below.

Product name

ISUZU Brand 4*2 LHD 5tons knuckle crane boom mounted on truck for sale

Chassis type

QL5180

Parameters

Overall dimension length/width/height (mm)

9000×2530×3700

Cargo body dimension (L*W*H)(mm)

5650×2430×600

GVW(kg)

18000 (Kg)

Kerb Mass(kg)

11280kgs

Rated mass(kg)

6525(Kg)

Approach angle/ Departure angle(mm)

26/10 (°)

Front suspension/rear suspension(mm)

1335/1865

Fuel Type

diesel

Max Speed

90

Engine

Type

4HK1-TCG60

Displacement/Power(kw)

5193ml/151KW/205hp

Manufacturer

ISUZU

Chassis

Drive Type

4×2

Wheelbase(mm)

5550

Tread(front/rear)

1960/1855 (mm)

Transmission

ISUZU MLD 6 speed gearbox, manual

Braking system

Air braking

Cab

Isuzu VC61 one row and a half luxurious driver cab

Number of spring axle(front/rear)

9/7+7

Tire Type

295/80R22.5 18PR*6+1 spare

Upper part(cargo van and crane boom) main parameters

Upper body

Cargo body dimension

5650×2430×600

Material

Carbon steel

Side sheet thickness

2mm thickness

Bottom sheet thickness

2mm thickness

Painting

Upon request

Crane boom main parameters

Crane boom

Choose to install XCMG or CLW brand 5T/6.3T telescopic/knuckle crane boom

The color of the whole truck is upon request.

IMG_6614(20240408-162237)

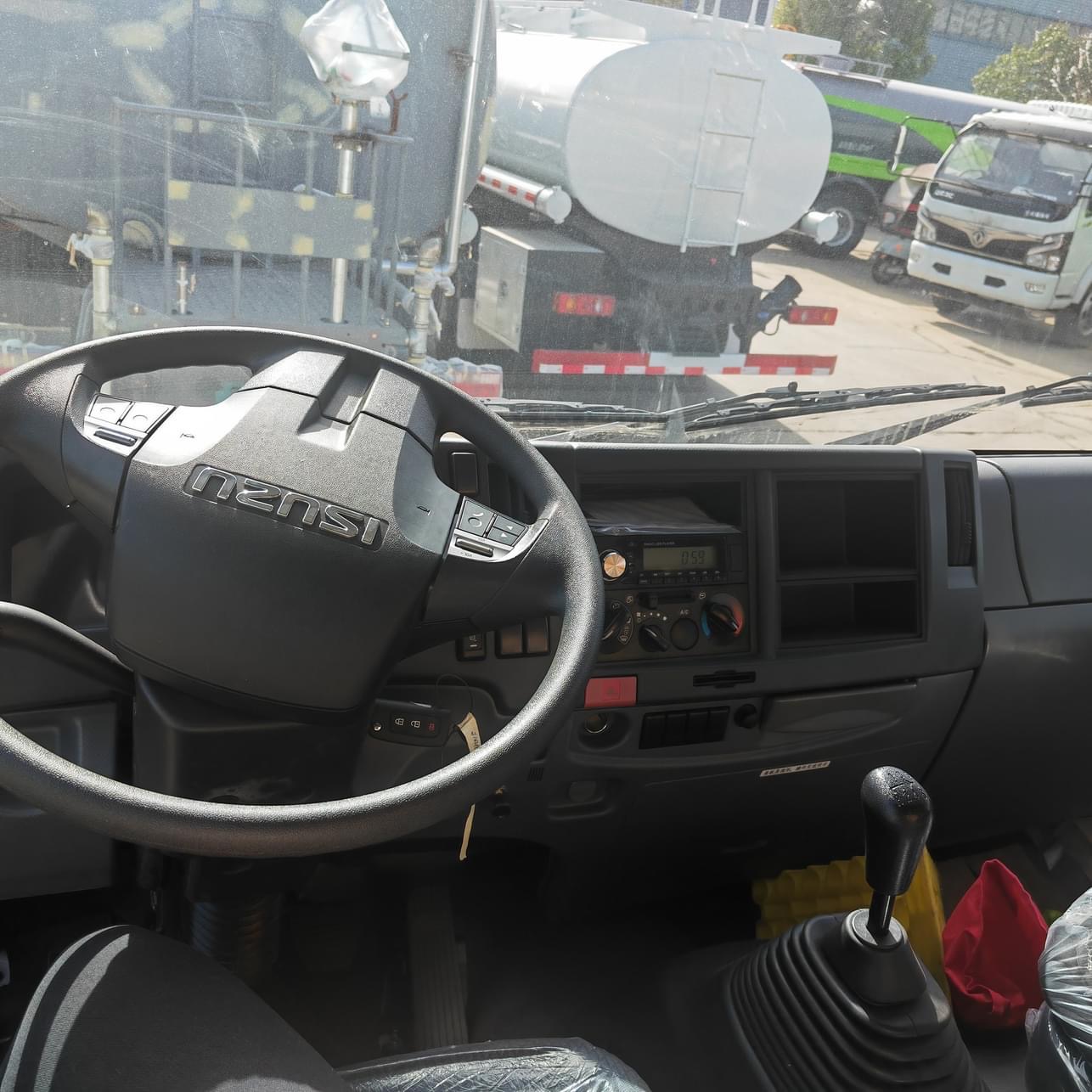

ISUZU GIGA driver cab

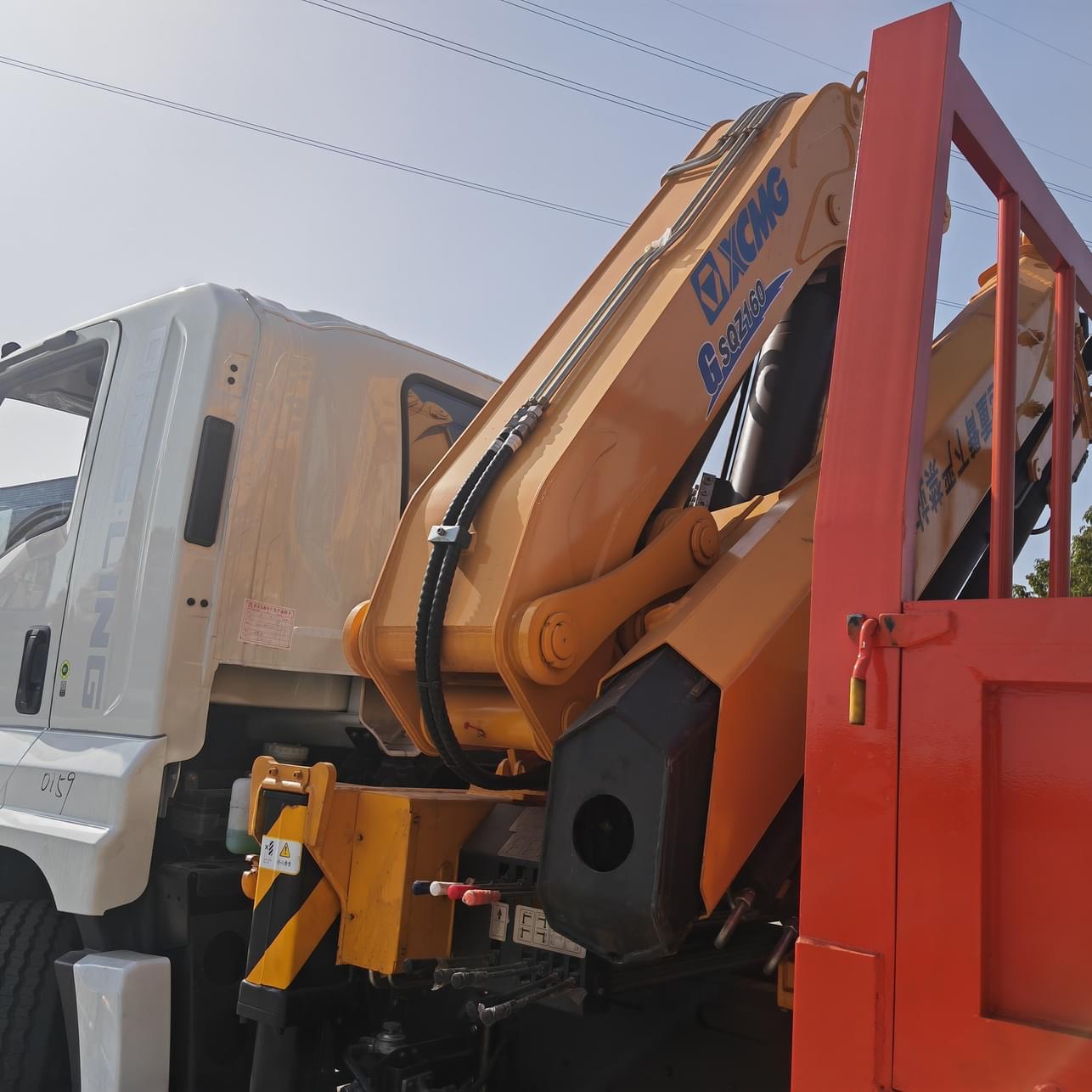

IMG_6618(20240408-162248)XCMG brand knuckle crane boom mounted on cargo truck ISUZU

IMG_6608(20240408-162219)

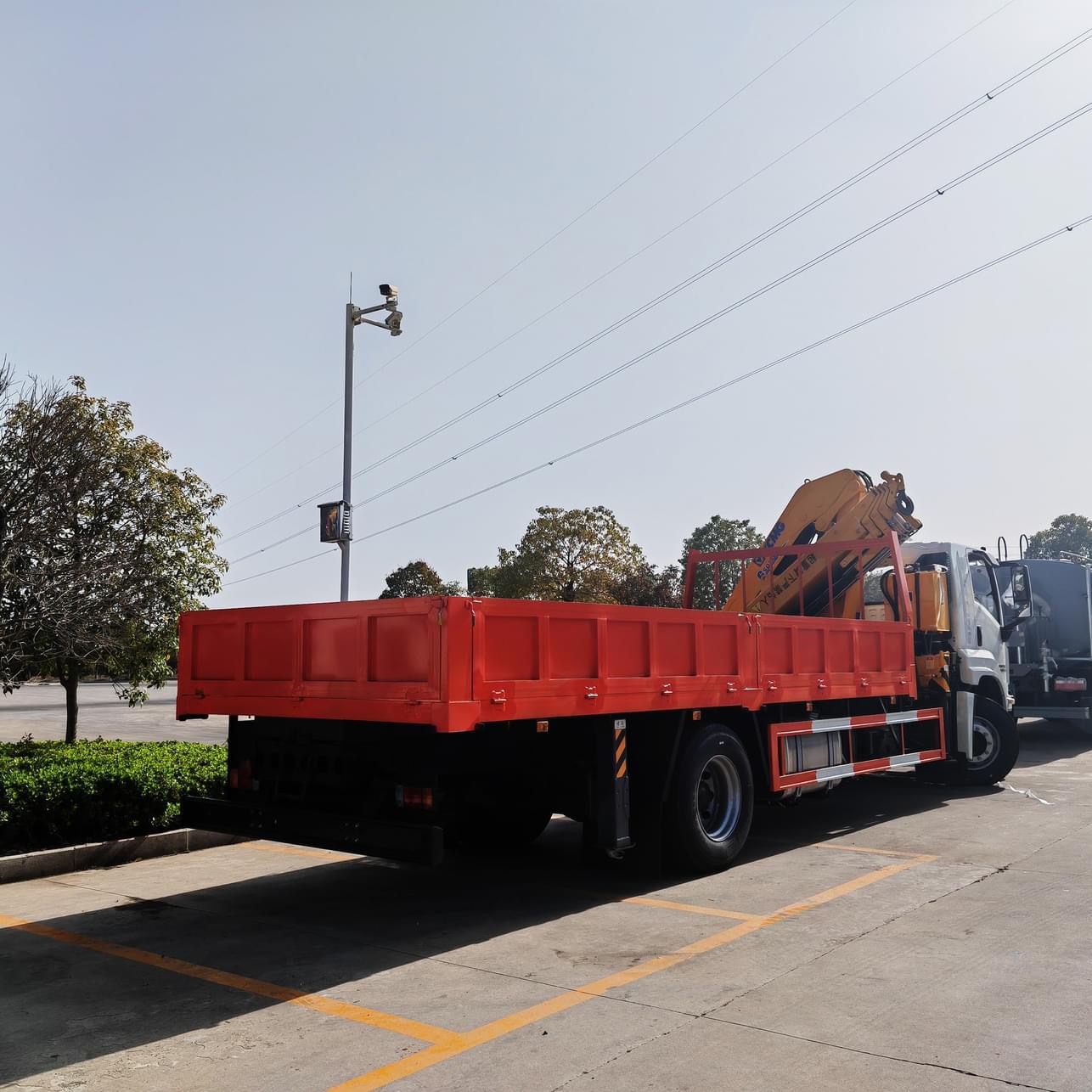

ISUZU GIGA 4*2 LHD truck with crane for sale

The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering

department, plant department,etc.


As a professional cargo truck crane supplier in China, we can manufacture the crane boom is from2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
