Customized ISUZU brand 4*2 LHD 3.2T knuckle crane boom Lorry truck for sale,



HOT SALE!ISUZU KV600 4*2 LHD 3.2T knuckle crane boom mounted on cargo truck for sale

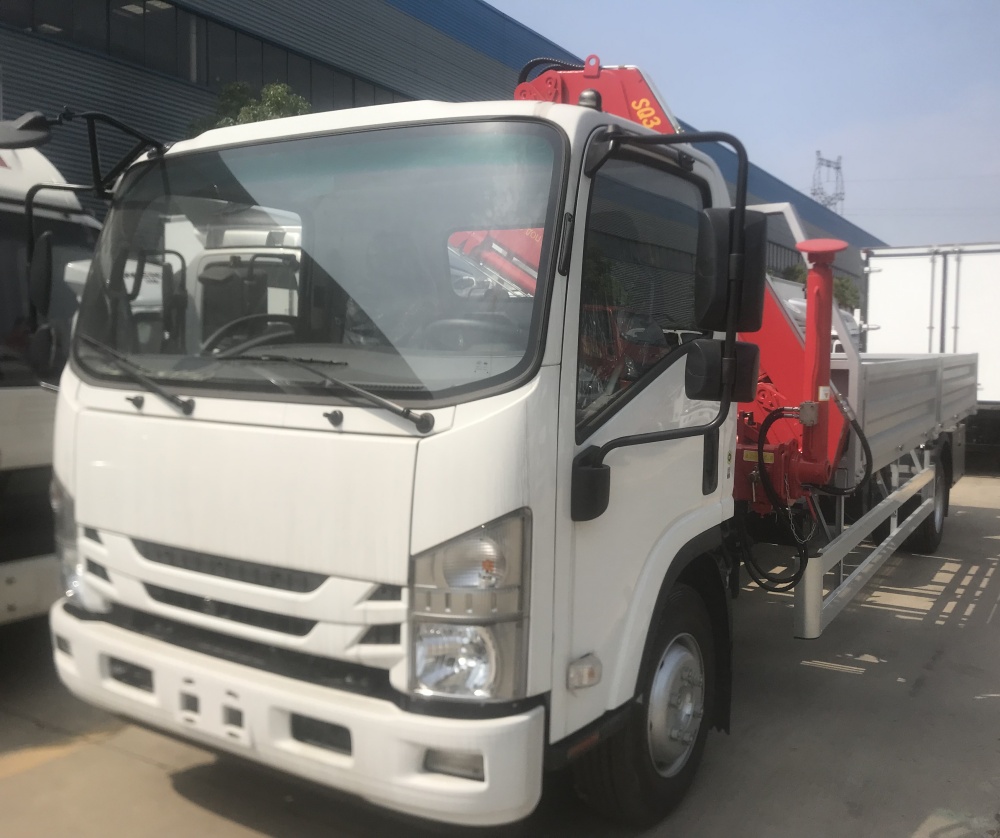

Customized ISUZU KV600 4*2 LHD 3.2T telescopic crane boom mounted on cargo truck, adopts ISUZU 700P single row driver cab with air conditioner + power steering, ISUZU 5 speed manual gearbox, 3tons front axle/5tons rear axle, 4KH1CN6LB ISUZU 120hp diesel Euro Ⅵ engine, 7.00R16 rail tires, etc.



The overall dimension (L*W*H) of ISUZU KV600 4*2 LHD 3.2T cargo truck with crane is 7030×2400×3200 (mm); the dimension(L*W*H) of cargo box body is 4300,4100×2300×550(mm). Client chooses to install XCMG brand/CLW brand 3.2tons knuckle crane boom.



Main technical parameters of ISUZU 2T telescopic crane boom mounted on cargo truck is as below.

Product name	Isuzu brand 3.2T telescopic crane boom mounted on cargo truck for sale
Chassis type	EQ1060
Parameters	Overall dimension length/width/height (mm)	7030×2400×3200
	Cargo body dimension (L*W*H)(mm)	4300,4100×2300×550
	GVW(kg)	8280(Kg)
	Kerb Mass(kg)	4990 (Kg)
	Rated mass(kg)	3095 (Kg)
	Approach angle/ Departure angle(mm)	23/13 (°)
	Front /rear suspension(mm)	1120/2095
	Fuel Type	diesel
	Max Speed	105
Engine	Type	4KH1CN6LB
	Displacement/Power(kw)	2999ml/88KW/120hp
	Manufacturer	ISUZU
Chassis	Drive Type	4×2
	Wheelbase(mm)	3815
	Tread(front/rear)	1640/1655(mm)
	Transmission	ISUZU  5 speed manual gearbox
	Cab	Isuzu 700P single row driver cab
	Number of spring axle(front/rear)	6/6+6
	Tire Type	7.50R16
	Air-condition	Yes, original air conditioner
Upper part(cargo van and crane boom) main parameters
Upper body	Cargo body dimension	4300,4100×2300×550
	Material	Carbon steel
	Side sheet thickness	2mm thickness
	Bottom sheet thickness	3mm thickness
	Painting	Upon request
	Crane boom main parameters
	Crane boom	Choose to install CLW brand 3.2T 2/3 sections knuckle crane boom
	Lifting height	8.8m/10.7
	Working radius	6m/7.6m
	The color of the whole truck is upon request.

Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc.

A crane mounted on a truck carrier provides mobility for this type of crane. This crane has two parts: the carrier, offer referred to as the lower, and the lifting component which includes the boom, referred to as the upper. These are mateed together through a turntable, allowing the ipper to swing from side to side. These modern hydraulic truck cranes are usuallt single-engine nachines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turnable from the pump mounted on the lower. In older model designed of hydraulic truck cranes, there were two engines. One in the lower pulled the cranedown the road and ran a hydraulic pump for the outrrigers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turnable of aging newer design cranes.
