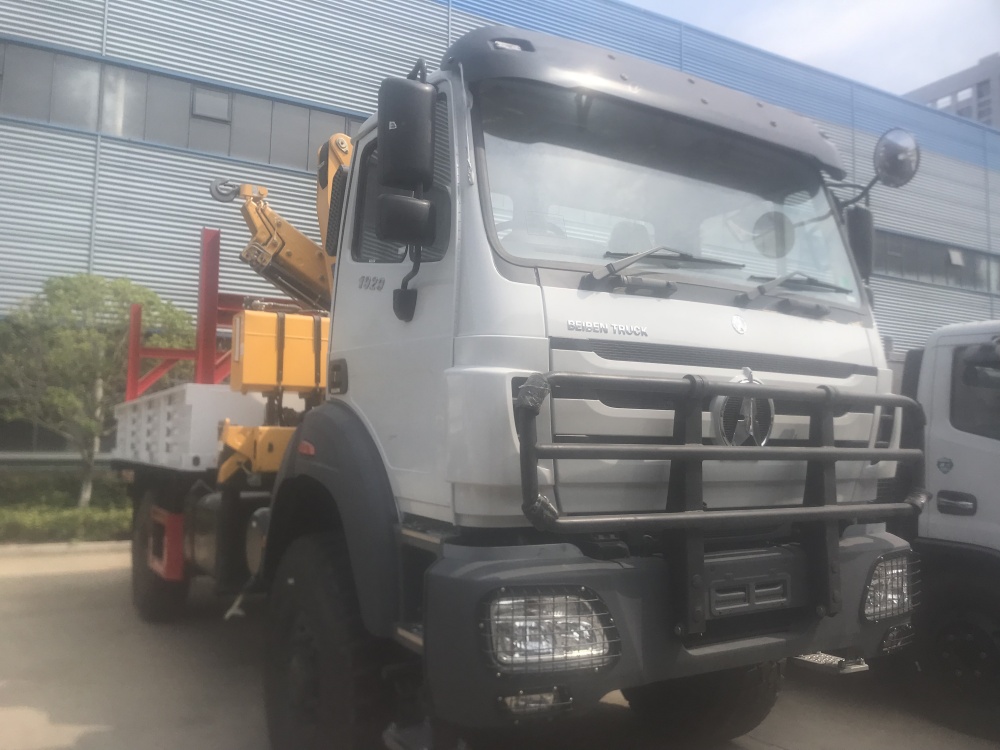

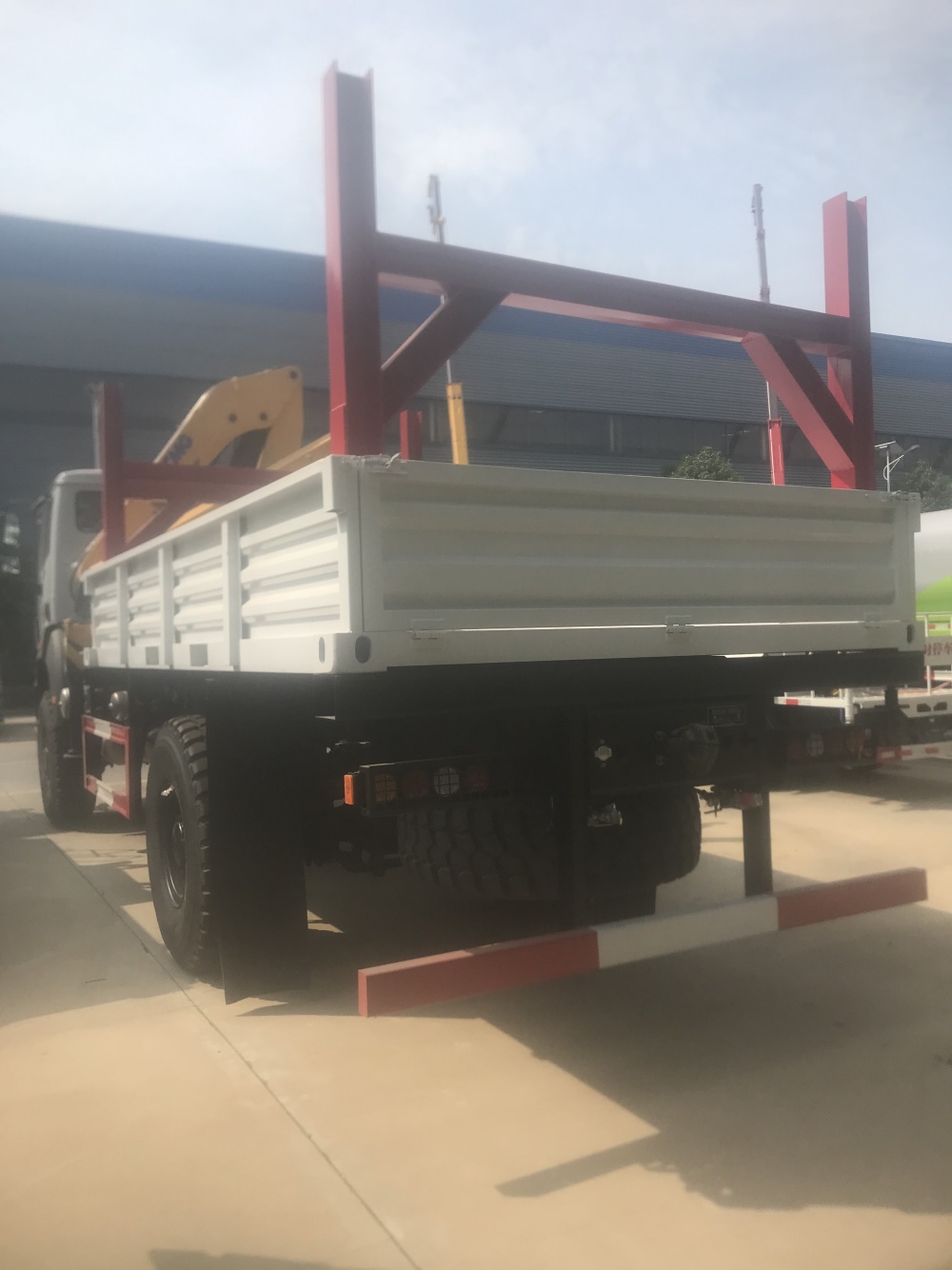

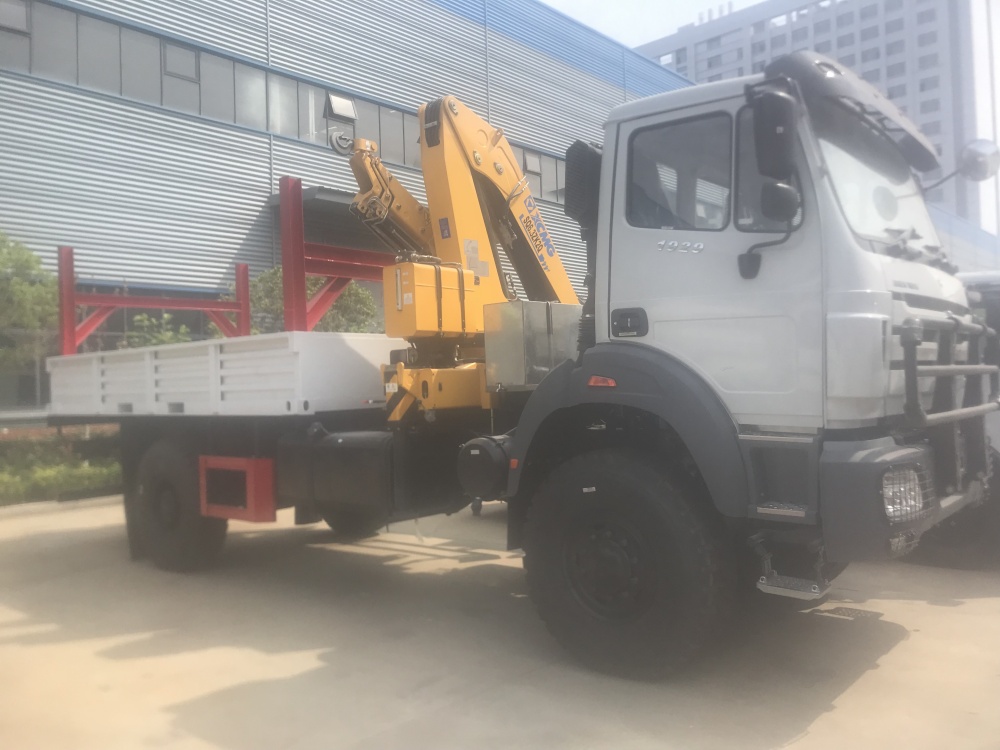

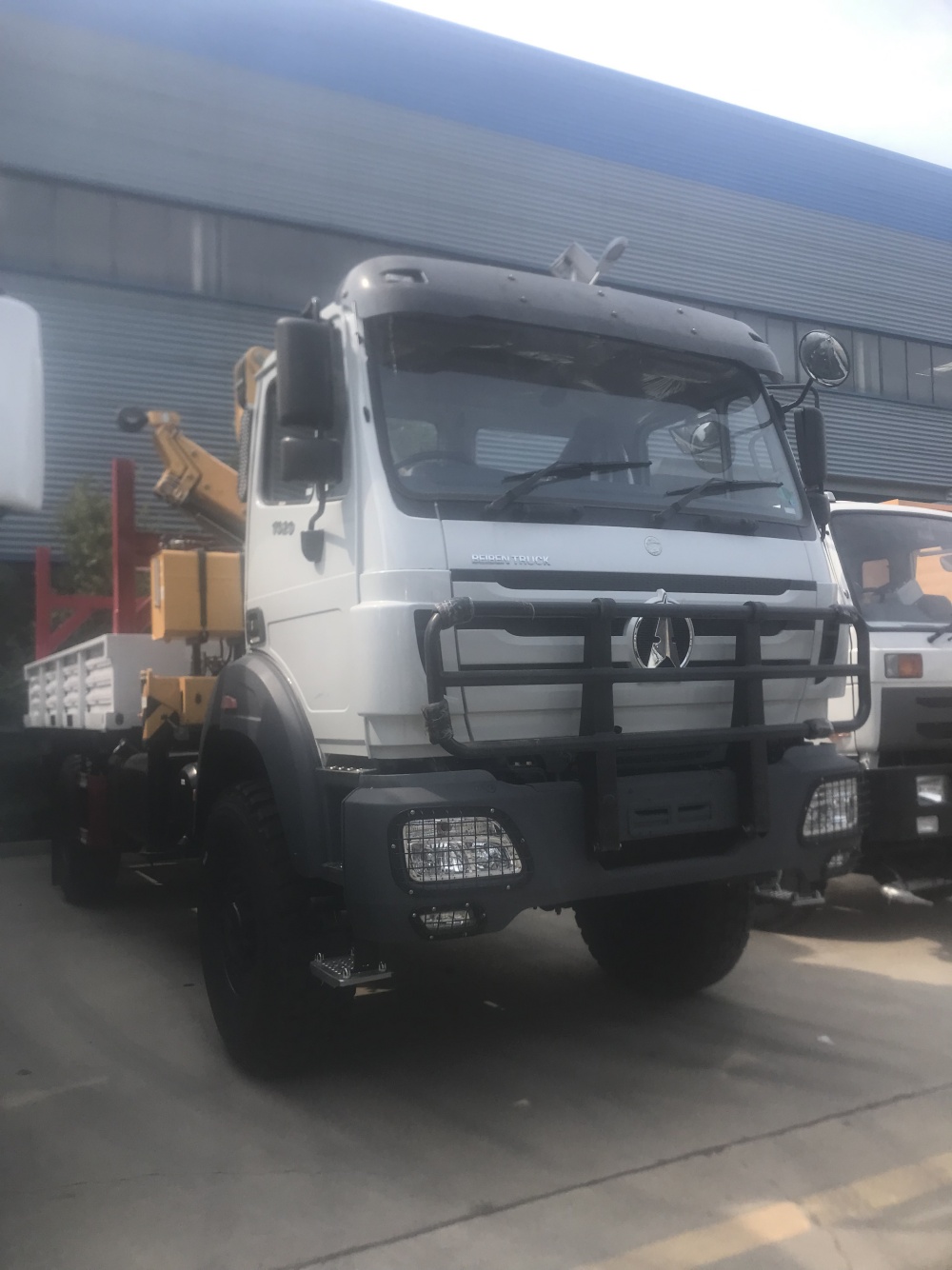

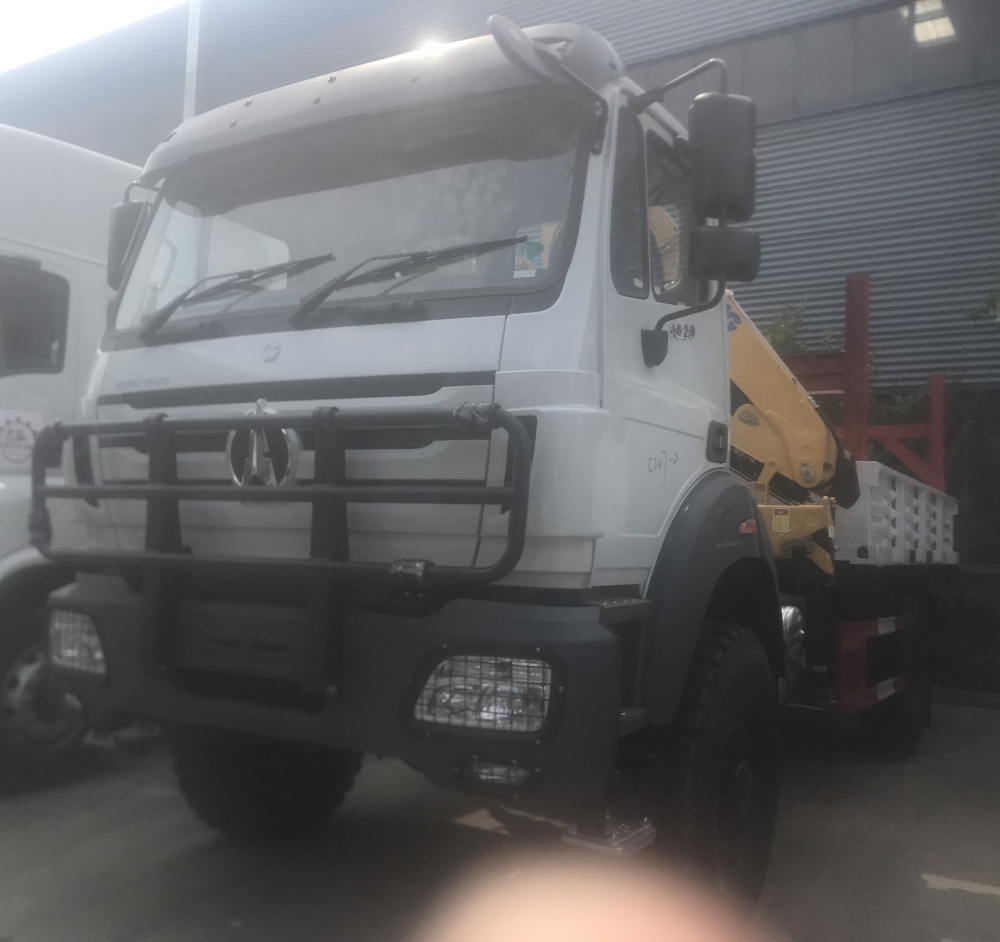

Beiben 4x4 Crane Mounted on Truck Folding Boom Crane Truck Cargo Truck with Crane for transformer and telegraph pole transportation.
This powerful truck is specifically designed for lifting and transporting heavy goods with ease. Equipped with a China well-known brand of 12-ton telescopic boom crane, this truck is perfect for handling a variety of heavy-duty tasks efficiently and safely.
Product Parameters of Beiben 4*4 truck mounted crane for transformer and telegraph pole transportation.
| Vehicle Name | Beiben 4x4 Crane Mounted on Truck Folding Boom Crane Truck Cargo Truck with Crane |
| Chassis brand | Beiben |
| Drive Type | 4x4, LHD (option right-hand drive) |
| Wheelbase | 5100 mm |
| Overall Dimension | 7990x2550x3680 mm |
| Cargo Body Dimension | 5100x2300x550 mm |
| Gross Weight | 16000 kg |
| Curb Weight | 8230 kg |
| Payload Weight | 7575 kg |
| Engine Model | WP10.290 |
| Rated Power | 290 HP |
| Displacement | 9726 cc |
| Type | Diesel, in-line, 6-cylinders, turbocharged water cooled. |
| Gearbox | Manual, 9 speed forward, 1 reverse |
| Front Axle | 7.5-Ton |
| Rear Axle | 13-Ton |
| Superstructure | |
| Crane | SQS125SK |
| Type | Folding boom, 4 arm. |
| Max Lifting Capacity | 5 Ton (can option 6.3ton) |
| Max lifting Height | 11 m |
| Max Working Radius | 8 m |
Rotation | 360° all rotation |
Chengli Special Automobile Co., Ltd. is a professional dump truck with crane manufacturer in China, the dump truck with crane for sale is from 2 ton to 32 ton. The drive type of our dump truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
The truck with crane for sale is also called truck mounted crane,crane truck, truck with crane, etc. The truck with crane for sale is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional truck with crane manufacturer in China, the truck with crane for sale is from 2 ton to 160 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane of truck crane can be xcmg, chengli, sany, etc.
