Customized FAW brand 5000Liters water tanker truck for Africa
One unit of FAW brand 4*2 LHD water tanker truck is finished, which is customized for African clients.

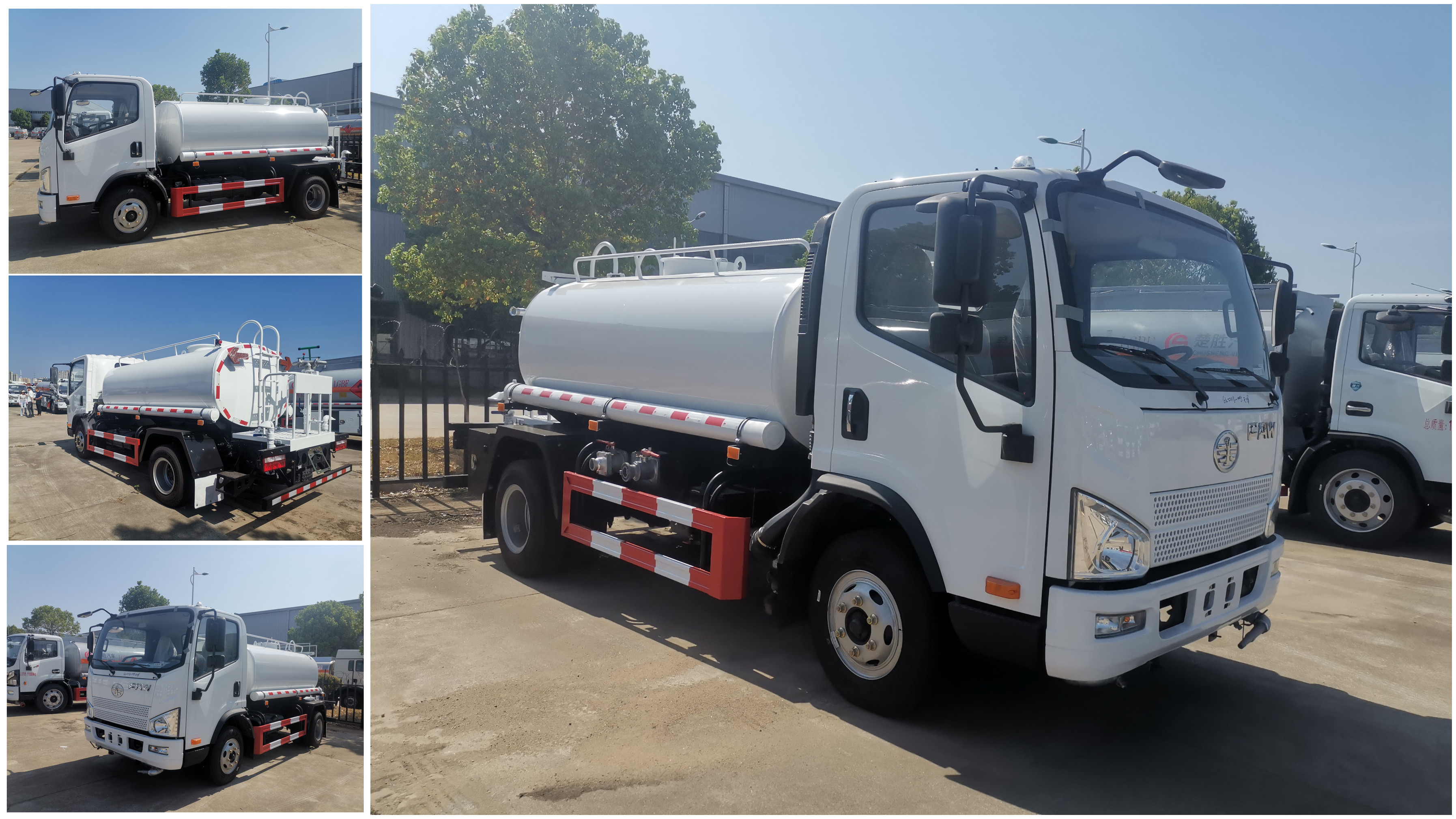

Look at the finished pictures of FAW brand 5cbm water tanker truck is as below.
Customized FAW brand water tanker truck 5KL for sale
FAW water tanker truck adopts faw 4*2 LHD TIGER VH flathead single row driver cab, 3260mm wheelbase, CA498E3-12 dachai 120hp diesel engine, Wanliyang 5 speed manual gearbox, 2.8T front axle/5T rear axle, 7.50R1614rail tires, etc.
HOWO Brand water tanker truck is equipped with front-flushing functions, rear sprinkling, rear working platform with sprinkling gun and 30m spraying range air-assisting mist spraying cannon. And howo water tanker truck is mounted with front-sweeper(two sweepers).
Wheelbase: 3260mm
Engine model: CA498E3-12 dachai 120hp diesel engine
Tanker volume: 5cbm
Sprinkling width≥14（m）
Main technical parameters of spraying mist cannon is as below.
Spraying mist cannon model: CLW-30
Spraying range: ≥30（m）
Generator unit power: 8KW
Fan motor power: 3KW
Driven water pump power: 2.2KW
The specification of FAW 5,000Liters water spraying truck is as below.
| Product name | FAW water tanker spraying truck for sale | ||
| Total mass(Kg) | 7360 | Tanker volume(m3) | 5cbm |
| Rated mass(Kg) | 3870 | Overall dimension(L*W*H)(mm) | 6040×2020×2500(mm) |
| Curb mass(Kg) | 3295 | Driver cab seated person | 2 |
| Approach/departure angle(°) | 20/15 | Front/rear suspension(mm) | 1150/1590(mm) |
| Axle nos. | 2 | Wheelbase (mm) | 3260 |
| Axle load(Kg) | 2640/4720 | Max speed(Km/h) | 110 |
| Truck chassis | |||
| Truck chassis model | CA1075 | Tire nos. | 7.50R16*6+1 spare |
| Steel spring | 3/4+3, | Front tread(mm) | 1510 |
| Fuel type | Diesel; | Rear tread(mm) | 1475 |
| Emission standard | Euro Ⅲ | ||
| Engine model | Manufacturer | displacement(ml) | Power (Kw) |
| CA498E3-12 | Dachai | 3168 | 90 |
| Tanker | The volume of the tanker is 5000Liters, adopts high quality 4mm thickness carbon steel with One roll molding, completely seamless. There are several reinforce anti-wave sheets inside the tanker to reduce the impact of water inside the tank and increase stiffness. | ||
| Special devices | The rear part of the truck is with working platform installed with water spraying gun of full rotation and mist cannon special for dust suppression of 180 °rotating. The mist cannon is with 8KW diesel generator unit ; the cannon is with the fog spraying effect and the practical Horizontal remote spraying range up to 30m. The function of water spraying truck: front-flushing and rear sprinkling, side spraying, platform high-altitude spraying gun, special water pump for controlling water sprinkling system; with the function of Pumping and drainage, filter installed, fire-fighting interface inletting water by hydrant, self-discharging valve, etc. | ||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of water truck, water tank, water sprinkling truck and portable water truck, etc. in China since 2004s. With many years' experience in manufacturing, Chengli Special Automobile Co., Ltd. could supply 4*2 water truck, 4*4 water tank, 6*4 water truck, 8*4 water tank, 6*6 water tank, etc. And the water trucks brands includes dongfeng water truck, ISUZU water truck, FAW water tank, Foton water truck, Forland mini water truck, Yuejin water truck, HOWO water truck, North Benz water truck, etc. More information, please feel free to contact with Ms. Anita Deng. And the hot sale line is 0086 13329899995.
