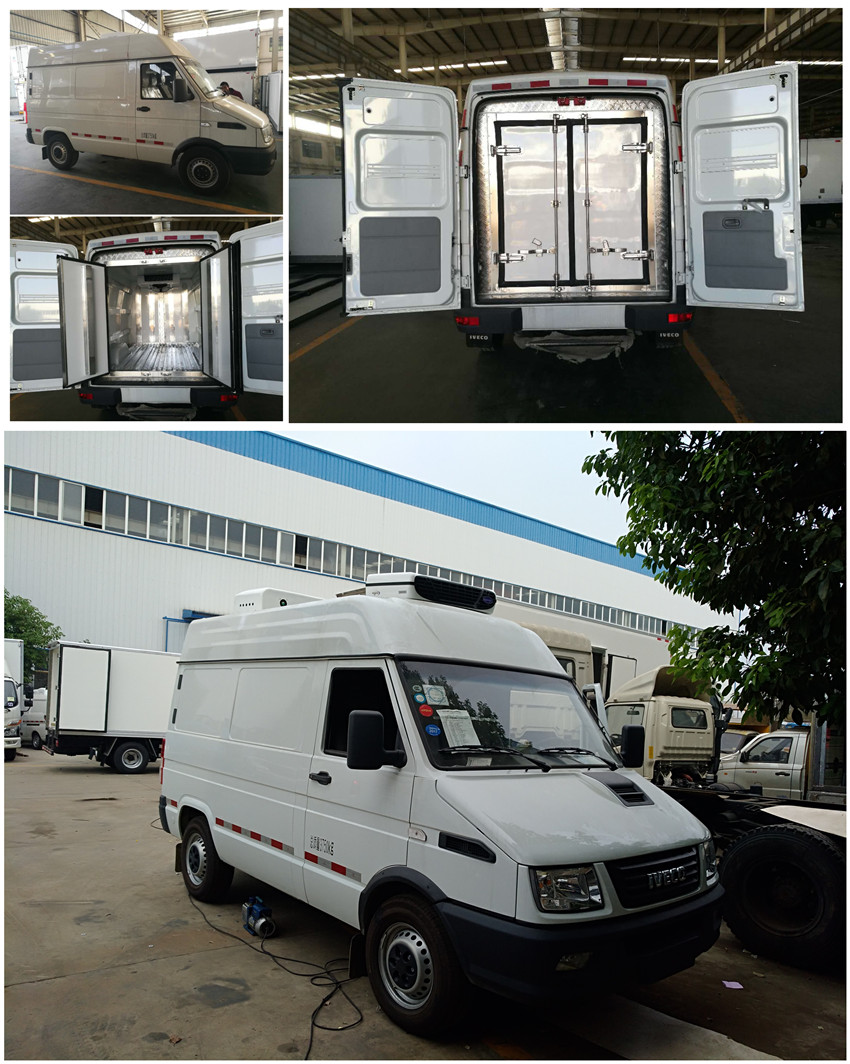

IVECO refrigerator minibus customized finished, ready for shipping
High quality IVECO refrigerator minivan adopts IVECO minibus original truck chassis, V35 Turbo Daily series, single row 4*2 LHD, rear double tires, ABS, 70Liters oil tank, double rear doors, cold room with false window, 110A motor, electronic window of the driver cab, 4KW original air conditioner, 215R16LT tires, IVECO 2826.5 gearbox,
The cold room box dimension (l*W*H): 2100*1580*1480(mm), the overall dimension (L*W*H): 4850*2000*2735(mm). The insulation box body adopts high quality FRP, 80mm thickness PU foam for the middle insulation layer; And the cooling reefer can choose China-made or imported brand from -15℃ to -20℃.
The model of IVECO refrigerator truck is with high quality and cheaper price, wide useful. Usually with the loading capacity of 5tons goods,
The truck model of IVECO refrigerator minivan is CLW5040XLCN5 refrigerator minibus, truck chassis of NJ5045XXYQA，engine model: SOFIM8140.43S5，95KW/130hp diesel engine, Iveco 5 speed gearbox, 215/75R16LT tires, etc.
customized IVECO diesel refrigerator minivan bus for sale
Main technical parameters of IVECO brand refrigerator minivan as below
| Vehicle name | Refrigerator minibus | ||
| Truck model | CLW5040XLCN5 | Total mass | 3750(Kg) |
| Rated mass | 1165(Kg) | Curb mass | 2390(Kg) |
| Overall dimension(L*W*H) | 4850×2000×2735(mm) | Cold room box dimension(L*W*H) | 2100×1580×1480(mm) |
| Driver cab person | 3 | wheelbase | 2800(mm) |
| Approach/departure angle | 21/14.5(°) | Front/rear suspension | 960/1090(mm) |
| Axle nos. | 2 | Max speed | 80,100,125(km/h) |
| Truck chassis main parameters | |||
| Truck chassis | NJ5045XXYQA | Manufacturer | IVECO AUTOMOBILE |
| Tire specification | 215/75R16LT | Steel spring | -/6 |
| Front tread(mm) | 1721,1740 | Rear tread | 1692,1704 |
| Emission standard | Euro Ⅴ | ||
| Fuel type | Diesel | Oil consumption(Liters/100km) | 12.38 |
| Engine model | Manufacturer | displacement(ml) | Power (kw) |
| SOFIM8140.43S5 | IVECO | 2798 | 95 |
CLW brand refrigerated trucks, adopts the interior and exterior can be chosen the popular glass steel material, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 8mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
More information, please feel free to contact with Ms. Anita.The hot sale line is 0086 13329899995.
