HOT SALE! DONGFENG 4*2 RHD 12-14m3 garbage compactor truck
Customized dongfeng 4*2 RHD garbage compactor truck, dongfeng original truck chassis, 4500mm/4700wheelbase, B190 33 diesel engine, fastgear 8 speed gearbox, 10.00R20 tires, etc.
And the volume of the waste van is 12cbm-14cbm, adopting high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way of compacted garbage truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1, PLC control system;
2, loading and discharging way: rear loading wastes bins mechanism;
3, compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; 4, one working circle time for loading and discharging ≤30s;
5, max compressing force≥150KN; max passing force≥180KN.
Main technical parameters of dongfeng RHD 12m3-14m3 garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| 1 | Product name | Dongfeng 4*2 RHD 12m3/14m3 compacted garbage truck for sale |
| 2 | Overall dimension(L*W*H) | 8700*2500*3300mm |
| 3 | Total mass | 16000kgs |
| 4 | Curb mass | 9470kgs |
| 5 | Rated mass | 6335kgs |
| 6 7 | Truck chassis | DFL |
| 8 | Engine model | B190 33 |
| 9 | Engine power/displacement | 140KW/5900cc |
| 10 | Oil consumption | 18L/100km |
| 11 | Max speed | 90kw/h |
| 12 | mini turning diameter | 18m |
| 13 | Max gradability | 25﹪ |
| 14 | wheelbase | 4500/4700（mm） |
| 15 | Volume | 12/14m3 |
| 16 | Tire specification | 10.00R20 tires |
| 17 | Gearbox | 8 speed gearbox |
| 18 | Air conditioner | Yes |
| 19 | Fuel type | Diesel |
| 20 | Wastes hopper lifting angle | ≥45° |
| 21 | Loading and discharging way | Overturning hopper/wastes bins mechanism |
| 22 | Compacting way | Bi-directional compression, wastes compacting density≥0.8tons/m3 |
| 23 | One working circle time for loading(s) | ≤22 |
| 24 | One working circle time for discharging(s) | ≤30 |
| 25 | Overall dimension(L*W*H) | 8700*2500*3300mm |
| 26 | Max compressing force | ≥150KN |
| 27 | max pushing force | ≥180KN |

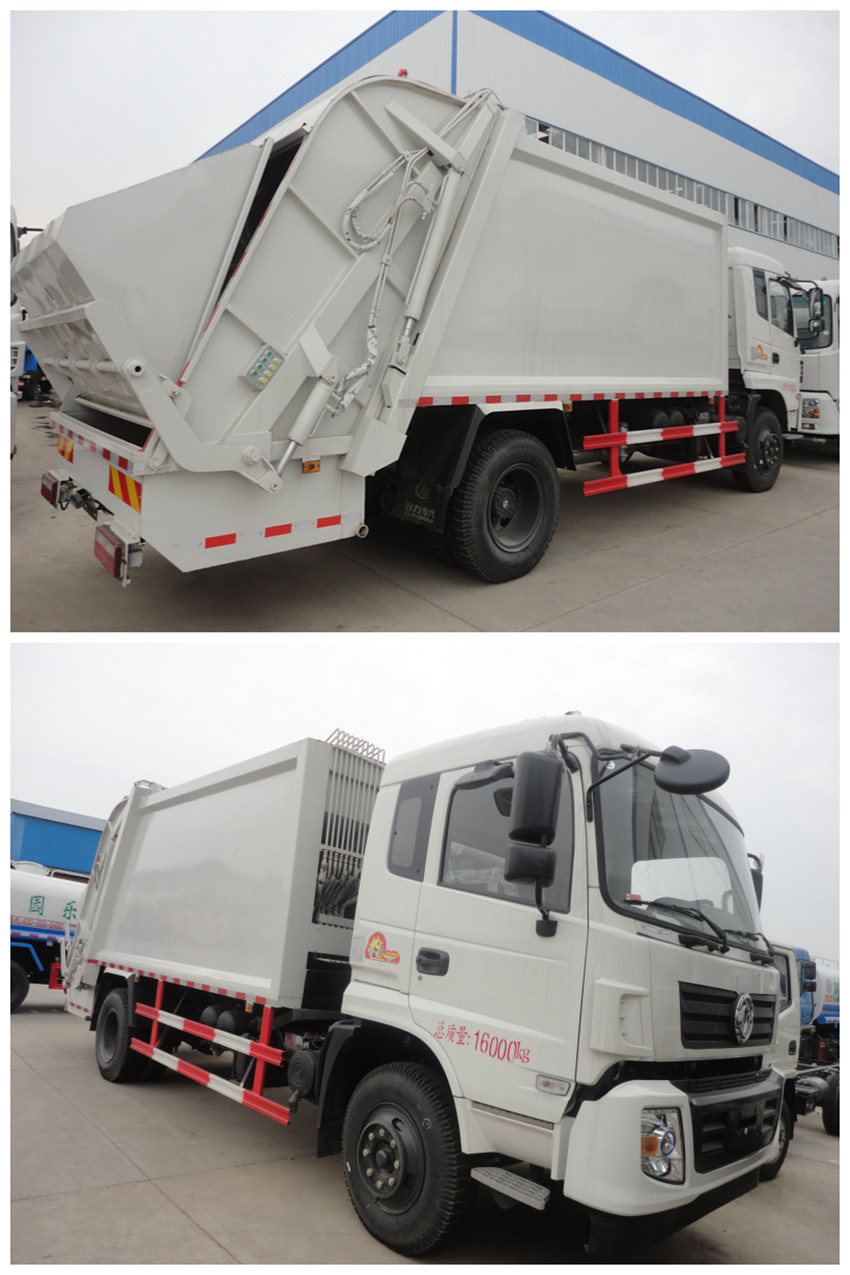

More pictures of hot sale dongfeng RHD garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
customized dongfeng 4*2 RHD garbage compactor truck with the volume of 12m3-14m3 for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of garbage trucks in China since 2004s. With many years' experience in developing, Chengli Special Automobile Co., Ltd. could supply garbage compactor truck, refuse garbage truck, swing arm garbage truck, skid loader garbage truck, side loader garbage truck, sealed garbage truck, dump garbage truck, etc. More information, please feel free to contact Ms. Anita Deng. The hot sale is 0086 13329899995.
