Dongfeng tianlong 4*2 LHD 18m3 fuel tank truck customized for clients Fuel tank tank mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage. Chengli special automobile co.,ltd. ,which is a famous manufacturer producing all kinds of special trucks.it can offer many kinds of oil tank trucks from 2000 liters to 40000 liters. Such as oil tank truck, fuel tanker truck, heavy oil tank truck, fuel oil tank truck,liquid tanker truck, gallon fuel tank truck,diesel oil tank truck,oil transportation tank truck,fuel tank cap truck, etc. And also support Customized. Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of fuel tank in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply Dongfeng fuel tank, ISUZU refueler truck, HOWO oil truck, Forland fuel dispenser truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
Today, we will introudce hot sale dongfeng tianjin 18,000Liters fuel tank truck manufactured by Chengli Special Automobile Co., Ltd. as below.

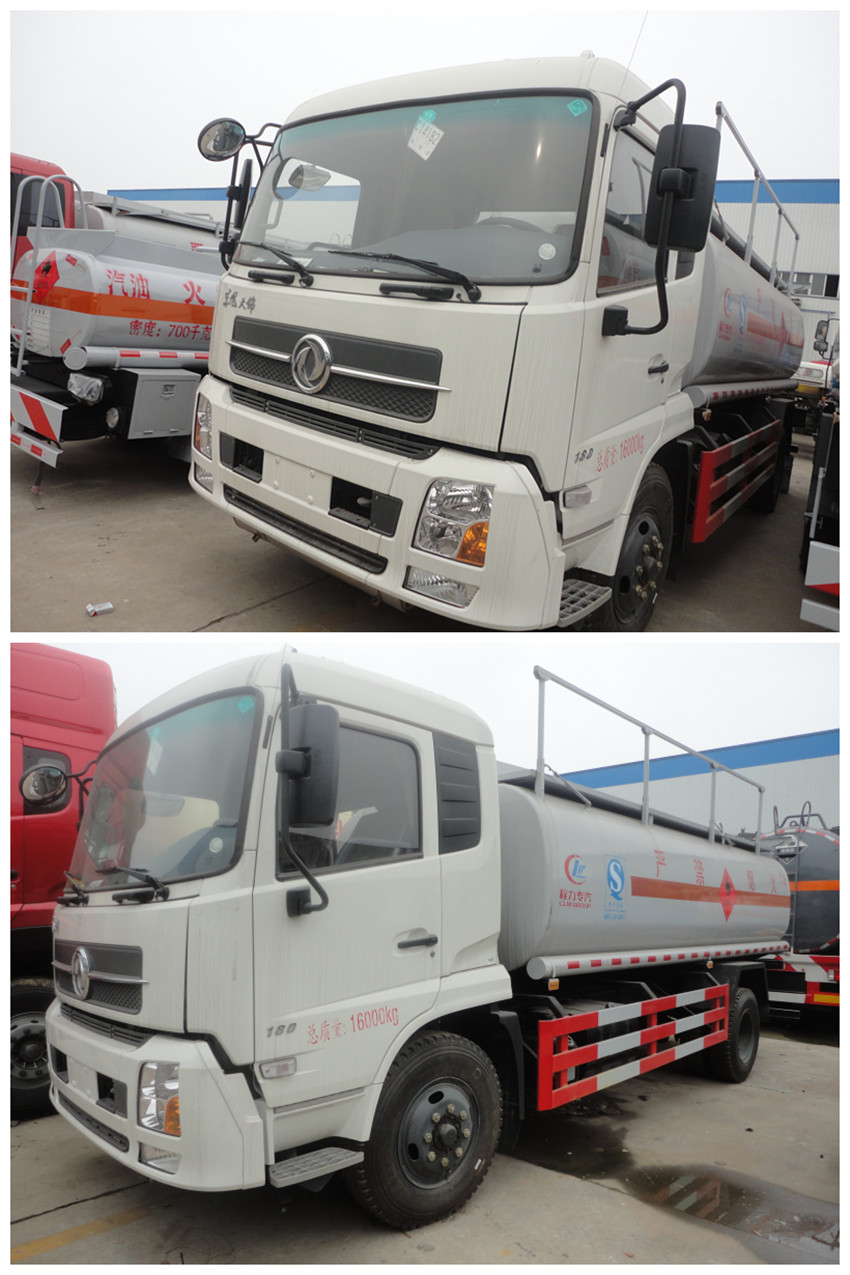

Customized dongfeng 18m3 oil tank truck for sale
high quality and competitive price dongfeng 190hp fuel tank truck for sale
main technical parameters of dongfeng tianjin 4*2 LHD 190hp 18cbm fuel tank truck manufactured by Chengli Special Automobile Co., Ltd. as below
Dongfeng Tianjin 4*2 LHD/RHD 190hp 18cbm oil tank delivery truck for sale | |||
Total mass(kg) | 16000 | Tank volume | 18,000L |
Rated mass(kg) | 9500 | Overall dimension(L*W*H)(mm) | 9000*2450*3200 |
Curb mass(kg) | 6305 | Cargo body dimension | XX |
Driver cab person | 3 | Max speed(km/h) | 80 |
Approach/departure angle | 18/10; 18/9 | Front/rear suspension(mm) | 1430/2570; 1430/2870 |
Axle nos. | 2 | wheelbase | 4700; 5000 |
Axle load(kg) | 6000/10000 | Driver cab | Dongfeng Tianjin luxurious driver cab |
Chassis main parameters | |||
Chassis model | DFL1160 | Manufacturer | Dongfeng |
Transmission | 6 speed manual gearbox | Tyre specification | 6*9.00-20 |
Steel spring | 7/9+6;8/10+8 | Front tread(mm) | 1880/1800; 1860 |
Fuel type | Diesel | Rear tread(mm) | 1800,1860 |
Traction system | 4*2 | Operation control system | Steering wheel |
Braking system | Air braking | Electric system | 24 V |
Emission standard | Euro 3 | ||
Engine model | Manufacturer | Displacement | Power |
B190 33 | Cummins | 5900ml | 140KW |
Standard equipments | 1. The fuel tanker shape is ellipse, adopts high quality stainless steel material, with one compartment and several anti-wave sheets. And the tanker volume is 18,000L. 2, stainless steel fuel pump, pump-out and pump-in. 3, One Euro standard stainless steel manhole (clients choose stainless steel manhole). 4, one stainless steel bottom subway valve (also called pneumatic emergency short-off valve). 5, single compartment with several anti-wave sheets. 6, top mounted anti-slip walkway and elevating guardrail, 7, rear part of the fuel tank with ladder | ||
Others | Clients choose to install one set of bottom loading system, loading diesel/fuel/oil from the bottom. Otherwise loading the fuel from the top manhole. Choose to install fuel dispenser |
