35 units of dongfeng sewer and jetting trucks for export
1.Dongfeng famouse chassis high pressure sewer flushing vehicle
2.4-6m3 high quality high pressure sewer flushing vehicle
3.low price factory supply dongfeng high pressure jetting truck
4.pass ISO&3C certificate high-pressure sewer flushing vehicle
5.5mm high quality steel material, equipped with Italian high pressure pump
6.with 4.6m3 clean water tank and 6.5m3 sewage tank truck
Main technical parameters of vacuum jetting truck as below
| Item | unit | parameter | ||
| Vehicle model | High Pressure Jetting Truck | |||
| Chassis model | EQ1168GLJ3 | |||
| Overall dimensions | mm | 7980×2490×3380 | ||
| Fact cubage | M3 | 4.6 / 6.5 | ||
| Mass in working order | kg | Appro×7805 | ||
| Body internal dimensions | mm | 2100×1700 | ||
| Wheel base | 4500 / 4700 | |||
| F/R track base | 1900 /1800 | |||
| Approach/departure angle | ° | 30 /16 | ||
| Exhaust/kw | ml/kw | 5900 / 132 | ||
| Max speed | km/h | 90 | ||
| Tire specification | 10.00-20 | Engine type | ISB180 40 | |
| Traction system | 4x2 | transmission | 6-speed with over drive | |
| Number of axles | 2 | Electric system | 24v | |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
| Material and Equipment | 5mm high quality steel; Italian high pressure pump; 60meter high pressure pipe;10 high pressure punch; pressure gage; hand washing device | |||
| Engine | Dongfeng Cummins Engine Co.Ltd | |||
| Production cycle | 15-20 days | |||
| Warranty | 12 month, from the date of supply | |||
| FOB Shanghai | USD | |||

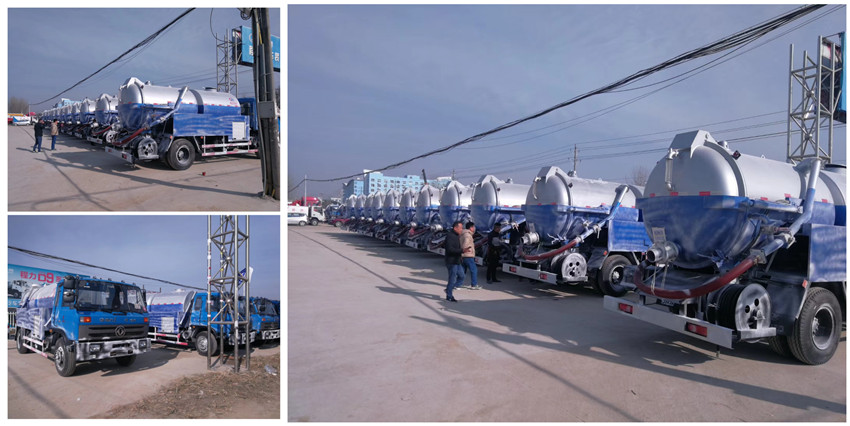

More pictures of dongfeng sewer and jetting truck for sale
HOT SALE! high quality and good price dongfeng sewer and jetting truck for sale
customized dongfeng vacuum and jetting trucks for export
High pressure sewer jetting vehicle with the common device are, the sewer tanker adopts high quality 5mm carbon steel, Italian imported pump, 60m high pressure pipe with the diameter of 19mm, ten units of sprayers with discharge valve, view window, pressure gauge and hand cleaning device, etc.
High pressure pump parameters, VX-B130-160: 16MPA 125L/MIN (Italian)
3N2-S: 24MPA 170L/MIN( China-made)
The wheelbase and the volumes are for your reference. We could design the tanker volumes according to customer’ requirement. However, we should know the chassis dimension first, and then offer the accurate tanker dimension.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sewage suction truck, sludge tanker truck, sewer sucking truck, vacuum truck, fecal suction truck, feces-absorb vehicle, sewer and cleaning vehicle, sewer cleaning and dredging truck, etc.With many years' experience in manufacturing and selling, Chengli Special Automobile Co., Ltd. could designed and produced high quality and competitive price multipurpose sewer tanker vehicles according to customers' requirements.More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13886878855.
1.Dongfeng famouse chassis high pressure sewer flushing vehicle
2.4-6m3 high quality high pressure sewer flushing vehicle
3.low price factory supply dongfeng high pressure jetting truck
4.pass ISO&3C certificate high-pressure sewer flushing vehicle
5.5mm high quality steel material, equipped with Italian high pressure pump
6.with 4.6m3 clean water tank and 6.5m3 sewage tank truck
Main technical parameters of vacuum jetting truck as below
| Item | unit | parameter | ||
| Vehicle model | High Pressure Jetting Truck | |||
| Chassis model | EQ1168GLJ3 | |||
| Overall dimensions | mm | 7980×2490×3380 | ||
| Fact cubage | M3 | 4.6 / 6.5 | ||
| Mass in working order | kg | Appro×7805 | ||
| Body internal dimensions | mm | 2100×1700 | ||
| Wheel base | 4500 / 4700 | |||
| F/R track base | 1900 /1800 | |||
| Approach/departure angle | ° | 30 /16 | ||
| Exhaust/kw | ml/kw | 5900 / 132 | ||
| Max speed | km/h | 90 | ||
| Tire specification | 10.00-20 | Engine type | ISB180 40 | |
| Traction system | 4x2 | transmission | 6-speed with over drive | |
| Number of axles | 2 | Electric system | 24v | |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
| Material and Equipment | 5mm high quality steel; Italian high pressure pump; 60meter high pressure pipe;10 high pressure punch; pressure gage; hand washing device | |||
| Engine | Dongfeng Cummins Engine Co.Ltd | |||
| Production cycle | 15-20 days | |||
| Warranty | 12 month, from the date of supply | |||
| FOB Shanghai | USD | |||
High pressure sewer jetting vehicle with the common device are, the sewer tanker adopts high quality 5mm carbon steel, Italian imported pump, 60m high pressure pipe with the diameter of 19mm, ten units of sprayers with discharge valve, view window, pressure gauge and hand cleaning device, etc.
High pressure pump parameters, VX-B130-160: 16MPA 125L/MIN (Italian)
3N2-S: 24MPA 170L/MIN( China-made)
The wheelbase and the volumes are for your reference. We could design the tanker volumes according to customer’ requirement. However, we should know the chassis dimension first, and then offer the accurate tanker dimension.
