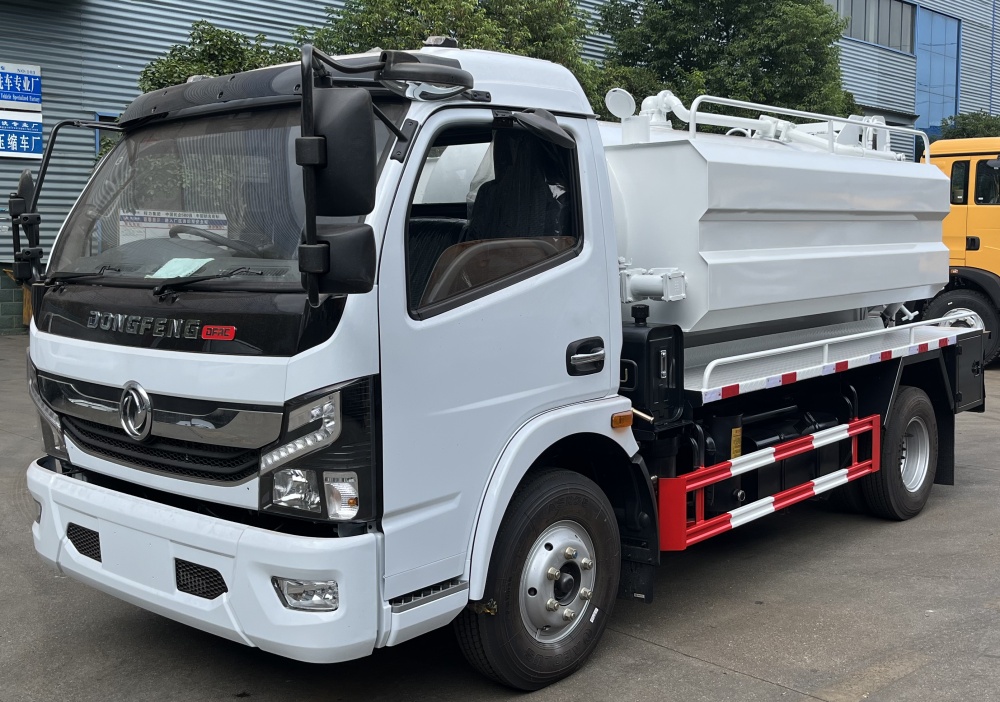

More pictures of dongfeng small combination jetting & vacuum truck as below
High quality and competitive price Dongfeng jetting and vacuum truck for sale
main technical parameters of dongfeng combination jetting & vacuum truck as below
|
Combination jetting & vacuum truck |
|||
| Total mass(kg) | 7360 | Curb mass(kg) | 4930 |
| Rated mass(kg) | 2300 | Chassis | EQ1070SJ3BDF |
| Driver cab seated person | 2 | Axles nos. | 2 |
| Approach/departure angle(°) | 20/10 | Front/rear axle | 1040/1852 |
| Overall dimension(L*W*H)(mm) | 6200X2030X2220,2160 | Max speed(km/h) | 99 |
| Tires specification | 7.00R16 | Tires nos. | 6 |
| Front tread(mm) | 1503 | Rear tread(mm) | 1494 |
| Wheelbase(mm) | 3308 | Steel spring | 6/6+5 |
| Emission standard | Euro Ⅴ, | Fuel type | Diesel |
| Engine model | Manufacturer | Displacement(ml) | Rated power |
| CY4BK551 | Chaochai | 3707 | 75 |
| Remark |
The vacuum tank volume: 3m3 Transported medium: liquid sewer Density: 800kg/m3 Tank dimension(L*Diameter): 3100*1200(mm)。 |
||
| delivery time | 20days | ||
1,Dongfeng Euro 5 D6 truck chassis, 3308mm wheelbase, single row driver cab, chaochai CY4BK551 102hp diesel engine, 5 speed gearbox, 1.8tons front axle/3.5tons rear axle, 7.00R16 tires, power steering, air cut brake, clutch booster, ABS, etc.
2, the upper parts is made up of two parts,
A, one is high pressure cleaning functions surrounded by half a type van with the volume of 1.5m3, around the vacuum tank. It is adopting the PTO to drive the high pressure pump, equipped with Italian HPP imported high pressure pump, ESL122/130, pressure: 16MPA, flow: 130L/min, with 60m lengthφ19 high pressure hose and automatic reel, 10 sets of different functions high pressure nozzles.
B, vacuum function: the vacuum tank volume: 4.2m3, with view-window, self-discharging mouth,1 set of 7m length sucking sewer, equipped SK-6 water-ring type vacuum sewer pump with the vertical sucking distance of 8m and horizontal sucking distance of 60m, The vacuum tank is lifting and tipping, self-sucking and self-discharging, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sewage suction truck, sludge tanker truck, sewer sucking truck, vacuum truck, fecal suction truck, feces-absorb vehicle, sewer and cleaning vehicle, sewer cleaning and dredging truck, etc.With many years' experience in manufacturing and selling, Chengli Special Automobile Co., Ltd. could designed and produced high quality and competitive price multipurpose sewer tanker vehicles according to customers' requirements.
Meanwhile, the sewer cleaning and dredging truck is also can suck the sewage, dredge, gravel, slurry and other bock which blocked the sewer, drainage, pipeline,etc.
The high pressure sewer cleaning and dredging truck is consists of sandwich power-take-off, clean water tank, sewage tank, high pressure water pump, vacuum pump,valves, pipeline systems, hose reel, etc. You also can add some sprinkler for road spraying.
As a professional special vehicle manufacturer in China, the high pressure flushing truck we manufacture is with many advantages.Such as light curb, high efficiency, etc.
More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13886878855.
