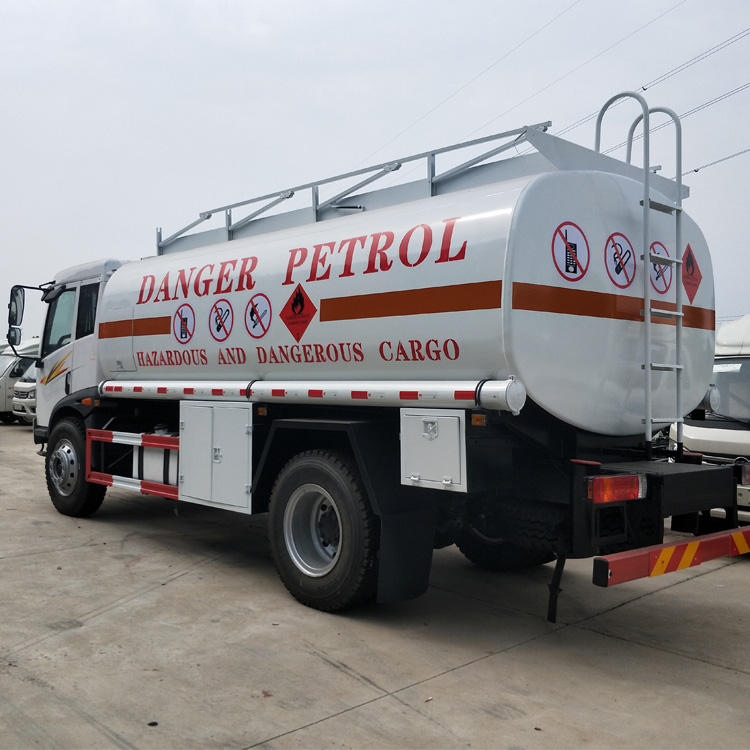

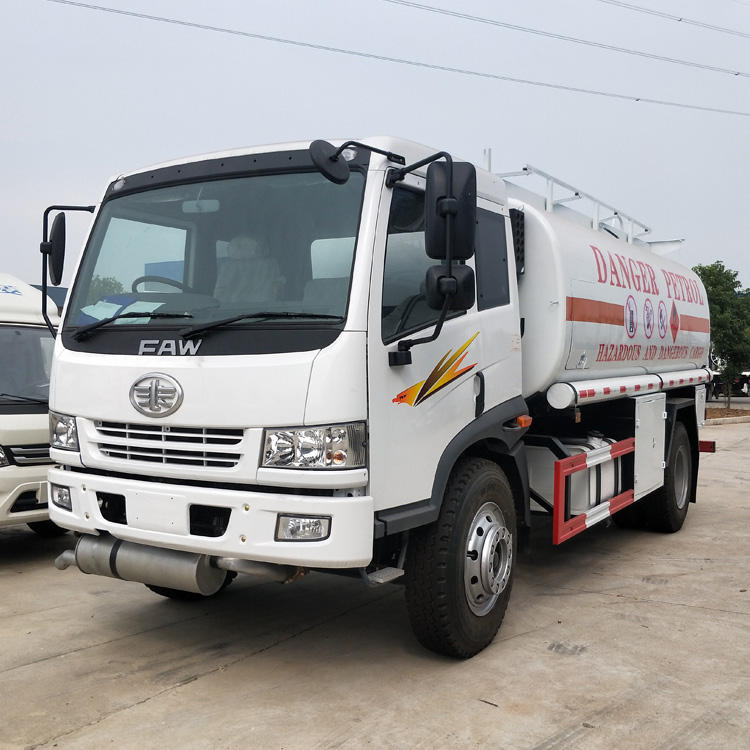

Customized FAW 4*2 210hp diesel 15,000Liters fuel petrol oil tanker truck for sale
The fuel tanker truck is also called fuel dispenser truck, fuel filling truck, fuel truck, oil tanker, oil tank truck, oil transportation truck, etc. The oil delivery truck is mainly used to transport oil, fuel, gasoline, diesel, etc. It can be equipped refueling machine and fuel pump to refuel for other automobile.
The shape of the fuel truck tank is elliptical or rectangular and the material can be high quality carbon steel plate Q235, stainless steel or aluminium alloy. Whole tank was divided into two compartments or more compartments with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.
In order to prevent corrosion, the surface of the oil truck tank was printed anticorrosive paint and decorative paint. The middle side of the tank was equipped indicator which can indicate the filled oil volume when pump oil.
As a professional oil truck manufacturer, the oil tanker truck for sale is from 5000 liters to 45000 liters. They are from 4*2 oil truck to 6x4 oil tank truck. Besides oil tanker truck, our factory also produce oil tank semi trailer and the tank volume is from 30000 liters to 60000 liters.
Today, we will introduce FAW Brand 15,000Liters fuel petrol oil tanker truck is as below.
HOT SALE!FAW brand 210hp diesel Euro 3 15cbm bulk oil dieel tanker truck for sale
Customized FAW brand mobile refueling tanker truck for sale
Main technical parameters of FAW Brand 15,000Liters fuel petrol oil tanker truck is as below.
| Main technical parameters | |||
| Faw 4*2 LHD/RHD 15000Liters fuel petrol oil tanker truck for sale | |||
| Total mass(Kg) | 15600 | Tank volume(Liters) | 15,000 |
| Rated mass(Kg) | 9350 | Overall dimension(mm) | 8500×2450×3150 (mm) |
| Curb mass(Kg) | 6055(Kg) | Driver cab person | 3 |
| Approach/departure angle(°) | 29/13(°) | Front/rear suspension(mm) | 1330/2370(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 4770 |
| axle load (Kg) | 5600/10000 | Max speed (Km/h) | 79 |
| Chassis main parameters | |||
| Chassis model | CA1160 | Chassis manufacturer | FAW Company |
| Tyre specification | 11R22.5-16PR | Tyre nos. | 6+1 |
| Steel spring | 10/12+8 | Front tread(mm) | 1800(mm) |
| Fuel type | Diesel | Rear tread(mm) | 1800(mm) |
| Transmission | 8JS118TB 8 speed manual gearbox | Air-conditioner | Yes, |
| Power steering | Yes | Front/rear bridge | 5tons/13tons |
| Clutch model | Ф395 | Truck frame | 280×90×(8+5) |
| brake | Air brake | Driver cab | FAW Dragon V flat-head driver cab |
| Emission standard | Euro 3 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| WP6.210E32 | Weichai | 6230 | 155 |
| Engine type | 6 cylinders 4 strokes in line inter-cooled diesel engine | ||
| other Equipment or performances | 1The fuel tanker shape is ellipse, adopts high quality GB carbon steel material, the oil tanker volume is 15000Liters. | ||
| 1, 1* compartment and several anti-wave sheets 2, 1* carbon steel oil pump (pump-in and pump-out) 3, 2* Euro standard manhole, 4, 1*sub-sea valve(aluminum ally emergency shutoff device) 5, 1*oil unloading valve(without eyepiece) 6, 1*oil-gas recovery system 7, 1*anti-overflow probe pedestal 8, Tanker top-mounted manual folded carbon steel guardrail/ top mounted anti-slide sidewalk, 9,2* firefighting extinguishers 10, Sound and light alarm system 11,1* toolbox, 1*unloading box,1* fuel dispensing machine cabinet(below 15cbm) 12, Stainless steel hose box, Male and female plug lamps and lanterns,Plastic barrel cover and fire extinguisher cover,Punch the ladder step 13, simple reflective logo | |||
| 15, The truck is painted metallic coating. | |||
FAW TIGER Dragon V flat-head driver cab
4*2 LHD (left hand drive), RHD is selective
WP6.210E32 weichai 210hp diesel engine, Euro 3 emission standard, 155KW/210hp/6230ml displacement, large engine power
8JS118TB 8 speed manual gearbox , fastgear brand
A328 5T front axle/457 Punch welding bridge 13T rear axle
11R22.5-16PR*6+1, High quality Chinamade shuangqian brand
Air Spring seats, electric doors and windows, steel gas cylinder, 200L steel oil tanker, original air conditioner,
The volume of FAW brand 4*2 LHD 210hp diesel fuel tanker truck is 15,000Liters.
Fuel tanker truck is mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage. Chengli special automobile co.,ltd. ,which is a famous manufacturer producing all kinds of special trucks.it can offer many kinds of oil tank trucks from 2000 liters to 40000 liters. Such as oil tank truck, fuel tanker truck, heavy oil tank truck, fuel oil tank truck,liquid tanker truck, gallon fuel tank truck,diesel oil tank truck,oil transportation tank truck,fuel tank cap truck, etc. And also support Customized. Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of fuel tank in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply Dongfeng fuel tank, ISUZU refueler truck, HOWO oil truck, Forland fuel dispenser truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
