Customized Dongfeng captain 4*2 RHD dump tipper truck for sale
Driver cab: Dongfeng captain 2030mm single row driver cab,
4*2 RHD(right hand drive), LHD is selective
Engine model: YC4FA120-33(88KW/120hp/2982ml displacement）, Euro 3 diesel emission standard
Gearbox: WLY6TS40 Chinamade high quality wanliyang 6 forward gears and 1 reverse gear, manual type.
Wheelbase: 3800mm
Front/rear axle: 2.7T/6.8T
Tires specification: 8.25R16*6+1,
Leaf spring: 8/10+7,
192mm truck frame, air cut braking, spring brake, exhaust brake, power steering, clutch steering, 125L oil tanker, 2*90Ah storage batteries,
The overall dimension of the dongfeng kaipute brand dump truck is 6200*2350*2580mm;while the dimension(L*W*H)of the dump tipper box is 4200/4500×2200×800（mm）.the total cubage of dongfeng kaipute dump truck is 7cbm-8cbm. Real loading capacity of dongfeng kaipute dump truck is 5T-7T.

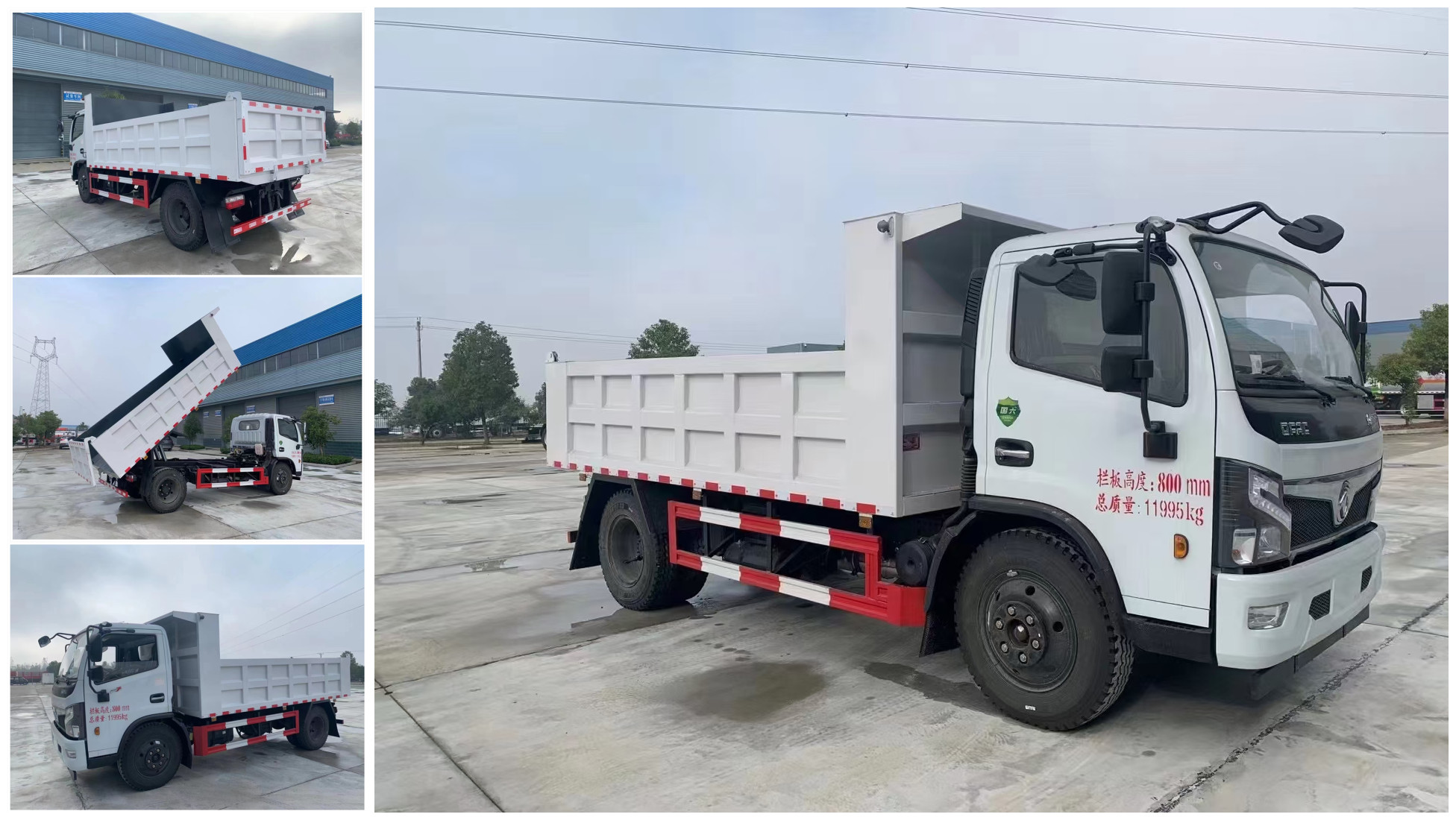

More pictures of Dongfeng kaipute dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
Customized dongfeng kaipute RHD 5T-7T dump tipper truck for sale
Main technical parameters of Dongfeng kaipute 4*2 RHD dump truck is as below.
| Items | Nos. | Descriptions | Specifications and Types |
| General | 1 | Truck Name | Dongfeng kaipute dump truck for sale |
| 2 | Drive Type | 4*2, RHD | |
| 3 | Loading capacity | 6720,6785 | |
| 4 | Gross Vehicle Weight(kg) | 11995 | |
| 5 | Rated weight(kgs) | 6720,6785 | |
| 6 | Curb Weight (kg) | 5080 | |
| 7 | Overall Dimensions L*W*H(mm) | 6200×2350×2580 | |
| 8 | Dump tipper box dimension(L*W*H)(mm) | 4200×2200×800 | |
| Engine | 9 | Engine Model | YC4FA120-33 |
| 10 | Fuel Type | Diesel | |
| 11 | Power | 88kw/120HP | |
| 12 | Emission Standard | Euro 3 | |
| 13 | Displacement(ml) | 2982 | |
| 14 | Engine Type | 4 cylinders in line, Vertical, in-line, four-stroke, water-cooled, electronic direct injection | |
| Chassis | 15 | Chassis Brand | Dongfeng Company |
| 16 | 4350/7645 | 4350/7645 | |
| 17 | Tire No. | 6 | |
| 18 | Tire Specification | 8.25R20*6+1 | |
| 19 | Wheelbase (mm) | 3800 | |
| 20 | Axle No. | 2 | |
| 21 | Gear Box | fastgear 8 speed manual gearbox with high-low speed | |
| 22 | Brake | Air brake | |
| 23 | Air Conditional | Yes, original air conditioner | |
| 24 | Front/rear suspension(mm) | 1260/1740,1260/1540 | |
| 25 | Leaf Spring No. | 8/10+7 | |
| 26 | Driver cab | DONGFENG KAIPUTE single row driver cab, 4*2 RHD(Right hand drive); LHD(left hand drive）is selective | |
| Tipping system | 27 | Box inner dimension(mm) | 4200/4500×2200×800 |
| 28 | Box material | Carbon steel,side 3mm,bottom 4mm | |
| 29 | Hydraulic cylinder no.(set) | 2 | |
| 30 | Hydraulic cylinder position | At the center of the truck bottom | |
| 31 | Discharge type | Rear tipping and rear door open | |
| Remark | 32 | Clients choose to install top mounted hydraulic environmental protection cover. | |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
