HOT SALE! FAW brand 7,000Liters diesel oil tanker delivery truck for sale
FAW TIGER VH single row flat-head driver cab
4*2 LHD (left hand drive), RHD is selective
CA498E3-12 DACHAI 120hp diesel engine, Euro 3 emission standard, 90KW/120hp/3168ml displacement,
WANLIYANG 5 speed manual gearbox, manual
D135 2.8T front axle/1058 Punch welding bridge(speed ratio 5.571) 5T rear axle
7.50R16*6+1,
Mainteince-free storage batteries, bigger radiator, air cut braking, Imported control soft shaft, original air conditioner, etc.
High quality and competitive price

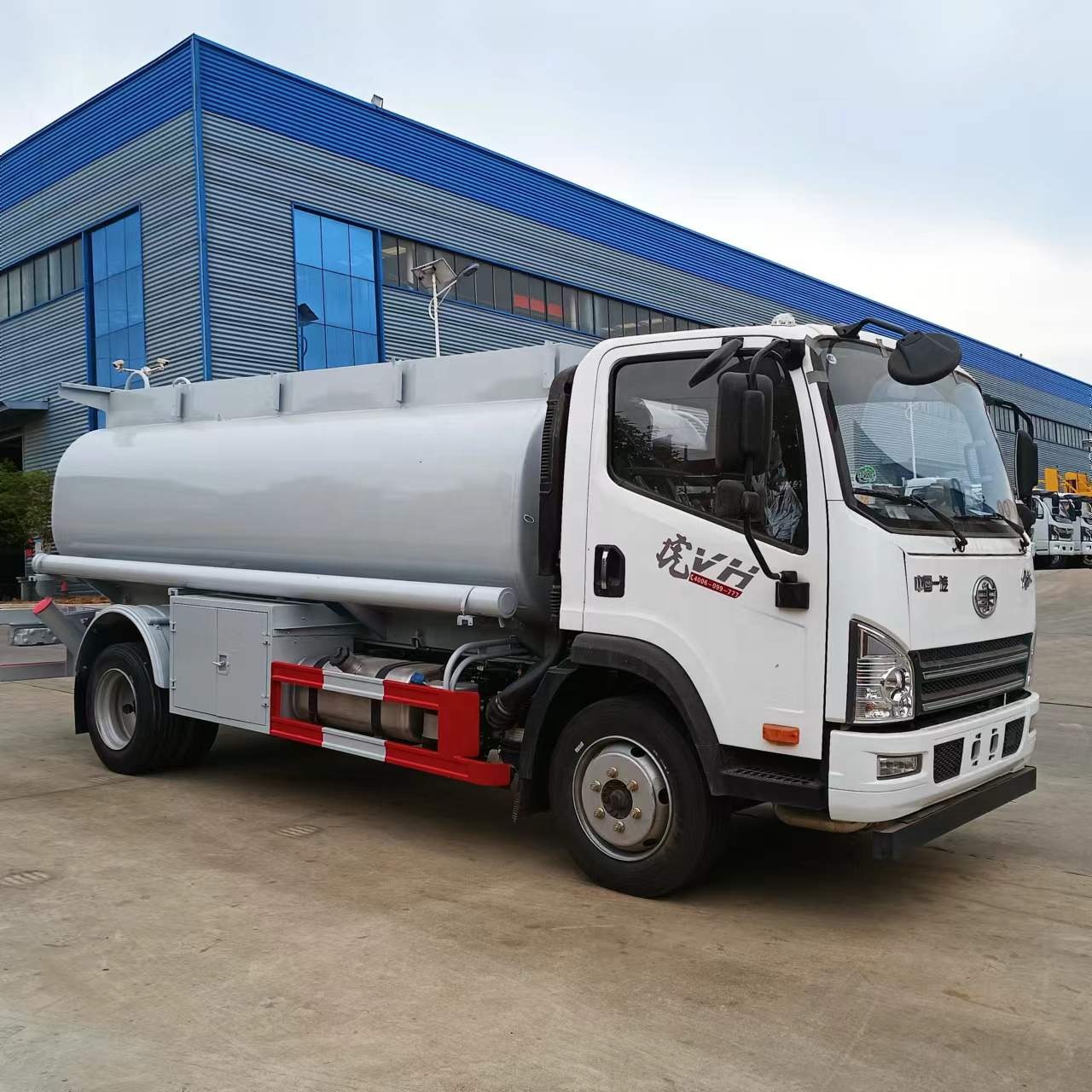

More pictures of FAW Brand 7,000Liters fuel tanker truck is as below.
good price FAW brand TIGER VH fuel oil tanker truck for sale
Main technical parameters of FAW Brand 7,000Liters fuel tanker truck is as below.
| Main technical parameters | |||
| Faw 4*2 LHD/RHD 7000Liters mobile fuel filling truck for sale | |||
| Total mass(Kg) | 8280 | Tank volume(Liters) | 7000 |
| Rated mass(Kg) | 4700 | Overall dimension(mm) | 5990×2120×2550,2940 (mm) |
| Curb mass(Kg) | 3385(Kg) | Driver cab person | 3 |
| Approach/departure angle(°) | 21/19(°) | Front/rear suspension(mm) | 1150/1580(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3260 |
| axle load (Kg) | 3050/5230 | Max speed (Km/h) | 79 |
| Chassis main parameters | |||
| Chassis model | CA1080 | Chassis manufacturer | FAW Company |
| Tyre specification | 7.50R16 rail tires | Tyre nos. | 6+1 |
| Steel spring | 3/3+4 | Front tread(mm) | 1640(mm) |
| Fuel type | Diesel | Rear tread(mm) | 1590(mm) |
| Transmission | 5 speed manual transmission | Air-conditioner | Yes, |
| Power steering | Yes | Front/rear bridge | 2.8tons/5tons |
| Clutch model | Ф300 | Truck frame | 200*65*5 |
| brake | Air brake | Driver cab | FAW VH flat-head single row driver cab |
| Emission standard | Euro 3 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| CA498E3-12 | Dachai | 3168 | 90 |
| Engine type | 4cylinders in line inter-cooled diesel engine | ||
| other Equipment or performances | 1The fuel tanker shape is ellipse, adopts high quality GB carbon steel material, the oil tanker volume is 7000Liters. | ||
| 1, 1* compartment and several anti-wave sheets 2, 1* carbon steel oil pump (pump-in and pump-out) 3, 1* Euro standard manhole, 4, 1*sub-sea valve(aluminum ally emergency shutoff device) 5, 1*oil unloading valve(without eyepiece) 6, 1*oil-gas recovery system 7, 1*anti-overflow probe pedestal 8, Tanker top-mounted manual folded carbon steel guardrail/ top mounted anti-slide sidewalk, 9,2* firefighting extinguishers 10, Sound and light alarm system 11,1* toolbox, 1*unloading box,1* fuel dispensing machine cabinet(below 15cbm) 12, Stainless steel hose box, Male and female plug lamps and lanterns,Plastic barrel cover and fire extinguisher cover,Punch the ladder step 13, simple reflective logo 14, 1*China-made English words small-flow refueling dispenser of 15m self-return Refueling reel and refueling nozzle(installed at the front of the tanker or the side part of the tanker) | |||
| 15, The truck is painted metallic coating. | |||
1. Fuel truck consists of tank car body, power take-off, self-flow valve, two oil pipes, fire extinguisher, ladder, gear oil pump, oil-resistant pipe, pipe network system and fire extinguisher.
2. The fuel tank body or is made by high-quality carbon steel sheet. The large-scale coiling machine is used for one-time forming made fuel tanker is more beautiful and the sealing performance is more excellent.
3. The shape of fuel tank is elliptical or trapezoidal, etc. The tank can be divided into single or multiple warehouses according to user requirements. In order to prevent corrosion, the outer surface of the can is coated with anti-rust paint and decorative paint.
4. The container indicator is installed in the middle of the fuel tank side. When adding oil to the tank or transferring oil to the outside, the inner volume of the tank can be directly indicated.
5, according to your needs, our technical man will made anti-corrosion treatment of tank car tanks, converted into chemical vehicles used to transport industrial chemical raw materials.
6, fuel tank truck optional computer tax control tanker, flow meter, ladder and other special configuration, the tank tail sprayed with high-quality reflective signs to provide security for your night driving.
More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
