customized ISUZU 100P Euro 4 diesel 17.5m telescopic aerial working platform truck for Philippines
product description of ISUZU brand telescopic aerial working platform truck is as below.
1. This ISUZU brand 17-meter high-altitude operating vehicle adopts a telescopic straight arm structure. The operating arm is a 3-section telescopic type. The turntable can be operated or remotely operated. It can rotate 360 degrees, four hydraulic outriggers, and the maximum load-bearing bucket. 200 kg, stainless steel hoarding, pattern anti-skid walking platform.
2. The working bucket adopts mechanical self-balancing design, its function is that the working bucket is always in a balanced state when working. The maximum extension angle of the forearm is up to 80° in order to adjust to the best working position.
3. Night work lights, operation lights can be installed on the operating table according to the customer's operating environment, making night work safer.
4. Computer control, automatic limit, dangerous work alarm, excellent safety performance. There is a display when getting off the car, which can display the working conditions of the whole car in real time.
5. The hexagonal working arm increases the strength, synchronously expands and contracts, the structure is compact, the working efficiency is high, and the working range is large. The telescopic oil cylinder is installed externally, and the chain telescopic mechanism is easier to observe the fault point and convenient for maintenance.
6. The outrigger adopts the front V and rear H-shaped structure, which has a larger bearing surface and higher stability; it can prevent the car beam from being deformed or broken. The outriggers are individually adjustable, and each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state. All outriggers are equipped with outrigger flashing lights for supporting during operation. The legs are profiled and a light alarm signal is issued.
7. The four vertical outrigger cylinders and the upper arm, lower arm, and forearm cylinders are all equipped with two-way hydraulic locks. The function is to lock the cylinders in place after reaching the required position to prevent accidents. The working arm is equipped with a two-way balance valve to make the working arm run more smoothly.
8. The main components of the vehicle including two-way hydraulic lock, two-way lock balance valve, hydraulic flow valve, hydraulic cylinder, engine start-stop emergency pump, operating system and control computer are all domestic well-known brands, and the core components are imported. Stable commutation, flexible and convenient operation; outriggers and working arms are interlocked, safe and reliable, to prevent misoperation.
Main technical parameters of ISUZU 17.5m telescopic aerial working platform truck is as below.
| Item | Name | Specification /model |
| 1 | Truck name | CLW brand telescopic aerial working platform truck for sale （single row） |
| 2 | Truck model | CLW |
| 3 | Truck chassis | ISUZU QL1040 |
| 4 | Working height | 17.5m |
| 5 | Main technical parameters | platform ground height≥15.3m Platform max working range: Open-ended Platform working height at the max working range: Open-ended Platform max working range at the max working height: Open-ended Platform max working Angle of Tilt: 80° Rated mass of the working bucket: 200kg |
| Outriggers | Type: Front V + rear H type, Individually control Outriggers nos.: 4 Control: Individually control or Linkage control Transverse Span of front outriggers: 4170mm Gradient: 120° Transverse Span of rear outriggers: 3930mm | |
| Main operation | Operation position: revolving stage, remote operation Control type: ZYK Bus control system, elector-hydraulic proportional control system, realize step-less speed regulation | |
| 6 | Coaming and platform | Stainless steel fence and Non-slip platform |
| 7 | Boom construction mode | Three-section six-sided working arm，Synchronous scaling |
| 8 | Rotation device | Two-way 360° continuous rotation, 360° hanging basket |
| 9 | Engine model | |
| 10 | Overall dimension(L*W*H) | 5950×1950×2750 |
| 11 | Total mass | 4495kg |
| 12 | Curb mass | 4365kg |
| 13 | wheelbase | 3360mm |

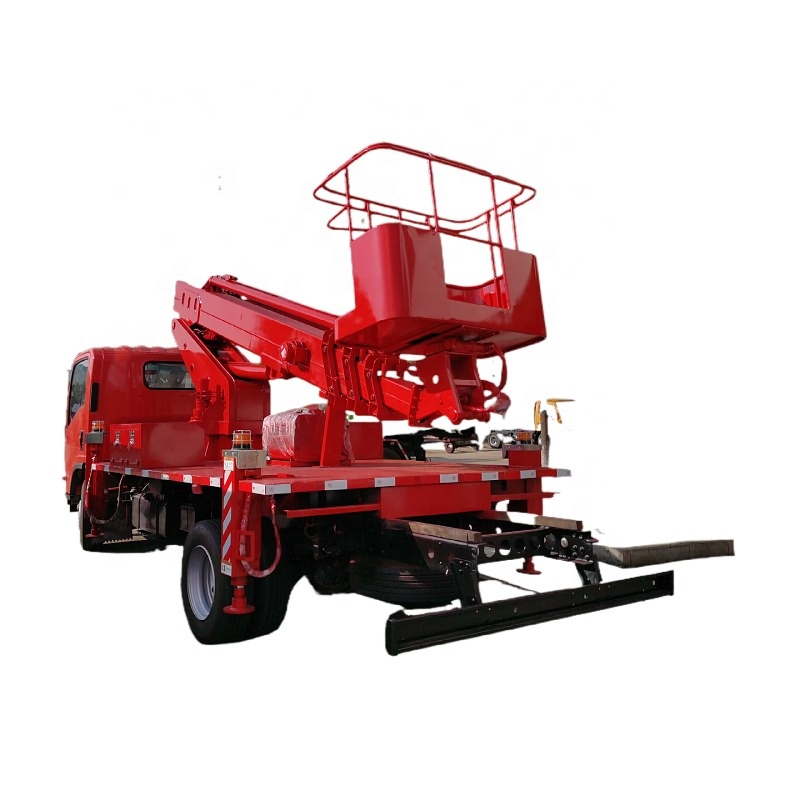

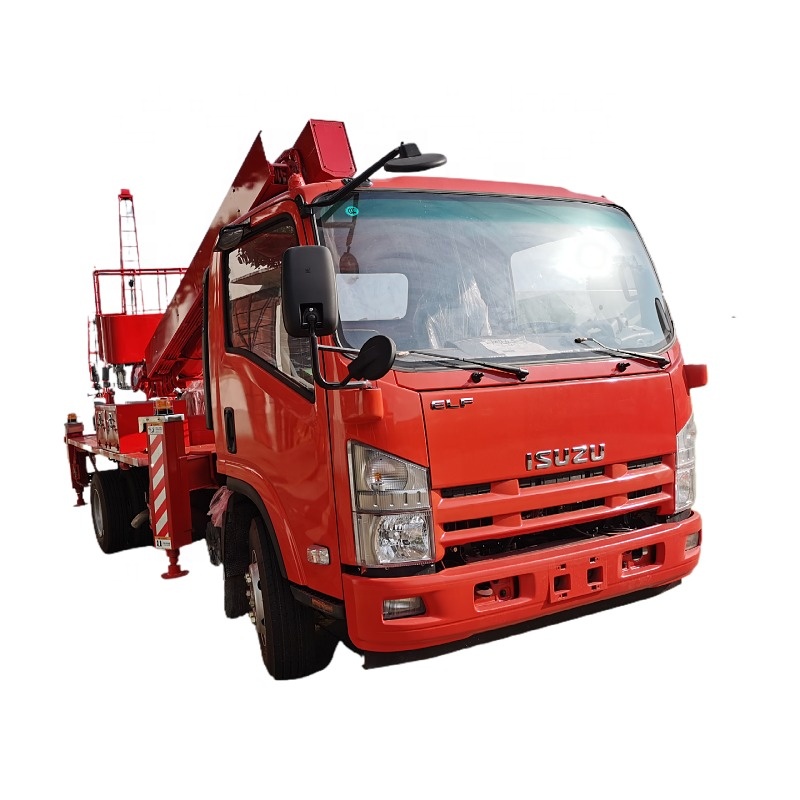

More pictures of ISUZU 4*2 Euro 4 diesel 17m aerial working platform truck is as below.
HOT SALE! ISUZU 4*2 LHD 98hp diesel telescopic aerial working platform truck for sale
17m ISUZU brand 100P telescopic high altitude operation truck for sale
Isuzu 4*2 LHD 98hp Euro 4 diesel telescopic aerial working platform truck, adopts ISUZU 100P single row driver cab with air conditioner and power steering, Isuzu 4JB1CN 98hp Euro 4 diesel engine, 3360mm wheelbase, ISUZU MSB 5 speed manual gearbox, 7.00R16 rail tires, oil brake , etc.
The working height is 17.5 meters, the color of the upper part is engineering yellow according to the announcement, with four hydraulic telescopic legs (up and down extension and horizontal extension), a total of 12 oil cylinders, the legs are front V and rear H type, emergency pump, bucket belt 360 degrees Rotation, wireless remote control, and others are prepared according to factory standards
Our telescopic aerial working vehicle is flexible and can work flexibly in tight high-rise buildings. It is the leader of aerial work vehicles and leads the new trend of the industry. It is widely used in installation, maintenance and climbing operations in such industries as municipal administration, electric power, street lights, advertising, communications, photography, gardening, shipbuilding, transportation, docks, airports and ports, emergency rescue, and large industrial and mining enterprises.
The technical features and advantages of GK14S 17m telescopic aerial working platform truck is as below.
A. The whole vehicle has compact structure, short outline size, convenient driving and flexible steering.
B. The whole vehicle adopts a fully electronic control system with multiple safety protection functions.
1. Each outrigger has a soft leg support ground protection function (optional).
2. The outriggers are locked. When the boom is working, the outriggers are not allowed to operate (restricted movement).
3. The body is equipped with a large-screen display, which can display arm length, working height, working range, and tilt angle.
4, Equipped with a wireless remote control, the operating arm frame is protected when getting on and off the car.
