Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas tank, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng.

Last month, we received an order of 49.6m3 road transported lpg gas tank with the loading capacity of 20,830kgs.

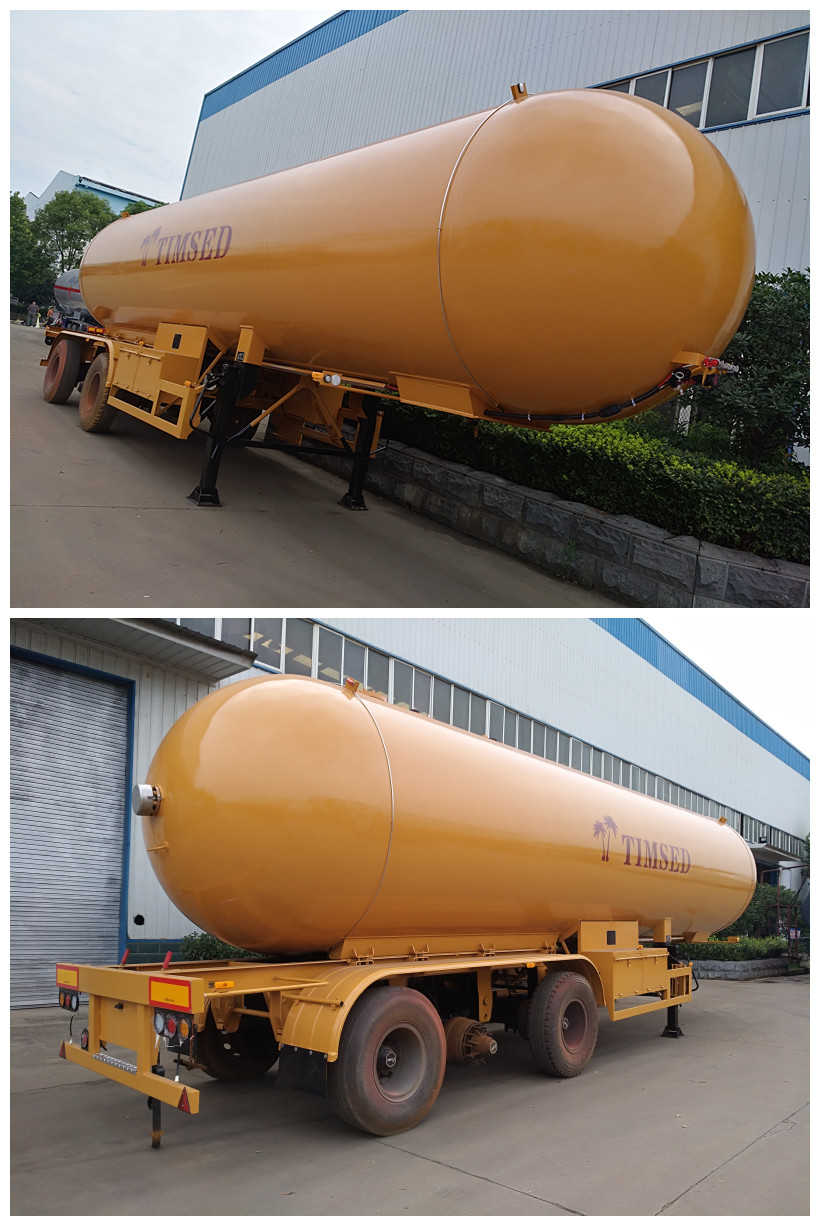

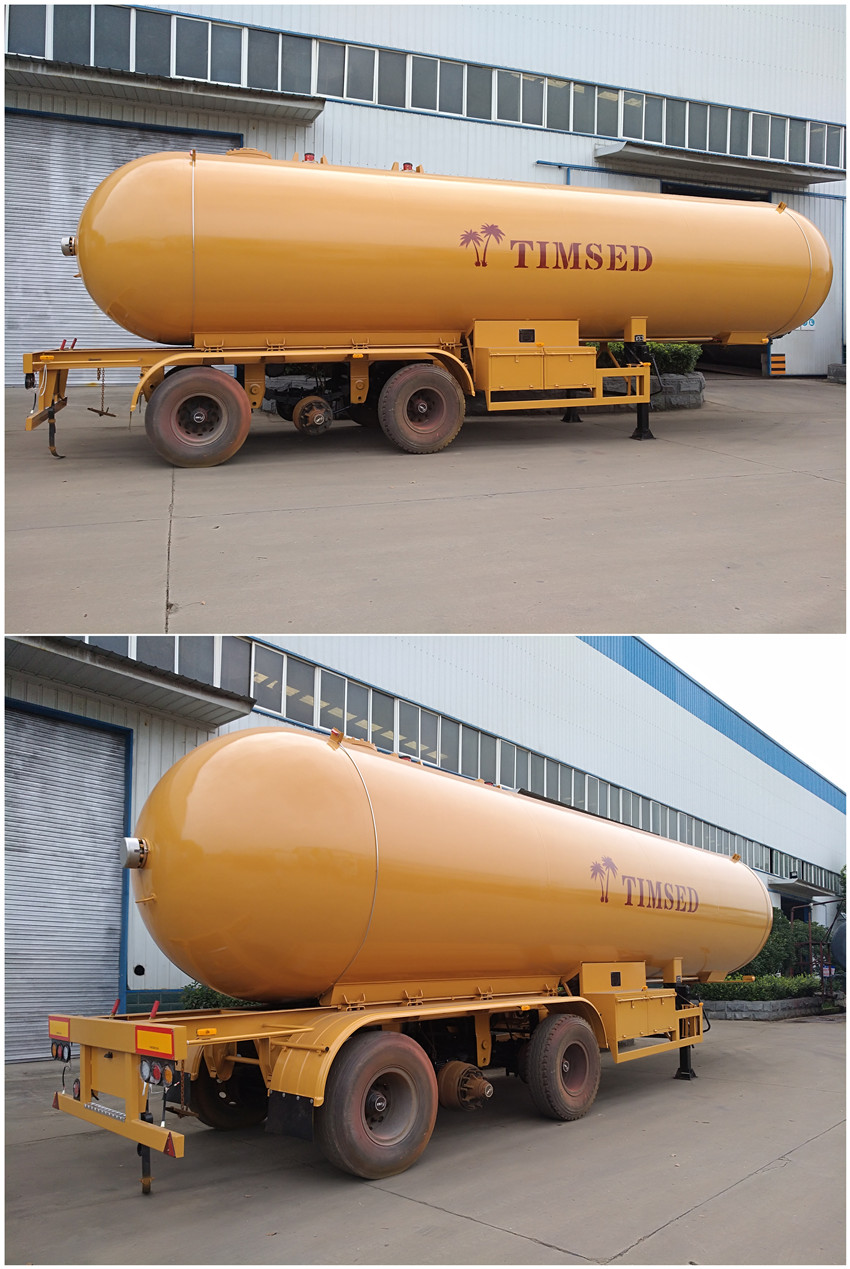

Look at the pictures of 49.6m3 bulk lpg gas tank semitrailer customized for overseas client as below

49.6m3 bulk lpg gas tank trailer for sale


bottom price and high quality customized 20tons road transported lpg gas tank
main technical parameters of hot sale 49.6m3 propane gas tank trailer as below

Loading mediumLPG gasMedium characteristicflammable and combustibleSafety valve2*DN80
Curb mass (kg)15,300TankerDesigned pressure(Mpa)1.61MPaDesigned standard
GB150-2011<
Loading mass(kg)20,832Filling ratio(kg/cbm)420
Max total mass (kg)36,132Tanker materialQ345R
Wheelbase(mm)6800+1310+1310Tanker designed thickness(mm)11.05
Front/rear suspension(mm)-/1650Head designed thickness(mm)11.03
Overall dimension(L*W*H)(mm)12740×2480×3800Tanker body dimension(L*W*H)(mm)2300*12*12,372Chengli Special Automobile Co., Ltd.


20 metric tons LPG tank semitrailer for LPG GAS adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.

The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.

49.6cbm lpg trailer is with the loading capacity of 20 metric tons, choose to install aluminum alloy sunshield cover.

The LPG tanker semi-trailer is line with the GB150-1998《steel pressure vessel》.
