Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper truck in China. With many years’ development, we can offer ISUZU road sweeper truck, dongfeng street sweeper truck, forland road sweeping vehicle, YUEJIN road sweeper, JMC road sweeper truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
More pictures of hot sale ISUZU 130hp 5m3 road sweeping sucking truck as below

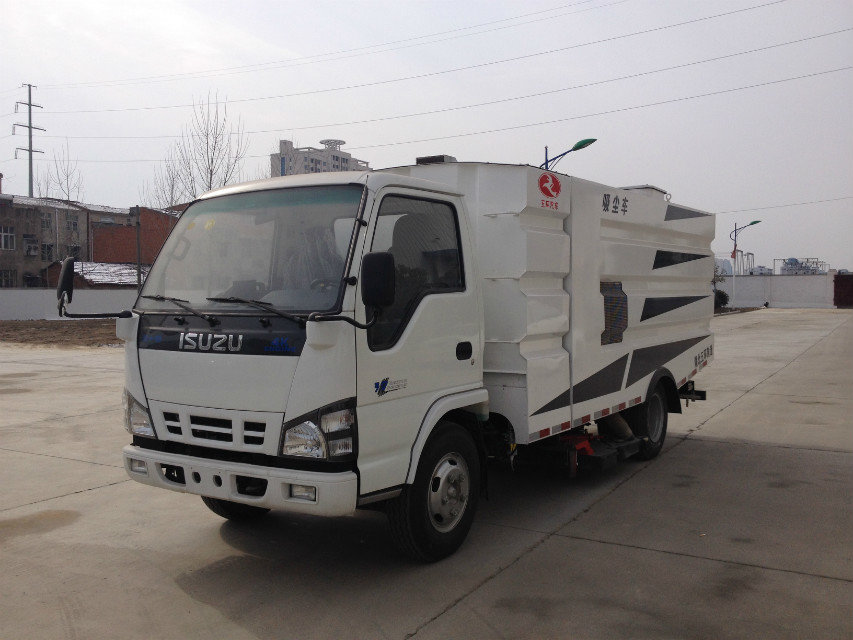

ISUZU brand 4*2 road sweeping sucking truck for sale
Euro 5 130hp road sucking sweeper truck for sale
main technical parameters of hot sale ISUZU road sweeping sucking truck as below
| ISUZU 4*2 LHD road sweeping sucking truck for sale | |||
| Total mass (kg) | 7200 | Curb mass(kg) | 4880 |
| Rated mass(kg) | 2190 | Chassis model | QL1070A5HAY |
| Driver cab seated person | 2-3 | Front/rear tread | 1015/1815 |
| Approach/departure angle(°) | 24/13 | Axle load(kgs) | 2500/4700 |
| Overall dimension(L*W*H)(mm) | 6190X1990X2590 | Cargo bosy dimension (mm) | XX |
| Axle nos. | 2 | Max speed(km/h) | 110 |
| Tire specification | 7.00R16 14PR | Tires no. | 6 |
| Front tread(mm) | 1504 | Rear tread(mm) | 1425 |
| Wheelbase(mm) | 3360 | Steel spring | 8/6+5 |
| Gearbox | ISUZU MSB gearbox | Front/rear axle (kgs) | 2.5tons/4.8tons |
| Power steering | Yes | Air conditioner | Yes |
| Emission standard | Euro Ⅴ | Fuel type | Diesel |
| Engine model | Engine manufacturer | Displacement(ml) | Power (KW) |
| 4KH1CN5HS | ISUZU | 2999 | 96 |
| Sweeping device | |||
| 1, the volume of the dust hopper is 5m3, 2, middle-installed sucking disk, 3, Schneider control switch 4,JMC Deputy engine 5, stainless steel dust hopper 6, HI-PRESSURE electromagnetic valve unit. 7, infinite variable speed automatic clutch, 8, maintenance-free centrifugal fan, 9, high precision filter system for the dust hopper（max up to 0.3micronmeter), 10, imported sentinel valve, 11, tail with LED arrow lamp, 12, manual pump emergency system 13, tail with mist spraying and wetting system | |||
The introduction function of CLW road sweeper truck
1. CLW brand road sweeper truck adopts the mixing way of sucking-sweeping to collect wastes, wet-dust removal, electro-hydraulic control, finished the sweeping work by the working way of hydraulic tipping and discharging.
2. CLW brand road sweeper truck, adopts auxiliary engine specially drives the fan and hydraulic system, assuring keeping working during driving and Continuity of the sweeping process.
3. CLW brand street sweeper adopts the structure layout of “middle installed 4* sweeping brushes+ spraying and dust-removal device+ Center partition+ rear installed nozzle”, which makes non-splashing of sand and gravel during cleaning. This kind of sweeping layout is easy to adjust and maintain the sweeping and sucking devices. Perfect vehicle passivity in transit operations.
4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, making sure automatic disconnection of the secondary engine from the fan when starting and stopping the engine without load, reducing the impact on the secondary engine, improving the reliability and service life of the auxiliary engine
5. Sweeping disk has the functions of automatic obstacle avoidance and automatic reset; obstacles automatically retract and automatically return to obstacles.
6. The rotating speed of the pan can be adjusted according to various cleaning conditions to ensure good cleaning effect under various pollution conditions.
7. CLW brand road sweeper adopts advanced, high-efficiency dedicated fans and fully floating nozzles that can be automatically leveled along the road providing good cleaning and long service life.
