CLW brand aluminium alloy fuel tank semitrailer, adopts aluminium alloy materials for the tank wall.
The Standard of the aluminium alloy fuel tank semitrailer as below
2 sets*aluminium alloy manhole cover,
1 sets*aluminium alloy sub-sea valve,
5-6mm aluminum alloy material
3*13tons FUWA axles with ABS,
12 sets*11.00 wireless tires or 12.00 tubeless tires.
Steel material elevating protection guardrail.
Conducting electrostatic wire coil.

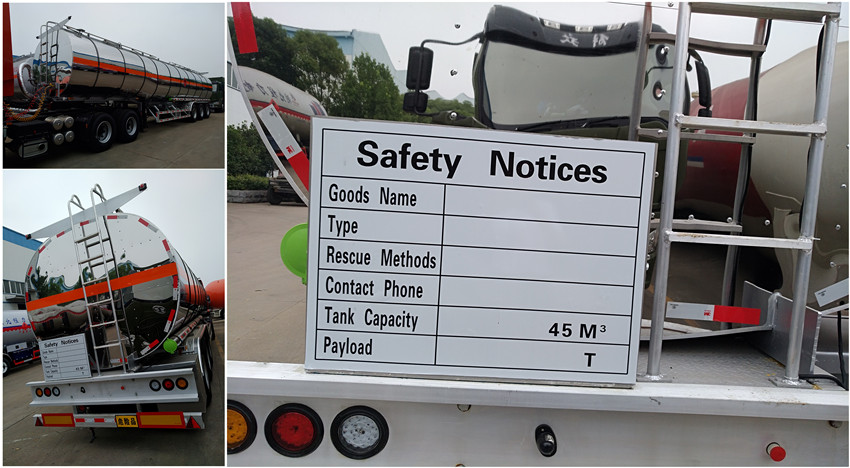

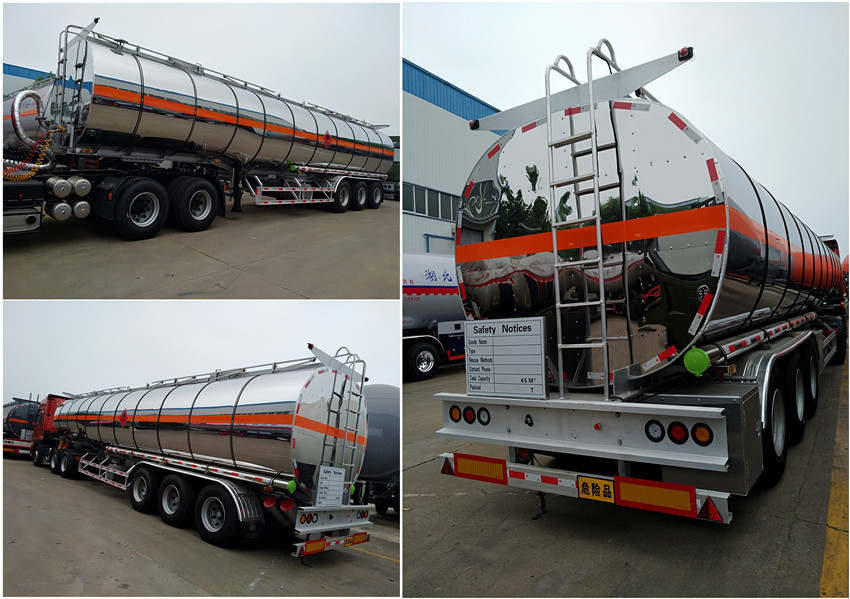

More pictures of hot sale 45M3 aluminium alloy gasoline tank semitrailer as below
hot sale 45,000Liters fuel tank trailer
high quality and best price 45,000Liters aluminium alloy fuel tank trailer for sale
Main technical parameters of hot sale aluminium alloy fuel tank trailer as below
| Main technical parameters | |||
| Truck model | CLW9406GYYLV aluminium alloy fuel tank trailer for sale | ||
| Overall dimension(L*W*H) (mm) | 12280*2500*3900 | Volume(m3) | 45-49m3 |
| Rated mass(kgs) | 32900 | Total mass(kgs) | 40000 |
| Curb mass(kgs) | 7100 | Axle nos. | 3 |
| wheelbase | 6300+1320+1320 | Axle load(kgs) | -/24000(triple axles) |
| Steel spring | -/8/8/8 | Tires nos. | 12 |
| Tires specification | 11.00R20 12PR,12R22.5 12PR | Approach/departure angle | -/15 |
| Front/rear suspension(mm) | -/1890 | Front tread(mm) | |
| Rear tread(mm) | 1840/1840/1840 | The max loading capacity of the saddle(kgs) | 16000 |
| Remark | It ask for the dangerous good transported semitrailer tractor head. The transporting medium: 0.75tons/m3, the volume of this semitrailer is 46m3, The overall dimension of the fuel tank(L*Long axle*short axle): 11750*2500*2090mm, | ||
CLW of fuel tank is one series of our company. This series of products is mainly used for all kinds of oil. chemical liquid transportation of petrochemical sector; with oil-pumping, separation variety of oil.separation packing of oil. It can separate a department independent, it can packing different kinds of oil,chemicals,foods,the design can be implemented on pump out over the watch,also can be implemented on pump inlet and pump out didn’t over the watch,also can be implemented on pump inlet and pump out didn’t over the watch and did’t over the watch and other function. both tankers use the original chassis to modification,users also can take different chassis to our factory to modificatio by themself.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of oil tank, fuel truck, diesel tank trailer, etc. in China. With many years' development, Chengli Special Automobile Co., Ltd. could manufacture and sell 4,000L-30,000L fuel tank truck and oil dispenser truck, 30,000L to 80,000L fuel tank trailer, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
