Best price FOTON brand 3cbm-5cbm fresh milk tanker vehicle for sale,
The milk transporter is also called fresh milk transporter, milk tanker, liquid food transporter. The tank body is made of food grade stainless steel plate. The outer part of the tank body needs to be used as insulation layer to prevent the deterioration of fresh milk. The inside of the tank body needs smooth and no acute angle. A CIP (cleaning device) is added to each milk tank.
The material of the tank is made of high-quality aluminum alloy and stainless steel. The tank and the tank are finely polished. The tank can be equipped with heat preservation and refrigeration functions. It can transport a variety of chemical raw materials, dairy products, oil products and liquid food transportation.
The tank can be set to multiple positions according to the demand, and a variety of media can be dispensed at any time, so that the pump can be pumped in and out, and the table can be over-extended, but the table and the self-flowing table can be used.
Fresh milk transport vehicle modification configuration: the tank structure is divided into three layers: insulation layer, insulation layer and tank body.
One. The body of the frame can be made of food grade 304 material stainless steel plate, and the tank body can be made into 2-3 cabins. The tank body requires smooth and no acute angle. A cip (cleaning device) tank is provided in each milk tank with a washer.
Second, the middle of the tank is an insulation layer, which has a heat preservation effect to prevent deterioration of fresh milk. The temperature change does not exceed 1 degree for 24 hours at a temperature difference of 30 degrees. The insulation material is insulated with 80 (mm) thick polyurethane foam material.
Third, the outer layer of the tank (protective layer of the insulation layer) is made of 2mm thick 304L stainless steel. The outer skin and trunk of stainless steel are beautiful in appearance, the whole body is beautiful in appearance, scientific in structure, light in weight and good in strength.
4. Each single warehouse has a separate discharge port (self-flow port) and a feed port (can port).
5. Optional chiller, rock wool insulation, exhaust gas circulation heating, and stainless steel pump to make the vehicle have a suction function.

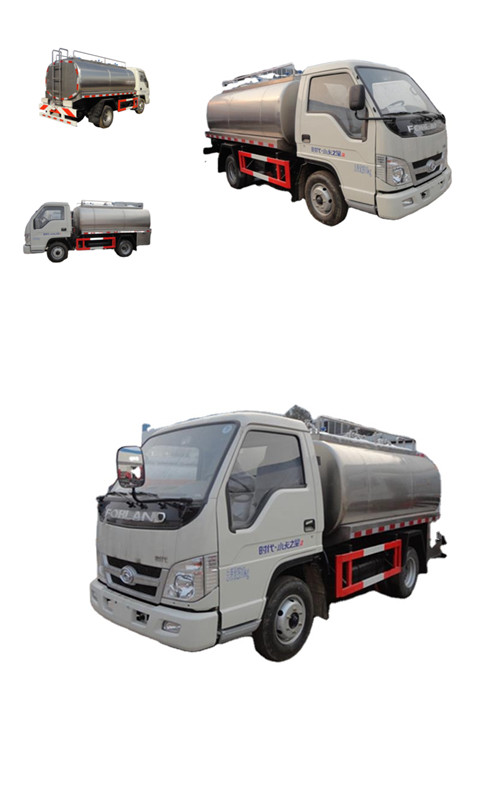

More pictures of FOTON brand milk tanker vehicle is as below.
Good price FOTON 3cbm-5cbm fresh milk tanker vehicle for sale
main technical parameters of FORLAND RHD 5M3 stainless steel milk truck as below
Items | Descriptions | Specifications and Types |
General | Truck Name | Forland RHD Milk tank truck(5,000L) |
Drive Type | 4*2 RHD | |
Curb Weight (kg) | 3300 | |
Total weight(kg) | 7360 | |
Overall Dimensions L*W*H(mm) | 5995×2000×2400 | |
Engine | Engine model | BJ493ZLQ1 |
Engine Brand | Xi Chai brand engine | |
Fuel Type | Diesel | |
Power | 80KW/108hp | |
Emission Standard | Euro Ⅱ | |
Chassis | Chassis Brand | FORLAND |
Tire No. | 6+1 | |
Tire Specification | 7.00-16 Nylon tire | |
Wheelbase (mm) | 3360 | |
Axle No. | 2 | |
Steering Wheel | Right hand drive | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Brake | Oil brake | |
Radiator | Equipped | |
Tank | Tank Volume(L) | 5,000Liters |
Tank Material | Food grade 304-2B 3mm thickness stainless steel | |
Compartment No.(pcs) | Standard with single one compartment with single one self-discharging | |
Insulated Layer Material | PU foam 80mm thick | |
Remarks | Tank volume: 5,000L, and with one compartment; adopts high quality food grade stainless steel material. The outer layer is with insulation layer to avoid the fresh milk going bad. The inner tanker is polished by the special equipment, and making sure no milk hanging. The inner tanker is smooth, non sharp angle, etc. There is CIP (cleaning device) installed. | |
There are three layers of the milk tank, the inner tanker is manufactured by 3mm thick 304-2B food grade stainless steel; the middle is 80mm PU foam insulation layer, and 60mm PU foam of the manhole part, the temperature will be changed less than 1 degree within 24 hours; the exterior of the tanker is 1.2mm thick 304 stainless steel mirror panel. | ||
There is cleaning equipment inside the tank, cleaning rod (cleaning ball), cleaning pipe (with the diameter of 38mm), turntable cleaning sprayer to automatically cleaning when with water source. | ||
Milk tanker truck characteristic :
(1). The milk tank is made up of three layers:outside layer(for physical protection),middle layer(thermal insulation),inner layer tank(for milk filling).
(2). The thickness of thermal insulation layer is 80mm.
(3). The tanker liner is made of high quality food grade stainless steel,and the inner tank has been fine polished.
(4). Equipped with PIC cleaning devices.With function of thermal insulation: medium temperature change≤1°C during 24 hours.
(5). The tank can be divided into several parts according to demand to load different medium.
