The operation of hydraulic poultry feed truck for Philippines

Nowadays, more and more livestock and poultry farms would like to buy feed truck for their plants. If there is 380 volts three phase, then electronci feed truck will be your best choice. And if there is no 3 phase 380volts, then we can choose hydraulic feed truck. More and more clients oversea perfer to purchase the hydraulic discharging bulk feed trucks.

Chengli Special Automobile Co., Ltd. Is the leading manufacturer and supplier of feed trucks in China. With many years’ development, we Chengli Company can manufacture and sell farm-oriented feed trucks(electronic system discharging or hydraulic system discharging) from 8m3 to 40m3 and 40m3-50m3 animal feed transported semitrailer, etc. And more and more CLW Brand feed trucks have been exported all over the world.

And this month, we have finished one unit of dongfeng 4*2 LHD hydraulic discharging poultry feed truck for client from Philippines.

And how to operate the hydraulic poultry feed truck?

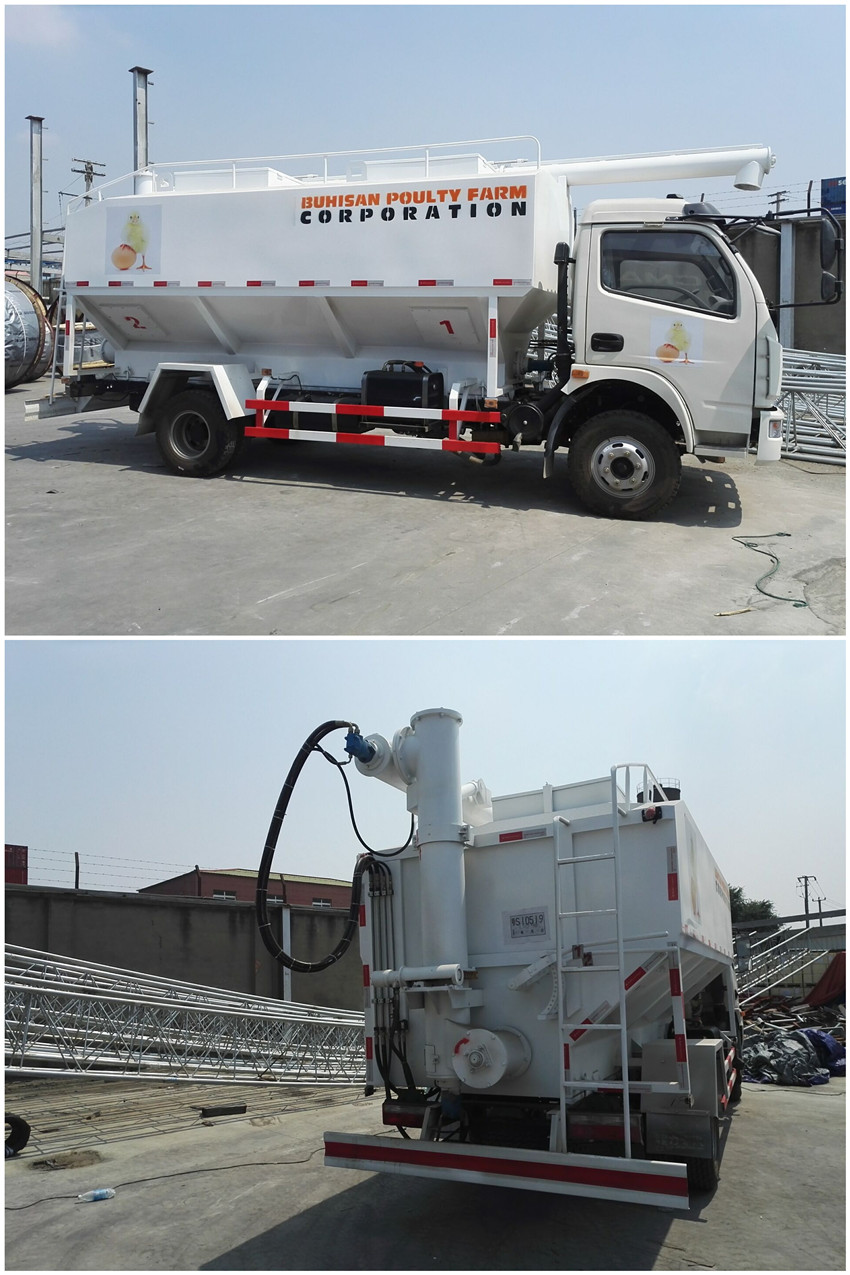

Hot sale dongfeng 11m3 hydraulic poultry feed truck leaves our factory.

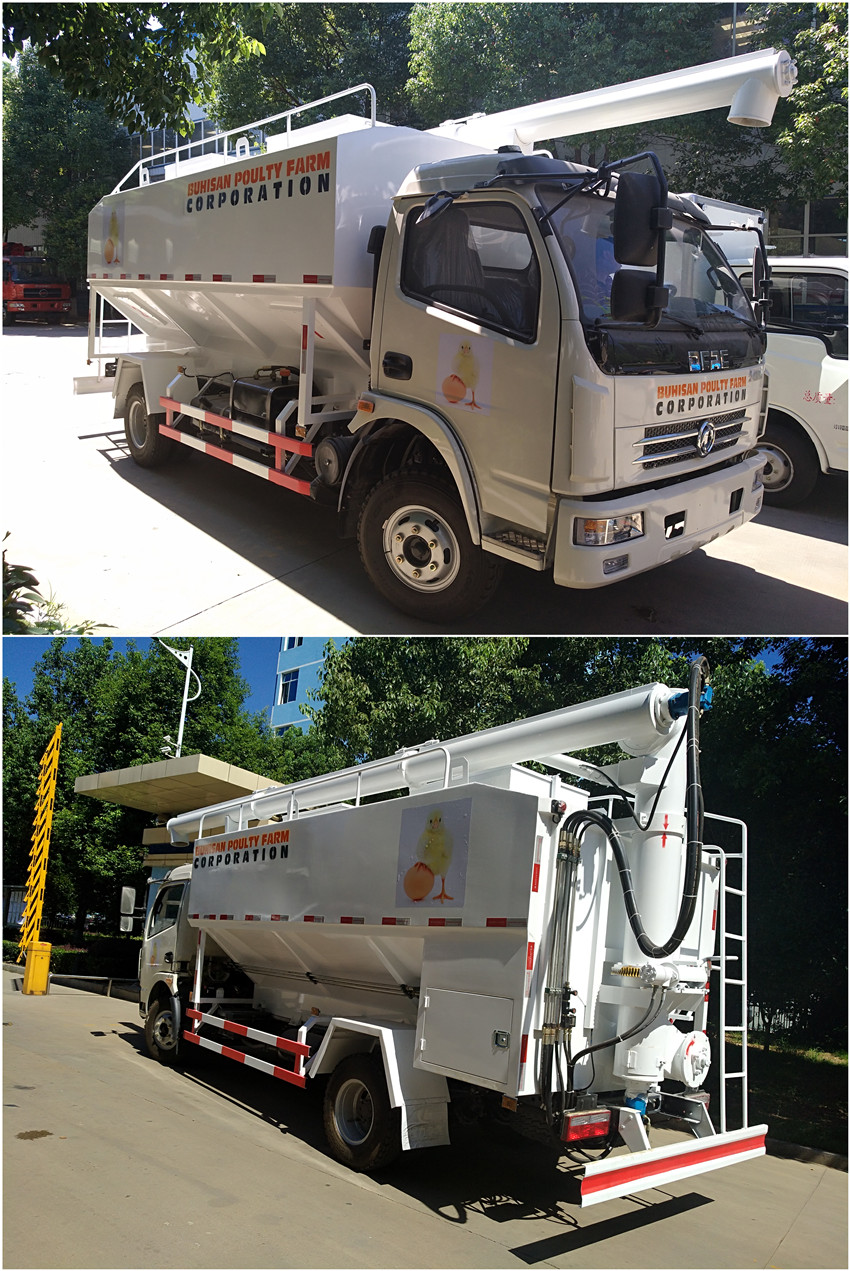

Dongfeng 11m3 hydraulic discharging feed truck at Shanghai seaport, ready for shipping

How to operate CLW brand hydraulic feed truck?

I think there are three steps to finish.
First step, operation at the driver cab.
Second, operation at the left toolbox
Third, operation at the rear part of the truck

First, at the driver cab.

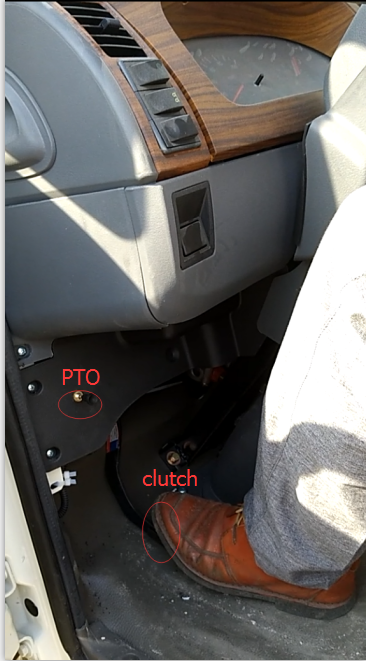

A, start the truck; B, step on the clutch; C, Open the PTO

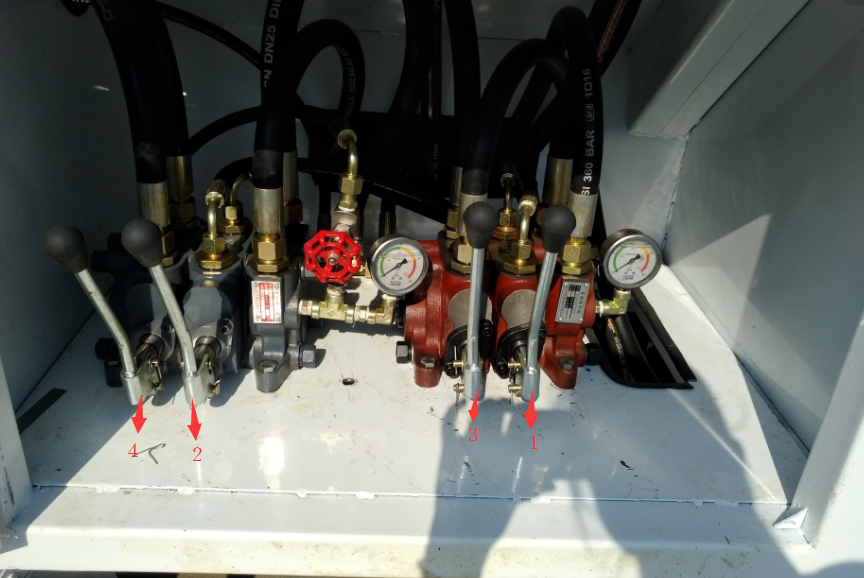

shafts 1-4 at the left toolbox

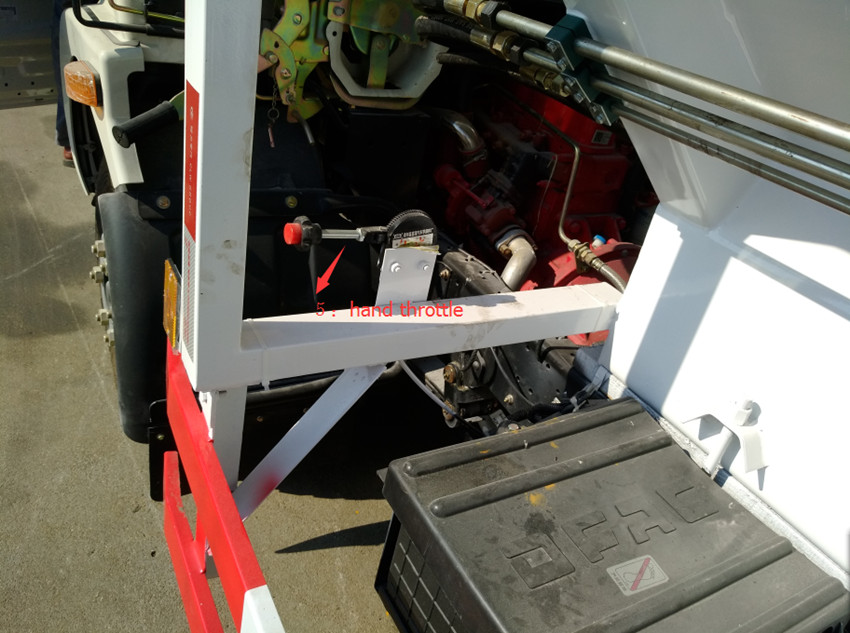

shaft 5: manual hand throttle at the front parto f the feed tank as the picture show
Second, at the left toolbox and operate the hand throttle
We should know the function of the 5 shafts above.
The one at the front part of the feed truck, nearby the driver cab is hand throttle 5 (push-up to accelerate the engine); and the right 4 ones are remarked with 1, 2, 3, 4 above.

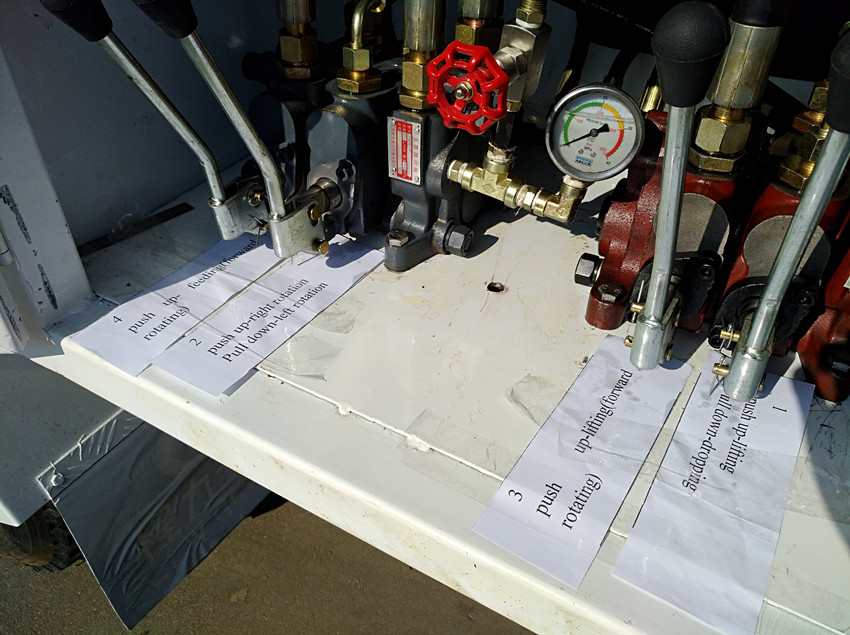

1 shaft is to control the top auger lifting and dropping. Push-up the 1 shaft refers to lifting function; then pull-down refers to dropping the top auger.
2 shaft is to control the top auger left-right rotating. Push up the 2 shaft refers to right rotation; then pull-down refers to left rotation.
3 shaft is to control auger at the tank bottom to rising and discharging. Push-up refers to lifting the feed, only in forward-rotating.
4 shaft refers to control the top auger feeding. Push-up refers to feeding, only in forward-rotating.

And the operation steps of the toolbox as below
A, push up the 1 shaft to lift the top auger;
B, push-up and pull-down 2 shaft to left-right rotation, then find the place of the feed silo
C, push up the 3 shaft to lifting the feed
D, push up the 4 shaft to feeding the feed to the feed silo
E, push-up the manual throttle; if the truck operate so hard then accelerate the manual throttle 5.
Then if close the truck, first close the manual throttle, then 4-3-2-1

Last the operation at the rear part of the truck.

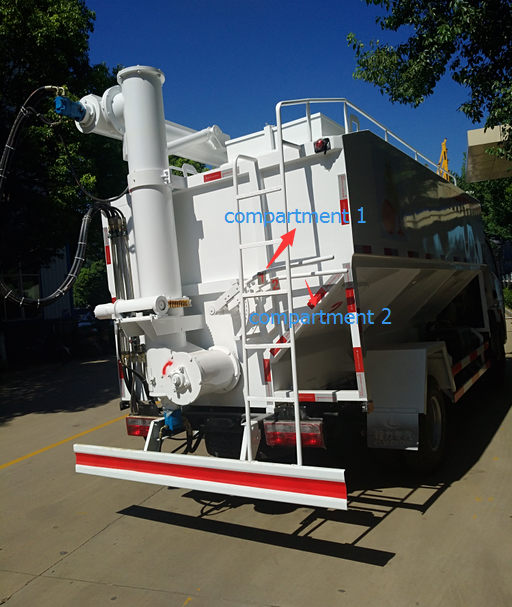

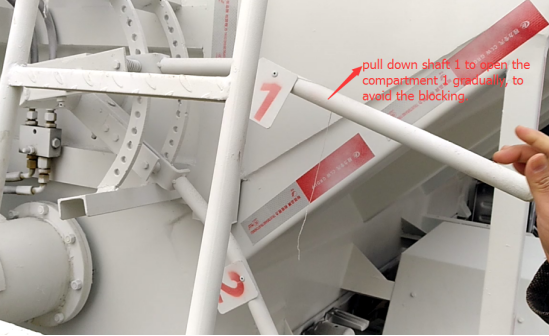

The 2 sets of the operation manual shaft to open the compartments of the feed truck

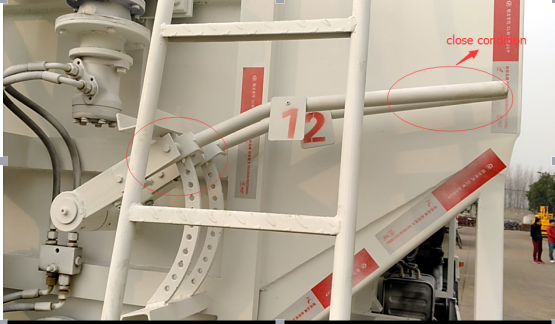

1 refers to the compartment 1; 2 refers to compartment 2. discharging one by one. The upper part means close the compartment, close position.

Pull-down operation shaft to discharge feed gradually one by one.

If close the feed truck, then close in reverse.
Poultry feed truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories. More information, please feel free to contact with Ms. Anita Deng. The hot sale line of feed tank is 0086 13329899995.
