Today, we will introduce the 2017s luxurious IVECO brandc 4*2 LHD P6 mobile LED billboard advertising truck as below

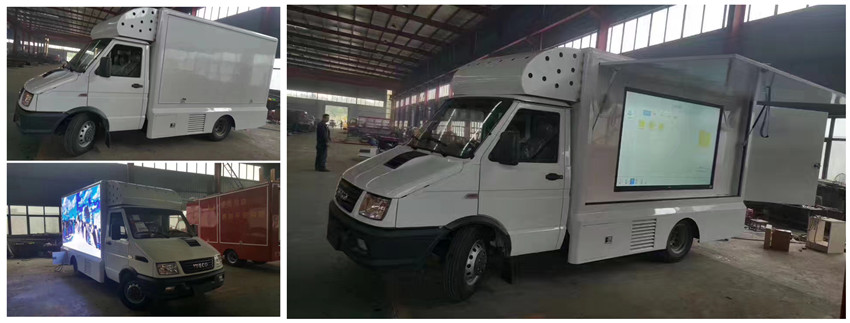

More pictures of hot sale IVECO brand 4*2 LHD mobile LED screen billboard advertising truck as below
IVECO brand diesel mobile LED advertising truck for sale
HOT SALE! high quality and best price IVECO P6 mobile LED advertising truck for sale
main technical parameters of hot sale IVECO mobile LED advertising truck as below.
IVECO 4*2 LHD mobile LED vehicle for sale main parameters | |||
Overall dimension(L*W*H) | 5995×2090×2830(mm) | curb mass(kgs) | 4480kg |
Axle nos. | 2 | Wheelbase(mm) | 3310mm |
Front/rear suspension(mm) | 960/1725 | Front/rear tread(mm) | 1695/1540 |
Rated person | 2-3 (driver included) | Tyre specification | 6.50R16LT*6 |
Max speed(km/h) | 100 | Approach/departure angle | 21.5/12(°) |
Axle load(kgs) | 1650/2830 | Steel spring | 8/8+9, 3/8+9, 8/10+6 |
Gearbox | IVECO 2826.5 gearbox | Power steering | Yes |
brake | Air cut brake | Driver cab | IVECO X45 model Turbo Daily single row driver cab |
Oil tank | 93L | Air conditioner | 4KW air conditioner |
Engine model | SOFIM8140.43S5 | Emission standard | Euro Ⅴ |
Displacement(ml) | 2798ml | Rated power | 95KW/130hp |
Fuel type | Diesel | ||
Truck mounted LED screen | |||
1 | The left and right sides of the driver cab are with high quality HD waterproof and shake-proof full color outdoor P6/P8 LED screen (one side P8 screen area: 3840*1792=6.88㎡; One side P6 screen area: 3840*1728=6.65㎡) and the right side with P8 LED screen can be flipped up and down | ||
2 | The back face is also with P6/P8 LED screen(back face LED screen area: 1280*1440=1.84㎡) | ||
3 | truck mounted silence diesel generator adopts high quality OUMA 15KW diesel generator unit. | ||
4 | 5cm composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audios, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, Gigabit flow Media control system, etc. | ||
Remark: the computer is with English words, English operation system and Software playback system |
