HOT SALE!dongfeng 10tons dump tipper truck
2023-11-23 21:42:00   source:www.trucksinchina.com    clicks :

Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of garbage trucks in China. With many years' development, Chengli Special Automobile Co., Ltd. could offer garbage compactor truck, dump garbage truck, swing arm garbage truck, sealed garbage truck, hook lift garbage truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.

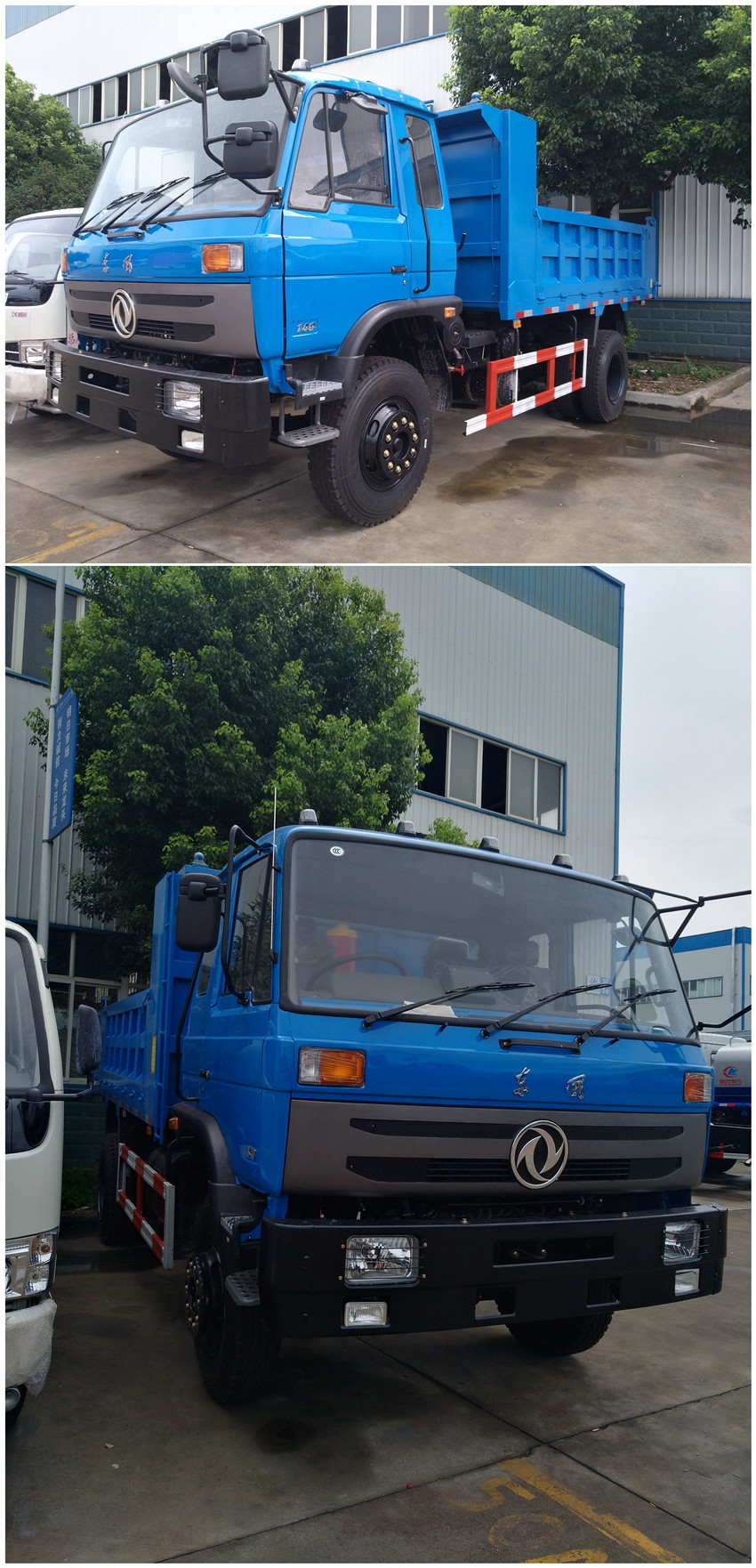

More pictures of hot sale dongfeng dump truck as below

hot sale!dongfeng 145 dump tipper truck for sale
The main technical parameters of hot sale dongfeng 145 10tons dump tipper truck as below

ItemsDescriptionsSpecifications and Types
GeneralTruck NameDump truck
Drive Type4*2, lefthand driveor right hand drive
Fact LoadingCapacity(kg)10000
Gross Vehicle Weight(kg)15990
CurbWeight (kg)6295
Overall Dimensions L*W*H(mm)7000×2490×2980
EngineEngine ModelB170 33
Fuel TypeDiesel
Power125kw/170HP
Emission StandardEuro III
Displacement(ml)5900
Engine Type4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
ChassisChassisBrandDongfeng
Front/Rear Axle Load(KG)5990/10000
Tire No.6
Tire Specification9.00-20 Nylon tire or 9.00R20 steel tire
Wheelbase (mm)3950
Axle No.2
Gear Box6speedforward with 1 reverse,manual
BrakeAirbrake
Air ConditionalOptional
Front/rear suspension(mm)1430/1860
Leaf Spring No.7/9+6
Tipping systemBox inner dimension(mm)4480x2210x800
Box materialCarbon steel,side 3mm,bottom 4mm
Hydraulic cylinder no.(set)2
Hydraulic cylinder diameter(mm)110
Hydraulic cylinder positionAt the center of the truck bottom
Discharge typeRear tipping
