HOT SALE! Dongfeng 4*2 5-7tons dump tipper truck for Philippines
Dongfeng duolika 4*2 light duty dump truck, adopts dongfeng duolika 4*2 LHD single row driver cab, 5 speed gearbox, CY4102 chaochai 120hp diesel engine, 3800mm wheelbase, etc.
And the loading capacity of dongfeng duolika dump truck is about 5tons-7tons, with the dump tipper box body dimension(L*W*H): 4300*2100*600(mm), and the overall dimension(L*W*H): 6350×2150×2500(mm).

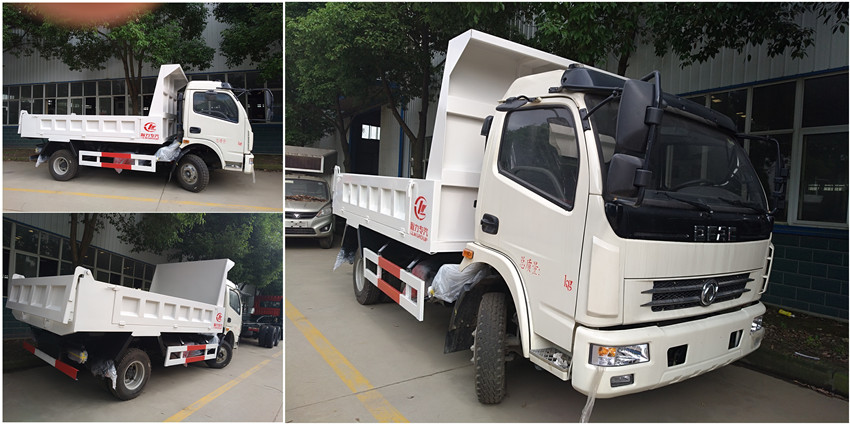

More pictures of hot sale dongfeng duolika 120hp dump truck as below
DONGFENG duolika 5-7tons dump truck for sale

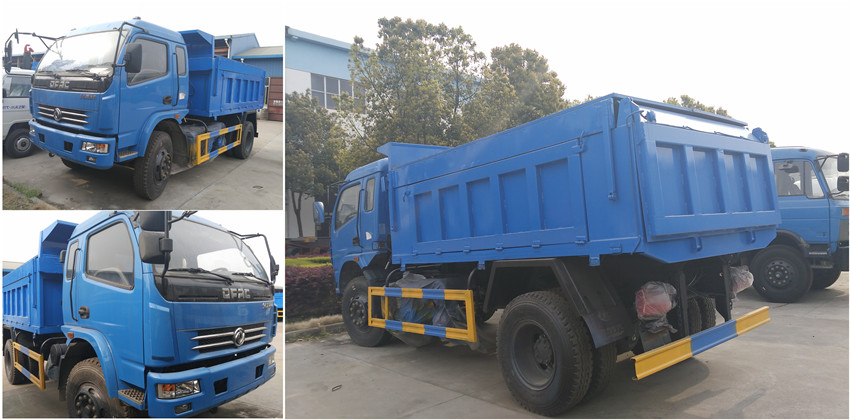

hot sale high quality dongfeng 4*2 LHD dump tipper truck with hydraulic environmental protection cover
main techinical parameters of hot sale dongfeng 4*2 LHD 5.4cubic meters dump tipper truck as below
Items | Descriptions | Specifications and Types |
General | Truck Name | DONGFENG 4*2 LHD Dump truck for sale |
Drive Type | 4*2 | |
Total mass(kg) | 7490 | |
Fact Loading Capacity(kg) | 5,000-7000KGS | |
Curb Weight (kg) | 3800 | |
Overall Dimensions L*W*H(mm) | 6350×2150×2500(mm) | |
Engine | Engine Model | CY4102 |
Engine Brand | Chaochai | |
Fuel Type | Diesel | |
Power | 88kw/120HP | |
Emission Standard | Euro III | |
Displacement(ml) | 3856 | |
Engine Type | 4 cylinder Vertical, in-line, water-cooled, 4-stroke | |
Chassis | Chassis Brand | Dongfeng |
Front/Rear Axle Load(KG) | 3090/4400 | |
Tire No. | 6 | |
Tire Specification | 7.50R16 | |
Wheelbase (mm) | 3800 | |
Axle No. | 2 | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Steering Wheel | Left Hand Drive with power-assisted | |
Tipping system | Box inner dimension(mm) | 4300*2100*600 |
Box material | Carbon steel, side sheet: 3mm thickness, bottom 4mm thickness | |
Hydraulic cylinder position | Double cylinders at the center of the truck bottom | |
Discharge type | Rear tipping | |
remark | Clients choose to install hydraulic environmental protection cover |
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
