20m3 lpg gas storage tank for anhydrous ammonia for export
2023-11-23 21:42:00   source:www.trucksinchina.com    clicks :



Hot sale 10tons surface lpg gas storage tank for anhydrous ammonia for export

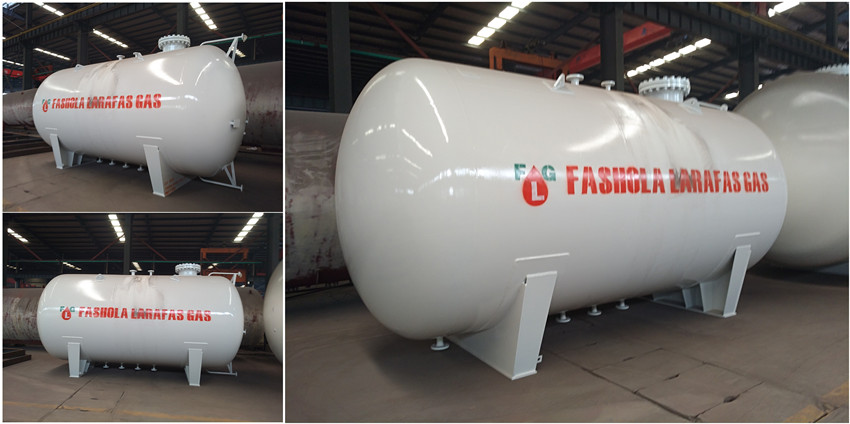

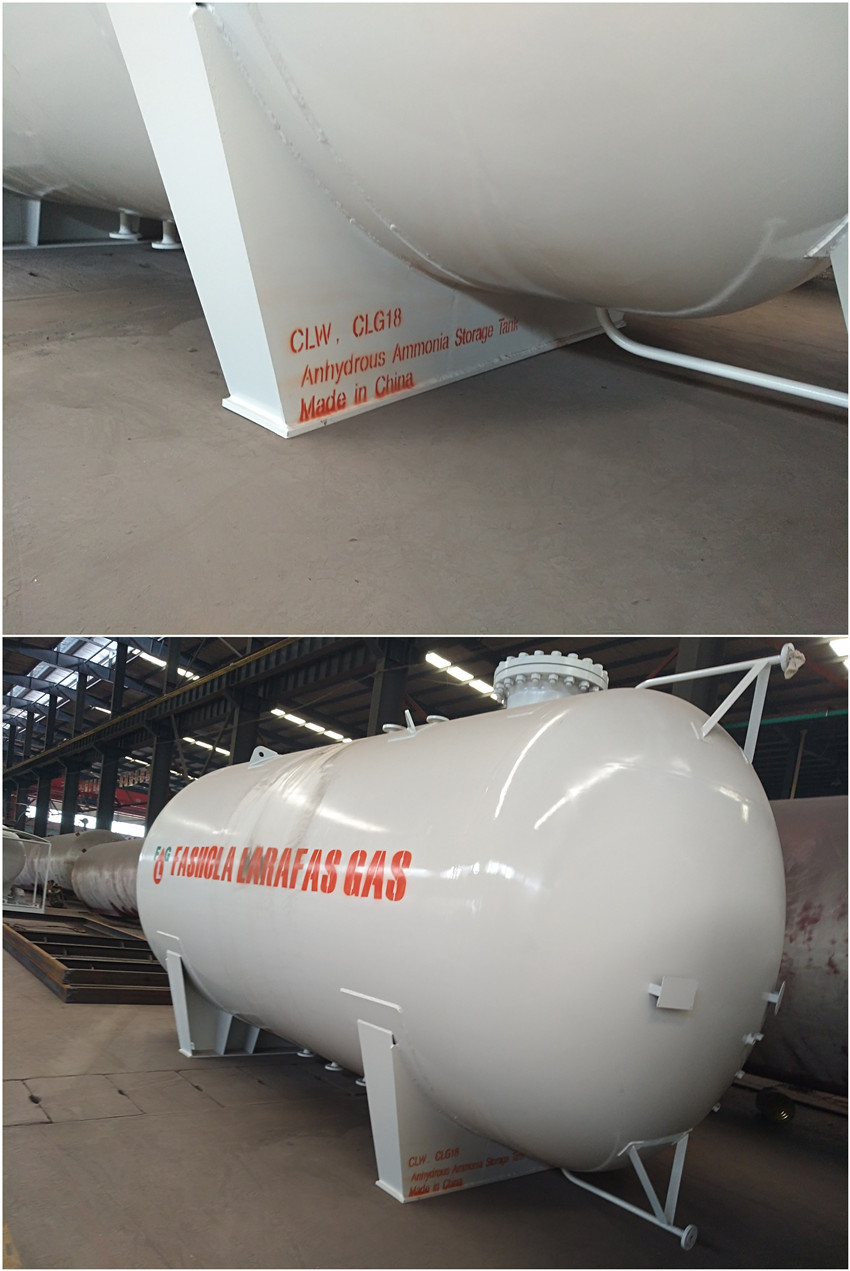

Last month, we Chengli Special Automobile Co., Ltd. receive an order of 20,000Liters anhydrous ammonia storage tank overseas. After one month' production, we have finished. Look at the pictures of finished 20cubic meters lpg gas storage tank for anhydraouc ammonia as below.
hot sale! 20m3 lpg gas storage tank for anhydrous ammonia

high quality and best price 20m3 anhydrous ammonia storage tank for export

 main technical parameters of hot sale anhydrous ammonia storage tank manufactured by Chengli Special Automobile Co., Ltd. as below

ItemUnitMain parameters
Product name LPG gas storage tank for sale (20,000L)
Loading medium LPG gas (Anhydrous ammonia)
Overall dimension(L*W*H)mm6162*2132*2710
Tank dimension(inner diameter*thickness*length)mmDN2100*16*6162
Tank volumem320
Tank thicknessmm16
End heads thicknessmm16
Curb masskg6162
Loading capacityKg9880
Designed pressureMpa2.16
Working pressureMpa≤1.6
Working temperature≤50
Hydraulic test pressureMpa2.22
Air tight test pressureMpa1.77
Medium densityKg/m3580
Corrosion allowancemm1.5
Tank and main Material pressure componentsQ345R、16Mnlll
Standard<
Chosen assemblySafety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.


Liquid ammonia storage tank is widely used for chemical plants to store liquid ammonia. And the manufacturing process of lpg gas tank for ammonia is line with China National Pressure Vessel standard.

Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years' development, we could offer lpg gas tank, lpg gas trailer, lpg gas delivery truck, lpg gas dispensing truck, skid lpg gas filling station, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
