customized HOWO 21m telescopic aerial working platform truck for sale
Aerial platform truck also called articulated boom lift,truck mounted aerial platform, aerial work platform,hydraulic beam lifter, bucket truck ,bucket boom truck ,truck mounted crane ,truck mounted aerial lift , telescopic platform truck , aerial working platform , truck mounted aerial working platform .
Aerial platform truck superstructure :
1 Aerial working height 12m,14m,16m,18m,20m,20m,14m
2 the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial basket is moving system with dual action commands, one at ground level
and the other at the level of the basket
4 truck equipped with two rotating amber lights
5 Aerial platform working truck equipped with balance valve ,emergency valve to
keep safety when people overhead working
This aerial working platform truck adopts 5 sections hexagon telescopic crane boom, the max working range is 12.6m, the max working height is 23m; the working range is 5.1m at the max working height, 360°full rotation. H shape outriggers, Horizontal span of the outrigger is 4200mm;the Longitudinal span of the outriggers is 4200mm. the rated loading capacity of the high altitude bucket ≤220㎏; while the dimension of the bucket is 1100X700X1150 (mm).
Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit.
SINO TRUK HOWO 4*2 LHD telescopic crane aerial working platform truck adopts SINO TRUK HOWO L3W series 2080mm wide one row and a half driver cab, 4200mm wheelbase, YC4E140-33 yuchai 140hp Euro 3 diesel engine, 6 speed manual gearbox, 3.2tons front axle/8tons rear axle, 8.25R20 rail tires, power steering and air cut braking, etc.

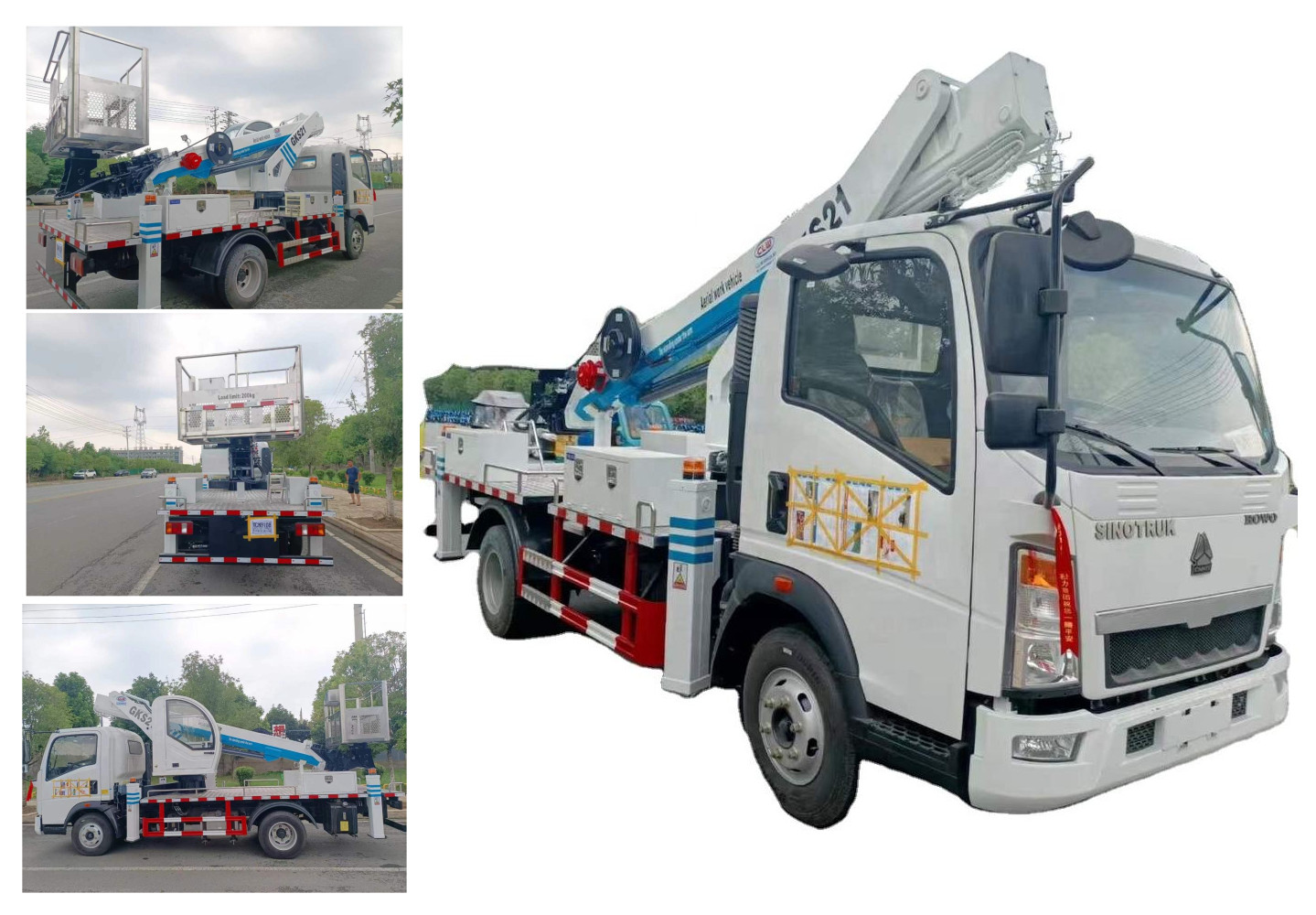

HOT SALE! HOWO 21m aerial working platform truck
main technical parameters of HOWO 21m aerial working platform truck is as below.
| Whole Truck Main Technical Parameter | ||||
| Product Name | HOWO brand telescopic overhead working truck for sale(23m) | Gross Vehicle Weight (kg) | 9900(Kg) | |
| Curb Weight (kg) | 9705(Kg) | Overall Dimension(mm) | 8010×2330×3390(mm) | |
| Working Height(m) | 23m | Cab Allowed Persons | 3 | |
| Axle No. | 2 | Wheelbase (mm) | 4200mm | |
| Chassis Technical Parameter | ||||
| Chassis Model | ZZ1107 | Chassis Name | Truck Chassis | |
| Chassis Brand | SINO TRUK HOWO | Manufacturer | SINO TRUK HOWO Company | |
| App./ Dep. Angle(º) | 18/13(°) | Tire Spec. | 8.25R20 rail tires | |
| Leaf Spring No. | 11/11+7 | Front/rear suspension (mm) | 1160/2070,(mm) | |
| Fuel Type | Diesel | Front/rear tread(mm) | 1805/1595(mm) | |
| Drive Type | 4x2 | Driver cab | SINO TRUK HOWO L3W 2080mm one row and a half driver cab | |
| Steering Type | Power steering | Gear Box | 6 speed gearbox, Manual | |
| Brake | Air cut brake | FUEL type | Diesel | |
| Max speed(km/h) | 95km | Front/rear axle | 3.2ton/8ton | |
| Engine Technical Parameter | ||||
| Engine Model | YC4E140-33 | Emission Standard | Euro Ⅴ | |
| Displacement ( ml ) | 4257 ml | Power (KW) | 105KW/140hp | |
| Work platform parameter | 1. rated loading capacity of the high altitude bucket ≤220㎏; while the dimension of the bucket is 1100X700X1150 (mm). | |||
| 2, 5 sections hexagon telescopic crane boom | ||||
| 3, he max working range is 12.6m | ||||
| 4, max working height is 23m | ||||
| 5, working range is 4.4m at the max working height | ||||
| 6, 360°full rotation. | ||||
| 7, 360°full rotation. H shape outriggers, Horizontal span of the outrigger is 4200mm;the Longitudinal span of the outriggers is 4200mm | ||||
| 8, Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit. | ||||
| 9 the truck color upon request, free to paint company logo | ||||
