ISUZU Euro 5 P6 Mobile LED advertising truck for sale
Isuzu brand 4*2 LHD P6 mobile LED advertising truck, two side with P6 LED screens, and one side screen with lifting function, choose hydraulic stage platform(9.7m2).
More pictures of hot sale ISUZU mobile LED billboard advertising truck as below

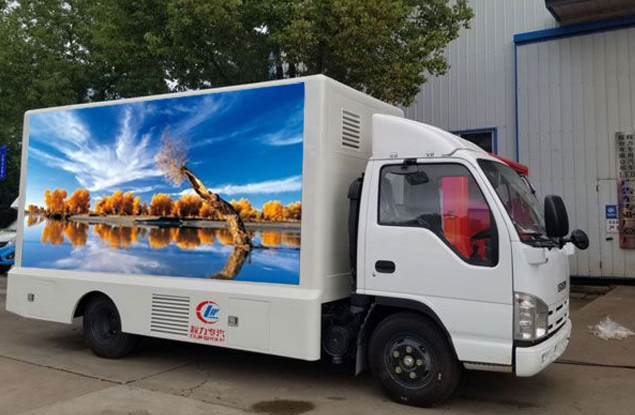

hot sale ISUZU 100P 98hp diesel mobile LED truck

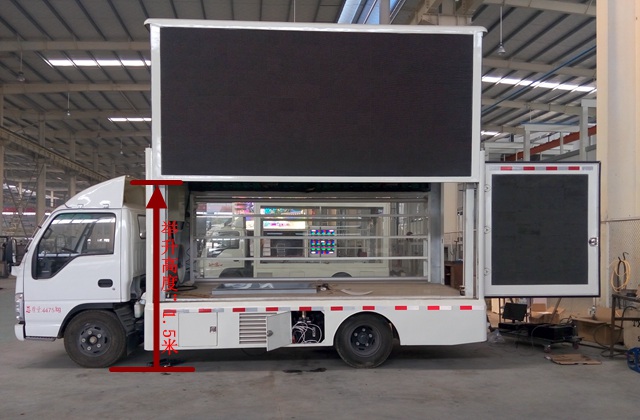

side screen can be flip up and down(1.5m) for Mobile LED advertising truck

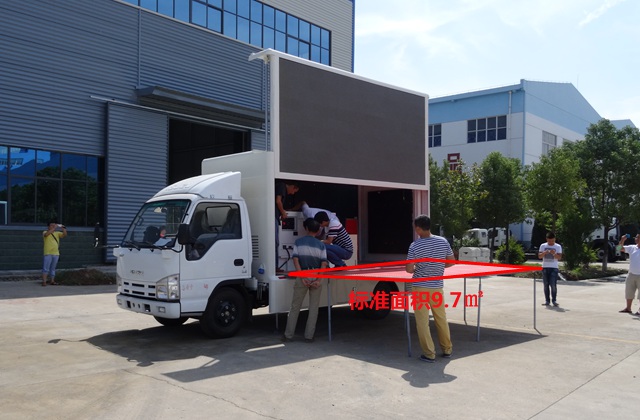

hydraulic stage platform(9.7m2) for mobile LED truck
ISUZU 100P P6 mobile LED advertising truck for sale
main technical parameters of hot sale ISUZU Euro 5 mobile LED advertising truck as below
| Main technical parameters | |||
| Product name | ISUZU MOBILE LED billboard truck for sale | Product model | CLW5040XXCQL5 |
| Total mass(Kg) | 4495(Kg) | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 4365(Kg) | Overall dimension(L*W*H)(mm) | 5995×2040×2990(mm) |
| Side screen area P6 | 3840*1728=6.65m2 | Rear screen area | 1280*1440=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 24/12(°) | Front/rear suspension(mm) | 1015/1620(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3360 |
| Axle load(Kg) | 1805/2690 | Max speed(Km/h) | 98 |
| Truck chassis | |||
| Truck chassis model | QL1040A6HAY | Manufacturer | ISUZU company |
| Tire specification | 7.00R16 8PR | Tire nos. | 6+1 |
| Steel spring | 3/3+2 | Front/rear tread(mm) | 1377/1425 |
| Driver cab | ISUZU 100P single row luxurious driver cab with air conditioner and power steering | Brake | Oil cut brake with vacuum booster |
| Fuel type | Diesel | Gearbox | ISUZU MSB gearbox |
| Emission standard | Euro 5 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| 4KH1CN5LS | ISUZU | 2999 | 72 |
Isuzu 4*2 LHD mobile LED advertising truck adopts ISUZU brand LHD 4*2 truck chassis, ISUZU Euro 5 4KH1CN5LS 98hp diesel engine, ISUZU MSB 5 speed gearbox, ISUZU single row luxurious driver cab with conditioner and power steering, 2tons front axle/4tons rear axle, 7.00R16 tires *6+1, 3360mm wheelbase, etc.

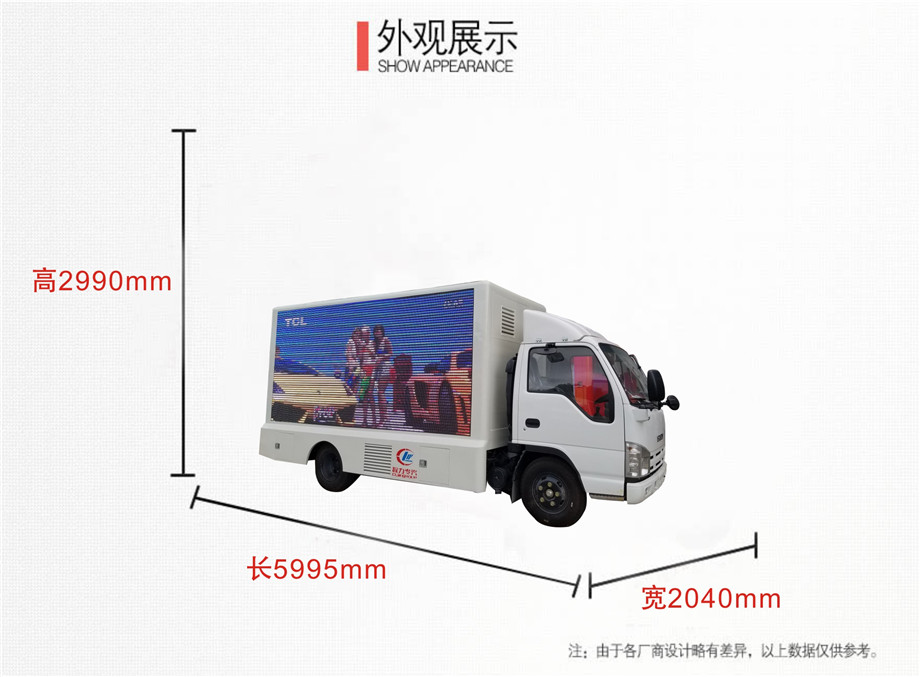

The overall dimension(L*W*H) of ISUZU Mobile LED truck：5995*2040*2990(mm), truck model: CLW5040XXCQL5.
1, the right side of the driver cab is with high quality P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1728=6.65m2),choose to install the lifting side screen is with hydraulic lifting stage(stage area: 9.7m2) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P6 screens.
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW sicense diesel generator unit.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.
