Factory direct sale best price CLW brand 5m3 cistern truck for sale
water truck is also called spray truck, multifunction watering truck, landscaping watering truck, water tanker, water wagon etc., widely used in road rinsing, landscaping etc., It possess multi features such as watering, dust suppression, spraying pesticide, cleaning rail, drain, carrying water, emergency fire fighting, etc.

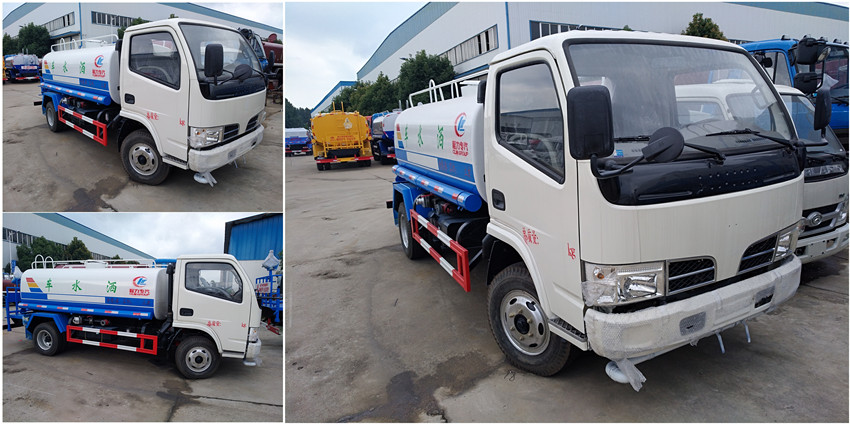

CLW brand 5m3 water cistern truck for sale
main technical parameters of hot sale CLW brand 5m3 cistern truck as below
| main technical parameters of CLW brand 5,000Liters water truck for sale | ||||
| Truck | Truck name | CLW brand 5,000Liters water truck for sale | Price | See below |
| Chassis model | CLW | Tank volume (m³) | 3.5-5 | |
| Total mass(kg) | 6495 | Overall dimension (mm) | 5990×1960×2380 | |
| Curb mass(kg) | 3250,3315 | Tanker dimension(mm) | 3300×1500×1000 | |
| Loading capacity (kg) | 3050 | Wheelbase(mm) | 3300 | |
| Engine | Model | CY4102 | Manufacturer | Chaochai |
| Hp /displacement | 95/3856 | Type | 4 cylinders in line | |
| Oil consumption (100KM/L) | 9 | Emission standard | Euro 2/Euro 3 | |
| Chassis | Driving type | 4×2 LHD/RHD | Front/rear tread(mm) | 1506/1466 |
| Max speed(km/h) | 90 | Front/rear suspension(mm) | 1032/1658 | |
| Max climbing grade (。) | 30 | Approach/departure angle(。) | 17/13 | |
| Mini ground clearance (m) | 0.18 | Axle load(kg) | 2620/3875 | |
| Tyre spefication | 7.00-16 | Steel spring | 8/9+5,6/8+4 | |
| Driver cab | Full metal flathead driver cab with sky window and radio | |||
| Front axle | 1.5T | |||
| Rear axle | 3T | |||
| Clutch | Φ275 spring clutch | |||
| Gearbox | Manual 5 speed | |||
| Special function | Power | 9.25KW | rotation | 1450r/m |
| Flow | 40cbm/h | Water sprinkling width | ≤14m | |
| Self-sucking height | ≤6.5m | Self-sucking time | ＜4minutes | |
| Water range(column) | ＜30m | Water range(mist) | ＜18m | |
| Water cannon head lift | ＜90m | Water pump model | Self-sucking centrifugal pump; | |
| Water pump brand | 80QZB-60/90 | Tanker material thickness | 4mm | |
| Standard devices | Front flushing, rear sprinkling, side spraying, water cannon, self-discharging valve, filter net, fire hose coupling, working platform, water level view pipe, Conveying Water Pipe, etc. | |||
The main technical advantages of CLW brand water truck manufactured by Chengli Special Automobile Co., Ltd. as below
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
