JMC mobile LED billboard advertising vehicle, adopts JMC Brand 4*2 LHD truck chassis, 3360mm wheelbase, JMC 108hp diesel engine(Euro 4), JMC single row driver cab, 7.00R16LT 8PR tires*6+1, 5 speed gearbox, 1.5tons front axle/3tons rear axle, exhausting brake, etc.
The overall dimension(L*W*H) of JAC Mobile LED truck：5995*1880*2900(mm), truck model: CLW5040XXCJ.
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2, lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens.
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2).
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.

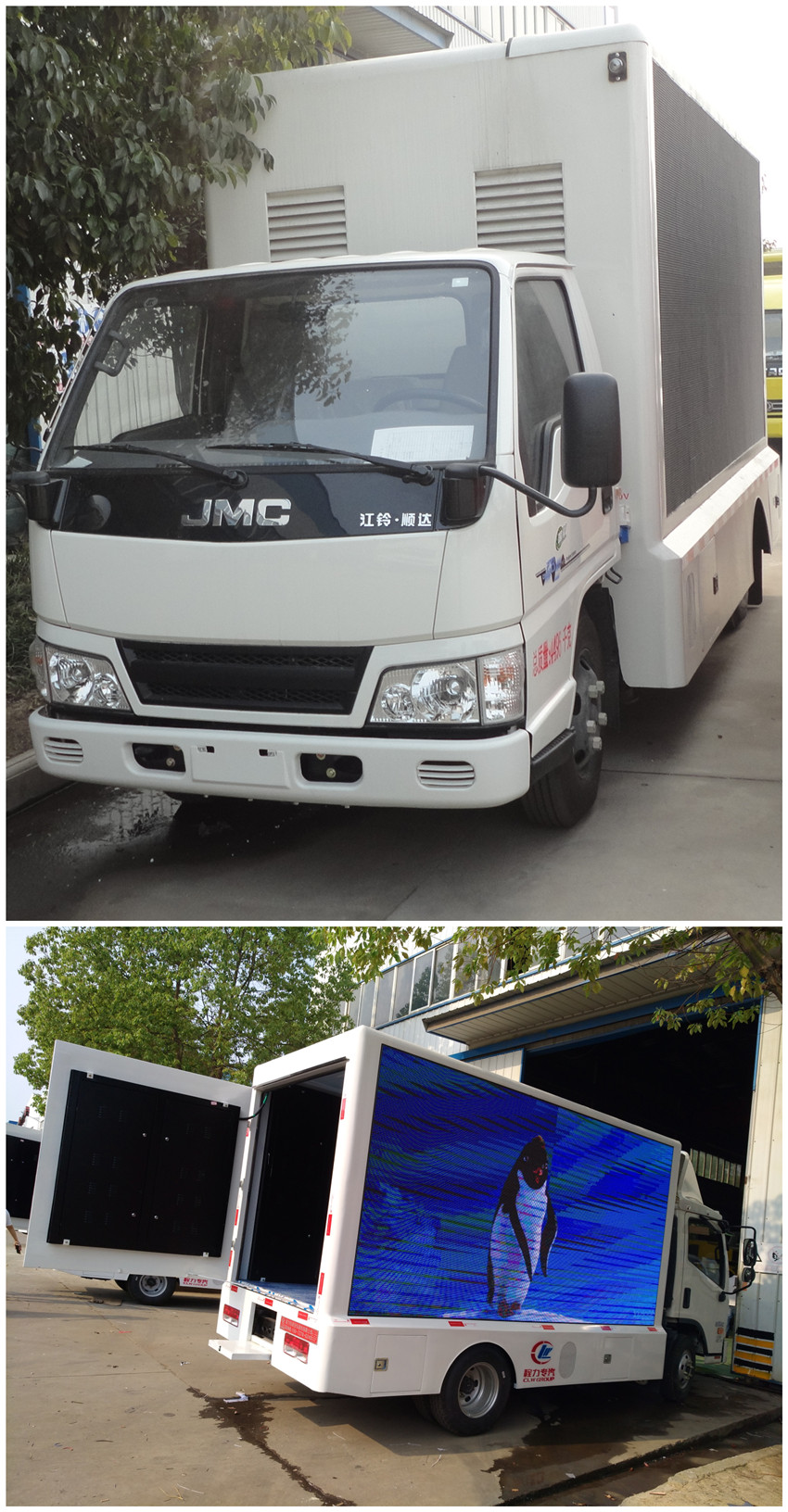

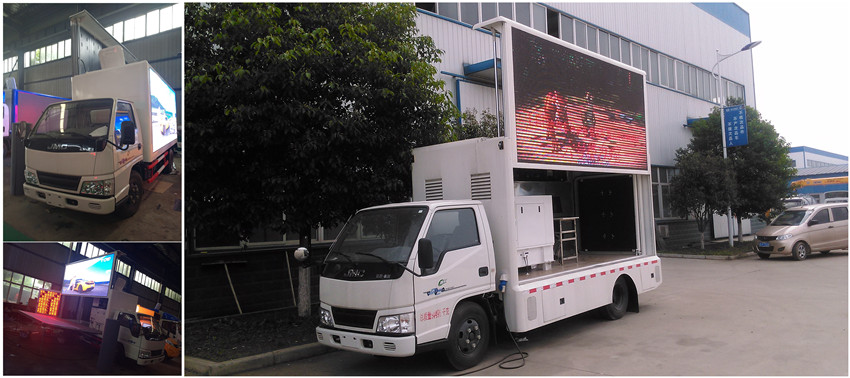

More pictures of hot sale JMC brand P6 mobile LED billboard advertising vehicle as below.
JMC Brand mobile LED billboard advertising truck for sale
hot sale! JMC P6 mobile LED screen truck
One side: 6.88
Two Sides(left + right): 6.88m2*2=13.76m2
back side : 1.84m2
choosen hydraulic Stage: 10m2
| Main technical parameters | |||
| Product name | JMC MOBILE LED billboard truck for sale | ||
| Total mass(Kg) | 4495 | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 4365 | Overall dimension(L*W*H)(mm) | 5995*2030*3050 |
| Side screen area | 3840*1792=6.88m2 | Rear screen area | 1280*1440=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 27/15 | Front/rear suspension(mm) | 1065/1570 |
| Axle nos. | 2 | Wheelbase(mm) | 3360 |
| Axle load(Kg) | 1860/2635 | Max speed(Km/h) | 100 |
| Truck chassis | |||
| Truck chassis model | Jx1041tg24 | Manufacturer | JMC COMPANY |
| Tire specification | 7.00R16LT* 6+1 | Front tread(mm) | 1385 |
| Steel spring | 7/4+5 | Rear tread(mm) | 1425 |
| Driver cab | 2 | Gearbox | 5 speed gearbox |
| Emission standard | Euro 3/4 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| JX493ZLQ4 | Jmc | 2771 | 80KW/108hp |
