2 axles 20M3 vacuum tank semitrailer for South America
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of vacuum tank vehicles in China, such as sewage suction truck, septic tank truck, sludge tank truck, fecal suciton truck, vacuum tank and high pressure cleaning vehicle, etc. And we can also customize vacuum tank trailers for overseas clients.
Today, we will introduce the hot sale 2 axles 20m3 sewage vacuum tank semitrailer for client from South America.
Vacuum sewage tank trailer is composed of suction force taking device trailer , transmission shaft, vacuum suction pump, pressure tank, hydraulic parts, pipe network system, vacuum pressure gauge, depending on the dung window, hand washing device, vehicle configuration for high power vacuum suction pump and high quality hydraulic system, a casting tank, tank shell after the opening, double dump. The tank dirt can be dumped directly through the rear cover, has a high degree of vacuum (greater than the suction truck), the characteristics of large tonnage, high efficiency, wide application.
The simple drawing picture of vacuum tank semitrailer for South Africa

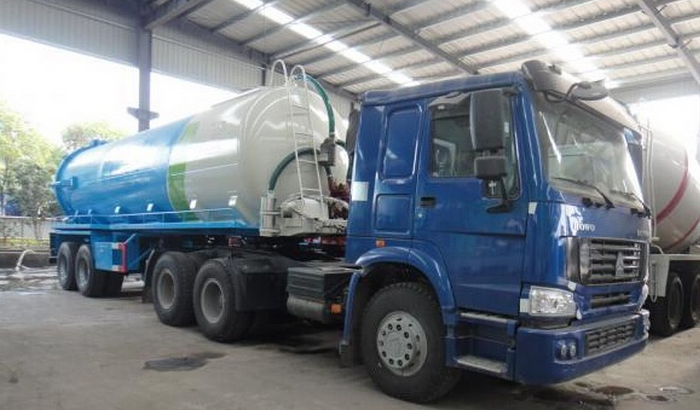

two axles sludge tank semitrailer for sale

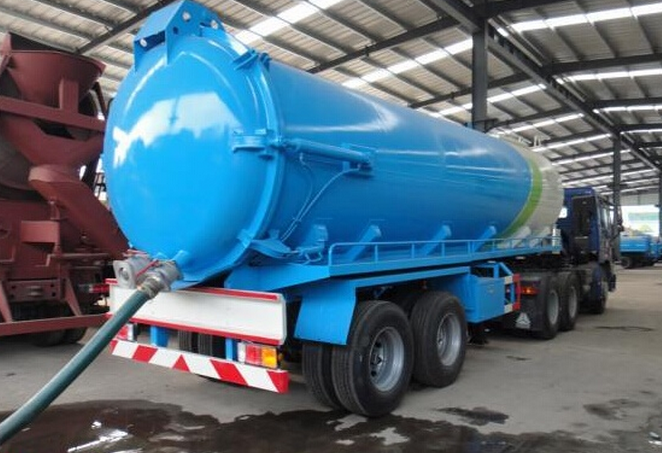

hot sale 2 axles wastes water suction tank semitrailer
main technical parameters of hot sale 2 axles vacuum tank semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below
| No.1 | Main Components | Detail Descriptions |
| 1 | Product name | Vacuum tank semitrailer |
| 2 | Overall dimension(L*W*H) | 10.2*2.5*3.5(m) |
| 3 | Vacuum tank volume | 20m3 |
| 4 | Vacuum tank | 1,Vacuum tank volume: 20m3 2,Tank material: 6mm thickness 316 stainless steel 3,Vacuum tank dimension(Diameter*Length): 1.8*8.2(m) 4,Vacuum pump model: water ring vacuum pump 5,Front-installed Hydraulic lifting cylinder to tip the tank 6,Secondary Engine: weichai power 4102(secondary engine drives the vacuum pump and hydraulic system) 7, Tipping: the back door can be hydraulic opened and tipped(the back door can be operated by the hydraulic switch with self-discharging function) 8,Sucking hose: one 8m length sucking hose |
| 5 | Driving system | 2*13ton Fuwa axles, 8pcs *10.00R20 radial tyres with 8pc rims, merchanicl steel spring suspension,,28tons landing outriggers, 50#/90# tractor kingpin. |
| 6 | Special parts | The special parts of the vacuum tank semitrailer are vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, vacuum tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, side water tanker with high pressure pump, |
| 7 | Brake system | Double line air brakes |
| 8 | Electronic system | Complete 24V system in water proof installation,rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights, etc. |
| 9 | Remark | The production time is about 30days. The price is valid for one month. |
More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
