HOT SALE! SHACMAN brand 4*2 12cbm/14cbm/16cbm compacted garbage truck for sale
Customized SHACMAN brand 4*2 LHD 12cbm-16cbm refuse garbage truck, adopts SHACMAN brand L3000 one row and a half driver cab, 4.8T front axle/10T rear axle, 10.00R20 rail tires, electric windows and doors, central locks, air conditioner, WP4.6NQ220E61 weichai 220hp diesel engine/ YCS06245-60 yuchai 245hp diesel engine, fastgear 8 speed manual gearbox, etc.
The overall dimension of SHACMAN brand 4*2 12cbm-16cbm garbage compactor truck is 8620,8820,9020×2500×3300(mm).It is with the volume of 12cbm/14cbm/16cbm.
The volume of the compactor garbage van is 12-16m3,and with the wastes loading capacity of about 10-12tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

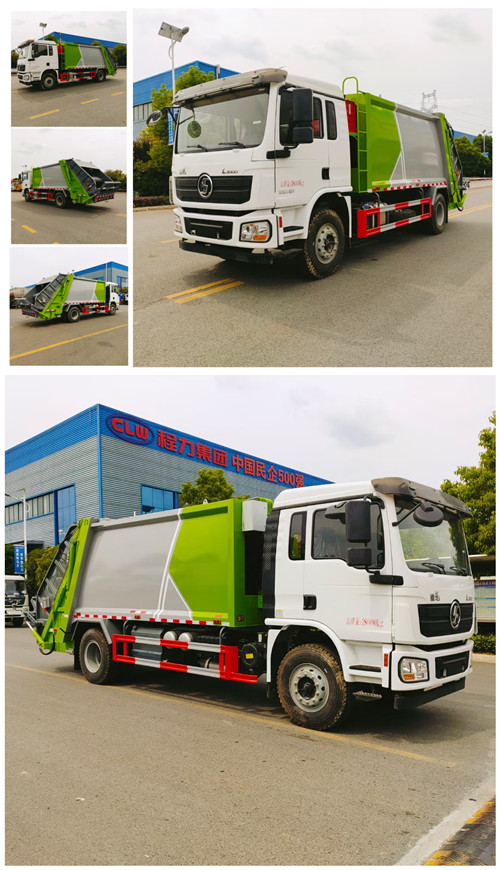

More pictures of SHACMAN Brand 4*2 L3000 12cbm/14cbm/16cbm garbage compactor truck is as below.
customized SHACMAN L3000 4*2 LHD 13m3 garbage compactor truck for sale
main technical parameters of SHACMAN L3000 4*2 LHD 13m3 garbage compactor truck is as below.
| 1 | Product name | SHACMAN L3000 4*2 LHD 13m3 garbage compactor truck |
| 2 | Truck chassis model | SX1189LA1F1C |
| 3 | Overall dimension(L*W*H) | 8620,8820,9020×2500×3300 |
| 4 | Total mass(kgs) | 18000 |
| 5 | Curb mass(kgs) | 10650,10950 |
| 6 | Rated mass(kgs) | 7220,7155,6920,6855 |
| 7 | Volume | 12CBM/14CBM/16CBM |
| 8 | Max speed | 89kw/h |
| 9 | Wheelbase | 4500 |
| 10 | Axle nos. | 2 |
| 11 | Driver cab | SHACMAN L3000 one row and a half driver cab |
| 12 | Approach/departure angle(°) | 21/10 |
| 13 | Front/rear suspension (mm) | 1340/2780 |
| 14 | Front/rear tread(mm) | 1835/1860 |
| 15 | Tire specification | 10.00R20*10+1 |
| 16 | Steel Spring | 10/9+6 |
| 17 | Engine model | WP4.6NQ220E61 |
| 18 | Rated power | 162KW/220hp |
| 19 | Displacement(ml) | 4580ml |
| 20 | Fuel type | Diesel |
| 21 | Emission standard | Euro Ⅵ |
| 22 | Gearbox | 8 speed gearbox, manual |
| 23 | Front/rear axle | 5tons front axle/10tons double rear axles |
| 24 | Color | Different color upon request |
| 25 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 26 | Wastes van material | High quality China standard light duty steel |
| 27 | Operation way | PLC control way |
| 28 | Loading and discharging way | Rear overturning mechanism |
| 29 | Compacted way | Bi-directional compression |
| 30 | Wastes compacting density | ≥0.8tons/m3 |
| 31 | One working circle time for loading and discharging | ≤30s |
| 32 | Color | White color upon request |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
