Isuzu 4*2 LHD 100P double row aerial lifting bucket truck (14m)
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of high altitude operation truck, aerial working platform, overhead working truck, , Aerial work platform lift, Aerial platform truck, truck mounted aerial platform, aerial work platform, hydraulic beam lifter, bucket truck, bucket boom truck, truck mounted aerial lift, telescopic platform truck and aerial working platform(truck mounted) in China. With many years’experience in supplying, Chengli Special Automobile Co., Ltd. could design and supply ISUZU aerial working platform vehicle, ISUZU telescopic overhead working truck, Dongfeng high altitude operation truck, JMC bucket truck, JAC truck mounted aerial lift, Foton Auman aerial working platform truck, IVECO Yuejin bucket truck, forland truck mounted aerial lift, etc.

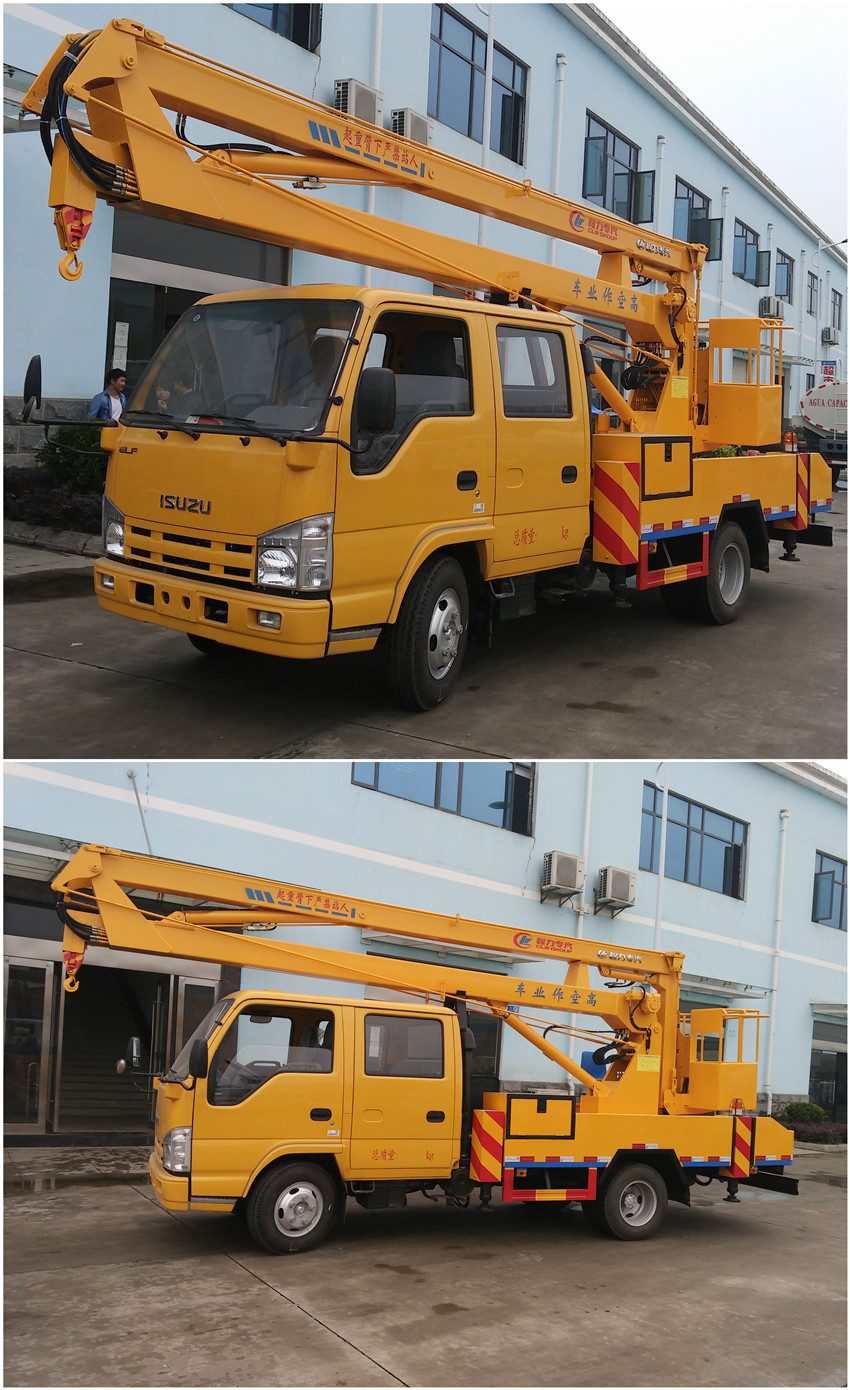

More pictures of hot sale ISUZU 100P 14m overhead working truck as below
2017s cheapest price ISUZU 98hp 14m high altitude operation truck for sale
main technical parameters of hot sale ISUZU 100P double cabs 14m hydraulic bucket truck as below
| Whole Truck Main Technical Parameter (CLW5060JGKQ4) | ||||
| Product Name | Isuzu 4*2 LHD 100P double row aerial lifting bucket truck (14m) | Gross Vehicle Weight (kg) | 5660(Kg) | |
| Curb Weight (kg) | 5335(Kg) | Overall Dimension(mm) | 7400*2000*3100(mm) | |
| Working Height(m) | 14m | Cab Allowed Persons | 2+3 | |
| Axle No. | 2 | Wheelbase (mm) | 3360 | |
| Chassis Technical Parameter | ||||
| Chassis Model | QL10703HWRY | Chassis Name | Truck Chassis | |
| Chassis Brand | ISUZU brand | Manufacturer | ISUZU company | |
| App./ Dep. Angle(º) | 24/10(°) | Tire Spec. | 7.00-16*6 with 1 spare tire | |
| Leaf Spring No. | 8/6+5 | Front/rear suspension (mm) | 1015/2180(mm) | |
| Fuel Type | Diesel | Front/rear tread(mm) | 1504/1425(mm) | |
| Drive Type | 4x2 | Driver cab | ISUZU 100P double row luxurious driver cab | |
| Steering Type | Power steering | Gear Box | ISUZU MSB 5 speed forward and 1 reverse, Manual | |
| Brake | oil brake with vacuum booster | Audio | USB interface radio | |
| Max speed(km/h) | 105km | ABS | 2ton/3ton | |
| Fuel type | Diesel | Air-conditioner | Yes, original air conditioner | |
| Engine Technical Parameter | ||||
| Engine Model | 4JB1CN | Emission Standard | Euro Ⅳ | |
| Displacement ( ml ) | 2771 ml | Power (KW) | 72(98hp) | |
| Cylinder No. | 4 in line | Engine Type | 4 cylinders | |
| Work platform parameter | 1. carbon steel working bucket of the loading capacity of 200kgs | |||
| 2, 4 sets of hydraulic outriggers with two-way hydraulic locks | ||||
| 3, lifting capacity of the lifting hook: 1,000kgs | ||||
| 4. Max working platform height: 14m | ||||
| 5. hydraulic control, up- down operation, 360° full rotation; hydraulic oil cylinders of working arms with two-way balancing valves | ||||
| 6, three sections folding working arms | ||||
| 7, the truck color upon request, free to paint company logo | ||||
More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
