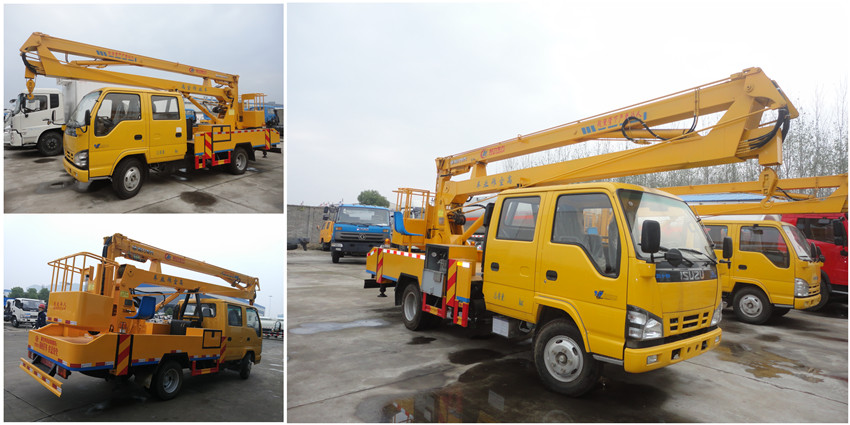

ISUZU 4*2 600P double cabs 14m bucket truck for sale

HOT SALE! ISUZU Brand 4*2 LHD 600P double cabs 120hp diesel 12-14m overhead working truck

main technical parameters of hot sale ISUZU 14m high altitude operation truck as below

Whole Truck Main Technical Parameter (CLW5050JGKQ4)
Product NameIsuzu 4*2 LHD 600P double row aerial lifting bucket truck (14m) for sale Gross Vehicle Weight (kg)5405(Kg)
Curb Weight (kg)5080(Kg)Overall Dimension(mm)7400*1980*3100(mm)
Working Height(m)14mCab Allowed Persons2+3
Axle No.2Wheelbase (mm)3360
Chassis Technical Parameter
Chassis ModelQL1070A1HWYChassis NameTruck Chassis
Chassis BrandISUZU brandManufacturerISUZU  company
App./ Dep. Angle(º)24/12(°)Tire Spec.7.00-16*6 with 1 spare tire
Leaf Spring No.8/6+5Front/rear suspension (mm)1015/2180(mm)
Fuel TypeDieselFront/rear tread(mm)1504/1425(mm)
Drive Type4x2Driver cabISUZU 600P double row luxurious driver cab
Steering TypePower steeringGear BoxISUZU MSB 5 speed forward and 1 reverse, Manual
Brakeoil brake with vacuum booster   Audio  USB interface radio
Max speed(km/h)105kmFront/rear axle 2ton/4.8ton
Fuel type  DieselAir-conditionerYes, original air conditioner
Engine Technical Parameter
Engine Model4KH1-TCG40Emission StandardEuro Ⅳ
Displacement  ( ml )2999 mlPower (KW)88(120hp)
Cylinder No.4 in lineEngine Type4 cylinders
Work platform parameter1. carbon steel working bucket of the loading capacity of 200kgs
2, 4 sets of hydraulic outriggers with two-way hydraulic locks
3, lifting capacity of the lifting hook: 1,000kgs
4. Max working platform height: 14m
5. hydraulic control, up- down operation, 360° full rotation; hydraulic oil cylinders of working arms with two-way balancing valves
6, three sections folding working arms
7, the truck color upon request, free to paint company logo

Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of high altitude operation truck, aerial working platform, overhead working truck, , Aerial work platform lift, Aerial platform truck, truck mounted aerial platform, aerial work platform, hydraulic beam lifter, bucket truck, bucket boom truck, truck mounted aerial lift, telescopic platform truck and aerial working platform(truck mounted) in China. With many years’experience in supplying, Chengli Special Automobile Co., Ltd. could design and supply ISUZU aerial working platform vehicle, ISUZU telescopic overhead working truck, Dongfeng high altitude operation truck, JMC bucket truck, JAC truck mounted aerial lift, Foton Auman aerial working platform truck, IVECO Yuejin bucket truck, forland truck mounted aerial lift, etc.

More information, please feel free to contact Ms. Anita. The hot sale line is 0086 13329899995.
