new designed 14m 16m 18m JAC hydraulic bucket truck for sale
2023-11-23 21:42:00   source:www.trucksinchina.com    clicks :

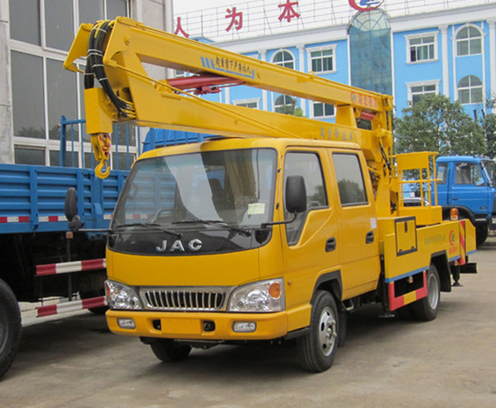

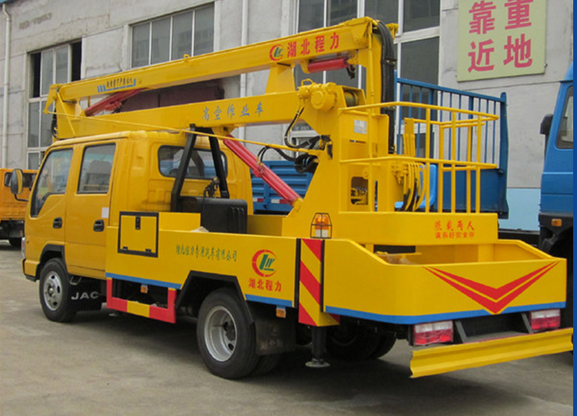

2017S new JAC 14m hydraulic bucket truck for sale

Chengli a professional manufacturer of aerial platform trucks in china, and we can provide our customers various
 configuration trucks with different prices
Aerial platform truck is ideal for maintenance of traffic lights, street lights, landscaping trees, clearing of high window
 and other high aerial works.
 Working height : 6m,8m,10m,12m,14m,16m,18m,20m,22m,24m.

Aerial platform truck also called articulated boom lift,truck mounted aerial platform,aerial work platform,hydraulic
beam lifter,bucket truck ,bucket boom truck ,truck mounted crane ,truck mounted aerial lift ,telescopic platform truck,
aerial working platform , truck mounted aerial working platform .


Aerial platform truck superstructure manufactured by Chengli Special Automobile Co., Ltd. as below.
1 Aerial working height 12m,14m,16m,18m,20m,20m,14m
2 the rotation system will allow continuous 360-
degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the
basket
4 truck equipped with two rotating amber lights
5 Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working

IMG_20180327_100458_副本

JAC brand diesel aerial working platform truck for sale 14m 16m 18m



High quality and best price JAC brand overhead working truck for sale

China famous brand JAC 14m hydraulic bucket truck for sale
main techncial parameters of hot sale JAC brand 14m overhead working truck as below

Technical parameters
 The totalmass(kg) 6200 Curb Weight(kg) 5875
 Rated the quality
 of(kg)
  Chassis Model HFC1073R83K1C3
 Approach /
 departure angle(°)
 24/11 Front overhang /
 rear overhang
 1105/2155
 Dimensions(mm) 7530X1980X3120 Compartment
 dimension(mm)

 Number of axes 2 Maximum speed 98
 Tire
 Specifications
 7.00R16 14PR,7.00-16 14PR Number of tires 6
 Front track 1440 Rear track 1425
 Wheelbase 3360 Axle load 2520/4475
 Number of spring 7/4+5,8/4+5 Type of fuel Diesel
 Emission
 Standards

Engine parameters
 Engine Model HFC4DA1-2C Engine Manufacturer
 Engine
 Displacement
 2771(ml) Engine power
 Chassis
 Description
4X2 chassis, flat cab with air conditioner, 5 speed gear box, 5 cylinder diesel engine,
with left/right hand drive optional.Steering control , oil brake
 Modified
 Description
1.height of working:10-26m,360°all rotation,three folding arms,single hydraulic cylinder,
rated load of cage:200-250kg.
2. 1 ton stretch hook,four hydraulic oil cylinder that are adjustable,without emergency power unit.
3.Equipped with two-way balancing valve,ectrical control operation,two sets of operating system.
(1set platform pilot switch and 1 set pilot switch in the cab);
ComponentEquipped with two-way balancing valve,ectrical control operation,two sets of operating system.
(1set platform pilot switch and 1 set pilot switch in the cab);
PurposeConvenient moving,used in narrow roads and streets.Aerial work platform
can be used in aloft working of electricity,
street lamp,municipal administration,gardens,transportation and so on.
 Product advantagereasonable price,multiple functions,easy operation


 More informaiton, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
