Dongfeng 6*4 LHD 22,000Liters cistern truck for sale
main advantages of hot sale dongfeng 6*4 22,000L cistern truck as below
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

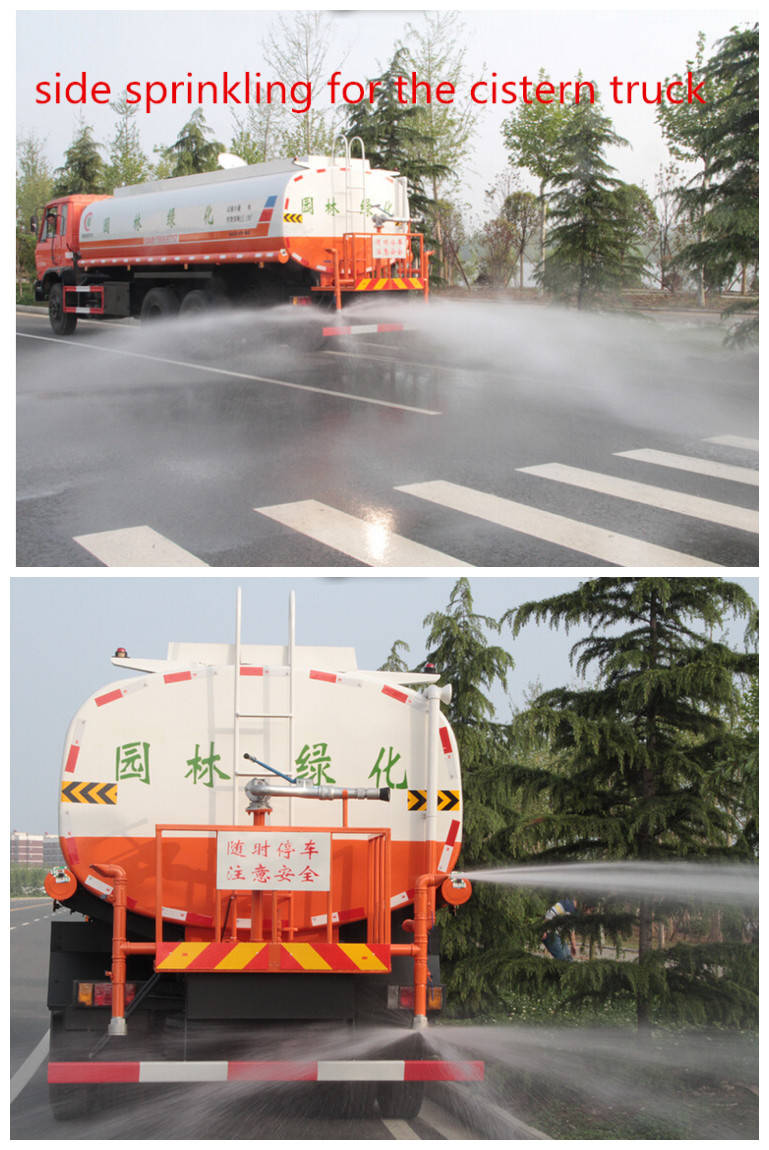

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.

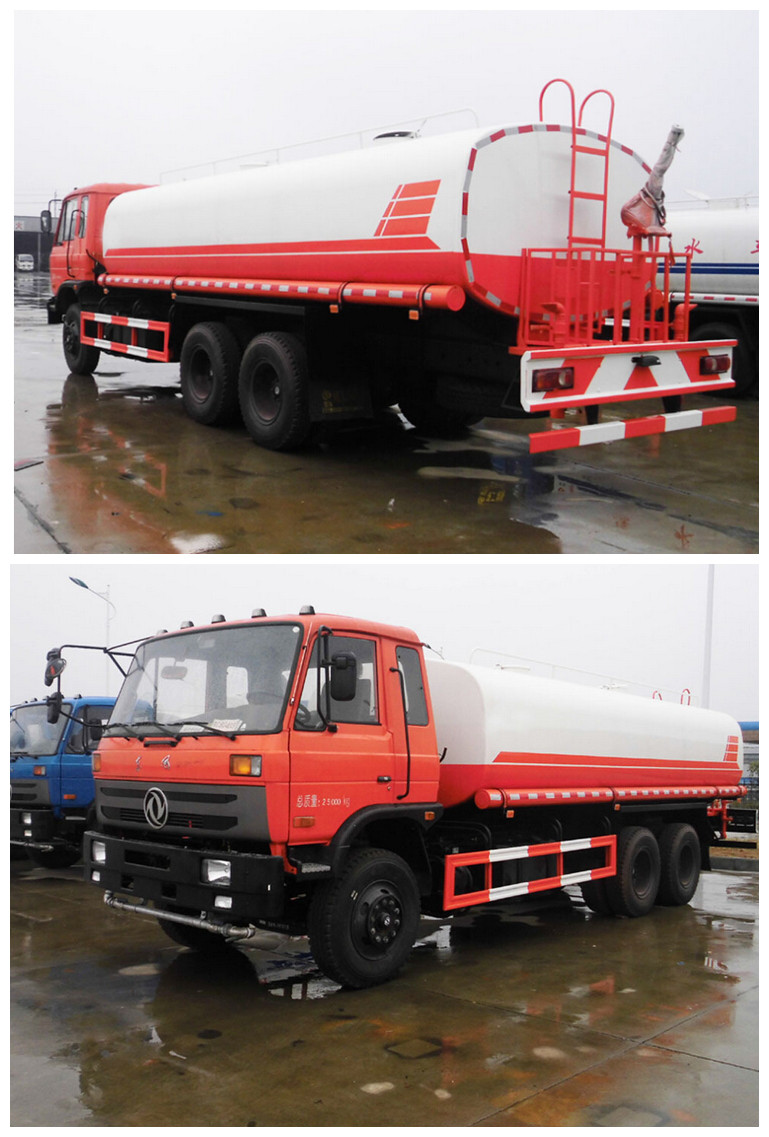

More pictures of hot sale dongfeng 210hp 22m3 cistern truck as below
dongfeng 6*4 LHD 22,000L cistern truck for sale
main technical parameters of hot sale dongfeng 6*4 210hp 22,000Liters cistern truck as below
Item | Product name | Model | No. | Manufacturer |
1 | Dongfeng 6*4 LHD/RHD 20,000Liters-22,000Liters water cistern truck for sale | EQ1208/EQ1258 | 1 | Dongfeng Automobile |
2 | Engine model | B210 33 | 1 | Dongfeng Cummins |
3 | displacement(ml)/power(kw) | 5900/155 | ||
4 | Emission standard | Euro Ⅲ | ||
5 | Brake | Air cut brake | ||
6 | Gearbox | 6 speed gearbox | ||
7 | Tires | 10.00-20 | ||
8 | Driver cab | Dongfeng flathead 153 driver cab | ||
9 | Front/rear axle | 5T / 10T | ||
10 | wheelbase( mm)/ axles no. | 4350+1300/3 | ||
11 | Water tank vacuum pump | 80QZB(F)-60/90 | ||
12 | front/rear suspension(mm) | 1245/3055 | ||
13 | Front flushing/rear sprinkling/side spraying | φ50 | ||
14 | Water sprinkling gun | φ50 | ||
15 | With rear working platform, vertical suction distance>7m, water sprinkling width>14,range>28m, with firefight coupling | |||
16 | PTO | SDQ20/33 | ||
17 | Tank material | Q235B | ||
18 | Tank material thickness(mm) | 5mm | ||
19 | Water tank volume(m3) | 20-22 | ||
20 | Overall dimension(L*W*H)(mm) | 9900*2480*3500 | ||
21 | Total mass(kg) | 24700 | ||
22 | Rated mass (kg) | 15400 | ||
23 | Curb mass(kg) | 9105 | ||
24 | Steel spring | 9/10 | ||
25 | Max speed | 85 kw/h |
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of water tank, water truck, etc. in China. We could manufacture and sell Dongfeng brand water truck, Foton water tank, FAW water truck, forland portable water truck, HOWO water truck, ISUZU cistern truck, Yuejin water sprinkling truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
