Forland mini mobile LED digital advertising truck for sale
Outdoor mobile LED displays screen advertising billboard trailer vehicle adopts P10/P6 full color screen with high brightness, stable performance, impact resistance, etc. The LED trailer vehicle is with Stereo fidelity and Clear dynamic pictures. The trailer installs light control system adjusted the brightness of the screen freely. We can change the pictures and information quickly without any installation. The pictures are combining, realizing showing the multi-form, multi-vector and multi types information. The LED billboard trailer vehicle equips with TV turner, receiving the TV signal of CATV and TVB. Wide view, Strong visual shock and perfect communication effect.
2/3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 2240x1440=3.22
Two Sides(left + right): 3.22m2*2=6.44m2
Rear: 960x1280=1.23m2

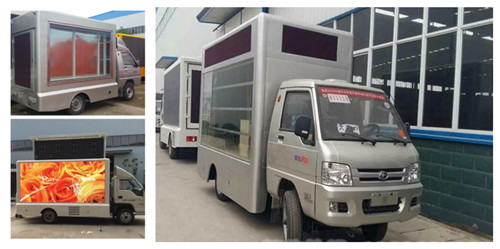

More pictures of hot sale forland mini mobile LED billboard advertising truck as below
hot sale forland mini mobile outdoor LED billboard advertising truck
The overall dimension(L*W*H) of ISUZU Mobile LED truck：4410,4640,4740x1700x2750 (mm),
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 2240x1440=3.22m2),choose to install the side screen is with hydraulic lifting stage( lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 960x1280=1.23m2)
4, truck mounted diesel generator adopts high quality YIHU 89KW gasoline generator unit.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system
| Main technical parameters | |||
| Product name | Forland MOBILE LED billboard truck for sale | ||
| Total mass(Kg) | 2620 | Diesel generator | YIHU gasoline generator unit |
| Curb mass(Kg) | 2490 | Overall dimension(L*W*H)(mm) | 5995×2040×2990 |
| Side screen area | 2240*1440=3.22m2(2370mm wheelbase)/ 2880*1600=4.6m2(2700mm wheelbase) | Rear screen area | 960*1280=1.23m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 28/9,24/9 | Front/rear suspension(mm) | 795/1245,895/1245 |
| Axle nos. | 2 | Wheelbase(mm) | 2370/2700 |
| Axle load(Kg) | 1050/1570 | Max speed(Km/h) | 80 |
| Truck chassis | |||
| Truck chassis model | BJ1030V4JV2-X1 | Manufacturer | FORLAND COMPANY |
| Tire specification | 165R13LT,175R14LT | Tire nos. | 6+1 |
| Front tread(mm) | 1605 | Rear tread(mm) | 1520,1540 |
| Steel spring | 3/5+3 | Gearbox | 6 speed gearbox |
| Emission standard | Euro 4 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| LJ465Q-2AE | Liuji gasoline | 1051ml | 45KW/61.2hp |
More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
