FOTON AUMARK 4*2 LHD RHD mobile digital billboard LED advertising vehicle for sale
3 sides mobile digital LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side screen: 6.88m2
two Sides screen(left + right): 6.88m2*2=13.76m2
Rear side screen : 1.84m2
Stagearea : 9.7m2(choose to install)
The overall dimension(L*W*H) of FOTON AUMARK Mobile LED truck：5995×2040×2990 (mm),
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2, lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system

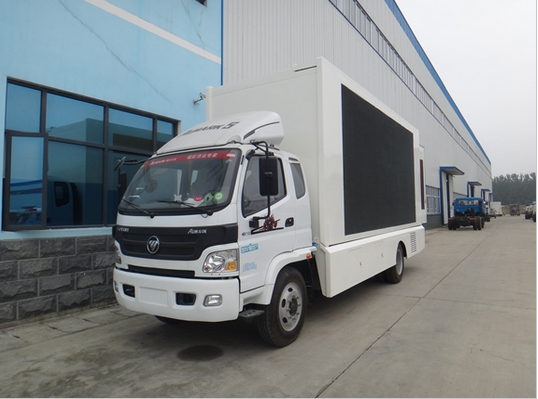

More pictures of hot sale FOTON AUMARK 4*2 LHD mobile LED digital billboard advertising truck manufactured by Chengli Special Automobile Co., Ltd. as below

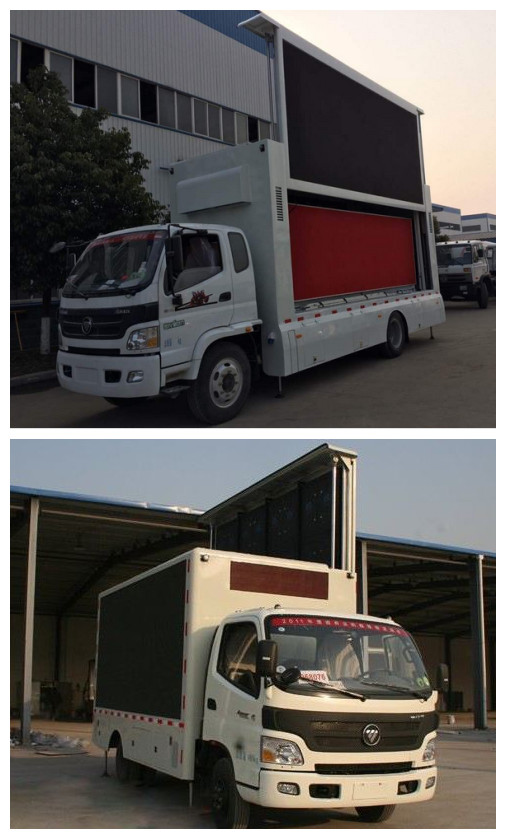

FOTON AUMARK 4*2 LHD mobile LED advertising truck for sale(with hydraulic lifting side screen)
hot sale! FOTON AUMARK 117hp diesel mobile outdoor LED billboard advertising truck
main technical parameters of hot sale FOTON AUMARK 4*2 Mobile LED advertising truck for sale
| Main technical parameters | |||
| Product name | FOTON AUMARK MOBILE LED billboard truck for sale | ||
| Total mass(Kg) | 4495 | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 4300 | Overall dimension(L*W*H)(mm) | 5995×2040×2990 |
| Side screen area | 3840*1792=6.88m2 | Rear screen area | 1280*1440=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 21/17(°) | Front/rear suspension(mm) | 1120/1500(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3360 |
| Axle load(Kg) | 1350/3145 | Max speed(Km/h) | 90 |
| Truck chassis | |||
| Truck chassis model | BJ1049V9JD6-AA | Manufacturer | Foton |
| Tire specification | 7.00R16 | Tire nos. | 6+1 |
| Approach/departure angle(°) | 20/25 | Front tread(mm) | 1530,1730 |
| Steel spring | 3/5+3 | Rear tread(mm) | 1485,1590 |
| Driver cab | 2 | Gearbox | 5 speed gearbox |
| Driver cab | FOTON AUMARK single row driver cab with air conditioner | Axle | 5tons rear axle |
| Brake | Oil cut brake | Fuel type | Diesel |
| Emission standard | Euro 3/4 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| ISF2.8s4117V | Cummins | 2780 | 87KW/117hp |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of Outdoor mobile LED advertising display truck, LED truck, digital advertising truck, LED screen truck, outdoor full color LED advertising truck, LED box truck, etc. With many years' experience in supplying, Chengli Special Automobile Co., Ltd. could design and produce ISUZU led truck, Dongfeng Outdoor mobile LED advertising display truck, forland digital advertising truck, Karry billboard advertising LED display truck, Chang'an LED display truck, JAC mobile advertising truck, HOWO scrolling advertising truck, trailer-type mobile outdoor LED truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
