Mobile LED advertising billboard semi-trailer adopts the leading truck chassis as the driving part with strong structure, flexible operation, equipping with the special audio, TV turner, etc. realizing showing Indoor large scale meeting,TC Teleconference, indoor product show, karaoke ok, etc. This is kind of LED advetising trailer is suitable for show on the road, square, etc. the advertising effect is much higher the mounted advertising screen.

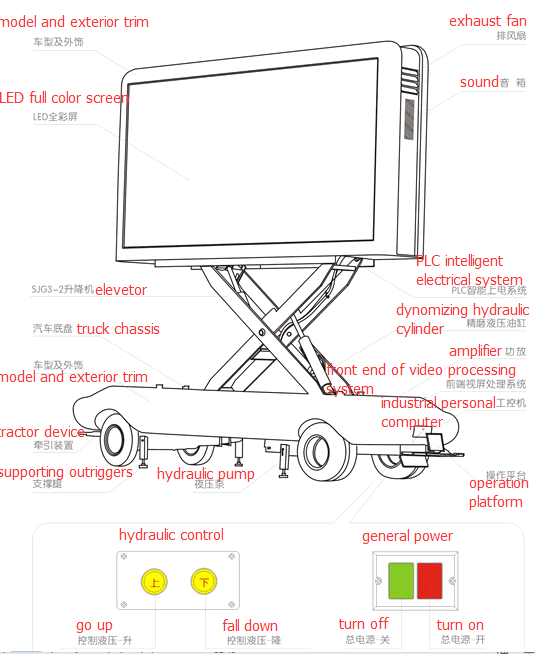

The main technical parameters of the outdoor mobile LED displays screen advertising billboard trailer vehicles is as below.
1,driving part
| Overall dimension(L*W*H) | 6600X1820X2650mm/6500*1800*3700 | Material | 1.5mm thickness steel plate |
| Truck body | Front axle rear axle | Braking | Front-wheel braking with stop lamp |
| Tires | 7.50-16tires | Total mass | 6000kgs |
| Mini turning diameter | ≤18000mm | ||
2,scissor-type hydraulic elevating platform and supporting system
| Hydraulic elevating platform | |
| Elevating type | Scissor type |
| Platform size | 3200x750x400mm |
| Loading capacity | 5,000kgs |
| Supporting stability system | 4 sets hydraulic outriggers, each hydraulic outrigger with the loading capacity of 5,000kgs |
3,LED screen Module size
| screen dimension | 4800x2400mm | Module size | 160x160mm |
| Die | R/G/B: | Pixel spacing | 10mm |
| Display brightness | ≥6500cd/㎡ | Pixel density | 10000 |
| Max power | ≤1000W/㎡ | Screen lifetime | >100,000 hours |
4,broadcasting system, Multimedia control system
| LED Industrial personal computer = | Overall dimension ：410mm(H)x210mm(W)x60mm(D),9.2inch Touch Screen | ||
| Devices: Intel Low power dual-core 1.8G 4 CPU, internal storage: storage DDR3 2G,storage：SSD32G solid hard disk； | |||
| Operation system: support DOS,WINCE,LINUX,XPE,XP | |||
| Amplifier | 1 | Audio | 120KWX2 |

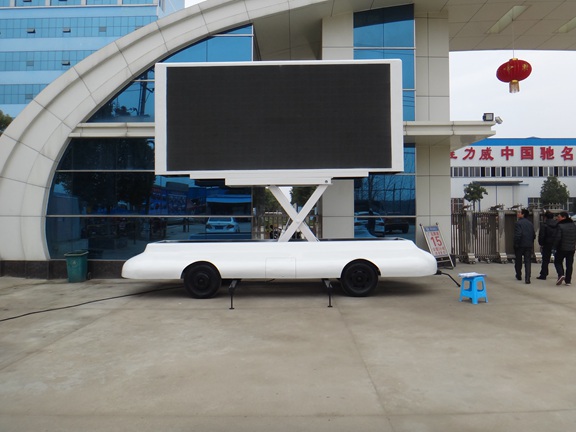

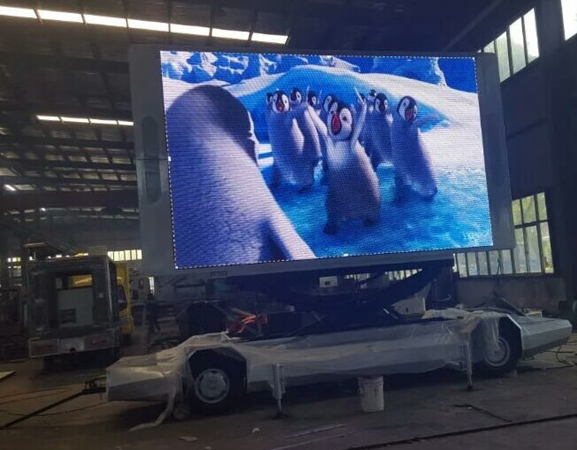

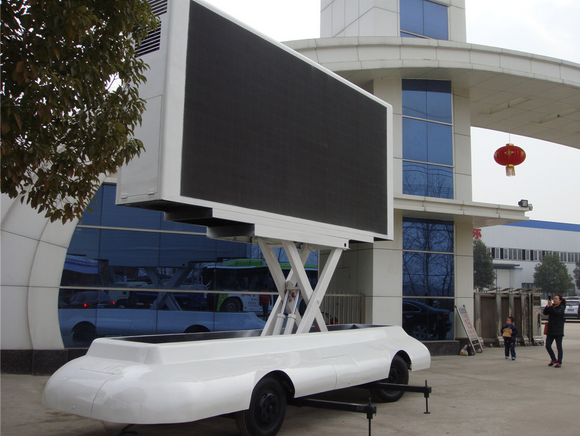

More pictures of hot sale CLW brand mobile outdoor LED advertising billboard semitrailer as below.
hot sale! 2017s mobile LED fullcolor billboard semitrailer
outdoor mobile P8 LED display screen advertising semitrailer for sale
high quality and best price CLW brand mobile digital mobile LED billboard vehicle for sale
Outdoor mobile LED displays screen advertising billboard trailer vehicle adopts P10/P6 full color screen with high brightness, stable performance, impact resistance, etc. The LED trailer vehicle is with Stereo fidelity and Clear dynamic pictures. The trailer installs light control system adjusted the brightness of the screen freely. We can change the pictures and information quickly without any installation. The pictures are combining, realizing showing the multi-form, multi-vector and multi types information. The LED billboard trailer vehicle equips with TV turner, receiving the TV signal of CATV and TVB. Wide view, Strong visual shock and perfect communication effect. More information, please feel free to contact with Ms. Anita. THe hot sale line is 0086 13329899995.
