DONGFENG CAPTAIN 4*2 LHD wrecker towing truck 4T for Ecuador
One unit of 4Tons dongfeng wrecker towing truck customizes for client from Ecuador.

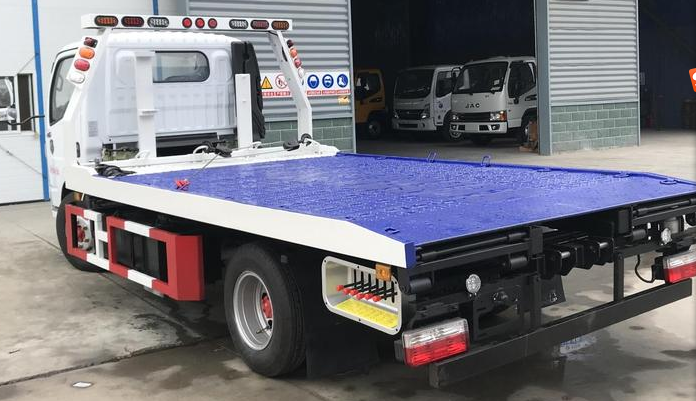

More pictures of dongfeng captain flatbed wrecker towing truck as below.
HOT SALE! 4tons dongfeng flatbed towing wrecker truck
Customized 4T wrecker towinhttp://www.trucksinchina.comg truck dongfeng for sale
Driver cab: Dongfeng captain 2030mm single row driver cab
Wheelbase: 3800mm wheelbase
Driving type: 4*2 LHD
Engine: B125 33 Cummins 92KW/120hp diesel engine, Euro 2 emission standard
Gearbox: 6+1 gears, manual type
Tire specification: 7.50R16 14PR tires*6+1 spare
Others: Power steering, clutch steering, 125L oil tanker, electric windows, central locks, 2×90Ah storage batteries, etc.
Total mass: 9100kgs
Curb mass: 5300kgs
Overall dimension(L*W*H): 7550×2350×2450(mm)
Flatbed platform bed dimension(L*W*H): 5600*2300(mm)
The upper parts of the 4tons loading capacity flatbed wrecker towing truck as below.
1, 4tons loading capacity for the upper part-flatbed body
2, 4T hydraulic winch and 20m length wire rope
3, auxiliary wheels*2
4, bilateral linkage control valve
5, caller with y alarm light
6, 4*special binding belts
7, yellow color warning light
8, Flatbed platform bed dimension(L*W*H): 5600*2300(mm)
main technical parameters of DONGFENG flatbed wrecker towing truck is as below.
Overall parameters | Product name | Dongfeng captain wrecker tow truck for sale LHD |
Total mass(kgs) | 10070 | |
Curb mass(kgs) | 5300 | |
Overall dimension (L*W*H)(mm) | 7550×2350×2450 | |
Chassis parameters | Driver cab | dongfeng captain RHD driver cab |
Approach/departure angle(°) | 22/9 | |
Front/rear suspension(mm) | 1130/2770 | |
Axles nos. | 2 | |
Wheelbase(mm) | 3800 | |
Axle load(kgs) | 4350/7645 | |
Max speed(km/h) | 103 | |
Tire specification | 7.50R16*6+1 | |
Steel spring | 8/10+7 | |
Engine model | B125 33 | |
Fuel type | Diesel | |
Emission standard | Euro 2 | |
Gearbox | 6+1 gearbox, manual | |
Upper part parameters | Flatbed dimension(L*W)(mm) | 5600*2300 |
Hydraulic winch | 4tons | |
Operation way | Bilateral linkage operation | |
Retractable Rear Lift Arm | 2.5tons loading capacity of the rear towing arm | |
Loading capacity of the flatbed | 4tons | |
Wire rope | 20m length | |
Auxiliary wheels | 2 sets | |
Special binding belts | 4 sets |
Wrecker tow truck is also called road block removal truck, tow truck, road rescue truck, road breakdown truck, etc. This kind of wrecker tow truck is with the functions of lifting, pulling and lifting-traction, etc. mainly used for road block removal vehicles, illegal vehicles of cities, road rescue, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of special purpose vehicles in China. With many years’ development, We Chengli Special Autumobile Co., Ltd. could supply water tank, fuel tank, feed truck, truck with crane, dump truck, garbage truck, wrecker tow truck, lpg gas pressure vessels, refrigerated truck, vacuum truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
