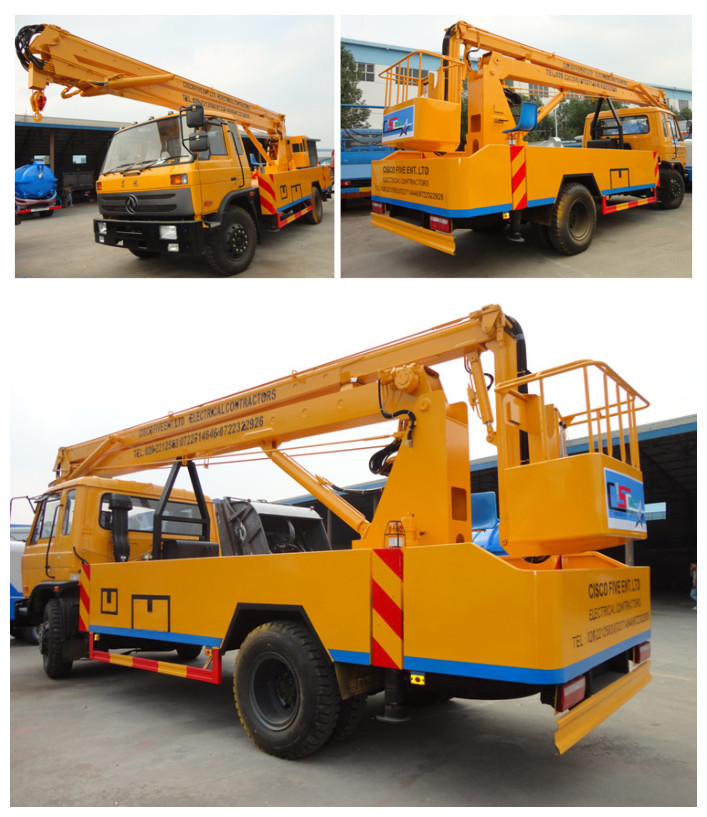

Dongfeng 4*2 RHD 18m/20m/22m Hydraulic Aerial Cage working truck for sale
hot sale CLW brand hydraulic aerial working platform truck
dongfneg 18m-22m overhead working truck for sale
Main technical parameter of hot sale dongfeng RHD aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Description | Dongfeng Chassis 18m 20m 22m Hydraulic bucket truck for sale | ||
| Drive Model | 4X2 | ||
| Chassis | EQ1141 | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 8495×2450×3310 | |
| Wheel base (mm) | 4500 | ||
| Overhang (front/rear) (mm) | 1580/2410 | ||
| Wheel track (front/rear) (mm) | 1940/1860 | ||
| Approach/Departure angle(°) | 34/20 | ||
| Weight in KGS | GVW. | 11750 | |
| Curb Weight | 12180 | ||
| Max. driving speed(km/h) | 88 | ||
| Engine | Model | B170/190 | |
| Type | 4-stroke direct injection , 6 -cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 170/190 | ||
| Emission standard | Euro III | ||
| Gearbox | 5 forwards & 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 200L | ||
| Tire | 10.00R20, 6pieces+1 spare tire | ||
| Brakes | Service brake: dual circuit compressed air brake | ||
| cab: | 3 | ||
| UPPER | |||
| Standard Equipment | 1.Equipped with working bucket, hook, 4 H-type hydraulic outriggers, 2.Equipped with three folded arms, 360 slewing, hydraulic control, on the truck/under the truck operating | ||
| Technical parameters | 1.Max operation height:14m 2.Max operation radius: 6m 3.Max working platform height 12.5m, 4.Working platform rating loading=300kg, 5.Working platform rating allowable passengers=2 6.Working platform dimension:1100*570*1000mm, 7.Degree of the overturn:360°turning(left or right) 8 Standing Legs: H model , 4pcs, controlled by hydraulic system | ||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of high altitude operation truck, aerial working platform, overhead working truck, , Aerial work platform lift, Aerial platform truck, truck mounted aerial platform, aerial work platform, hydraulic beam lifter, bucket truck, bucket boom truck, truck mounted aerial lift, telescopic platform truck and aerial working platform(truck mounted) in China. With many years’experience in supplying, Chengli Special Automobile Co., Ltd. could design and supply ISUZU aerial working platform vehicle, ISUZU telescopic overhead working truck, Dongfeng high altitude operation truck, JMC bucket truck, JAC truck mounted aerial lift, Foton Auman aerial working platform truck, IVECO Yuejin bucket truck, forland truck mounted aerial lift, etc.
More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899955.
