Customized FAW Tiger V 120hp P5 mobile LED screen truck for sale,
Technical advantages of FAW brand P6 mobile LED screen van truck is as below.
1, two sides(left and right sides) of the driver cab are with high quality HD waterproof and shake-proof full color outdoor P5 LED screens ( One side P5 screen area: 3840*1760=6.75㎡)
2, The rear back face is also with single color word screen(screen area: 1280*1440=1.84㎡)
3, Truck mounted silence diesel generator adopts high quality OUMA 15KW diesel generator unit.
4, 5cm composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audios, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, Gigabit flow Media control system, etc.
Customized FOTON AUMARK 4*2 LHD 130hp diesel P5 mobile LED screen vehicle for sale,
Customized FOTON AUMARK 4*2 LHD 130hp diesel P5 mobile LED screen vehicle, adopts
Customized FAW Tiger V outdoor LED screen truck, adopts FAW TIGER V flathead single row driver cab, dachai CA498E2-12 dachai 120hp diesel 90KW/120Hp diesel Euro Ⅱ engine, 3260mm wheelbase, 5 speed manual gearbox, 7.50R16 rail tires, air conditioner, air cut braking, etc.
Technical advantages of CLW brand P5 mobile LED screen van truck is as below.
1, two sides(left and right sides) of the driver cab are with high quality HD waterproof and shake-proof full color outdoor P6 LED screens ( One side P6 screen area: 3840*1760=6.75㎡)
2, The rear back face is also with single color word screen(screen area: 1280*1440=1.84㎡)
3, Truck mounted silence diesel generator adopts high quality OUMA 15KW diesel generator unit.
4, 5cm composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audios, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, Gigabit flow Media control system, etc.

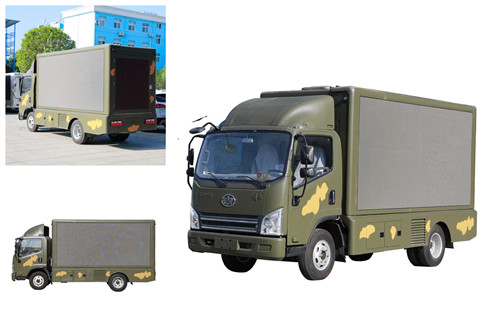

More pictures of FAW TIGER V 4*2 LHD T series 130hp diesel mobile LED screen truck is as below.
HOT SALE! FAW TIGER V 4*2 LHD T series 130hp diesel mobile LED screen truck
Main technical parameters of FAW TIGER V 4*2 LHD T series 130hp diesel mobile LED screen truck is as below.
| FAW4*2 LHD mobile LED vehicle for sale(with two sides P5 LED screens) main parameters | |||
| Product name | New FAW 4*2 LHD Mobile LED advertising truck | ||
| Overall dimension(L*W*H) | 5998×2150×3000 (mm) | Truck chassis model | CA1049 |
| Total mass(kgs) | 4495kgs | curb mass(kgs) | 4095kg |
| Axle nos. | 2 | Wheelbase(mm) | 3260mm |
| Front/rear suspension(mm) | 1150/1588 | Front/rear tread(mm) | 1650/1540 |
| Rated person | 2 (driver included) | Tyre specification | 7.50R16*6 |
| Max speed(km/h) | 90 | Approach/departure angle | 21/15 (°) |
| Axle load(kgs) | 2050/2440 | Steel spring | 7/10+3 |
| Gearbox | 5 speed transmission, manual | Power steering | Yes |
| brake | air cut braking | Driver cab | FAW TIGER V flathead single row driver cab |
| Engine model | CA498E3-12 | Emission standard | Euro Ⅱ |
| Displacement(ml) | 3168 | Rated power | 90KW/120hp |
| Fuel type | Diesel | ||
| Truck mounted LED screen | |||
| 1 | two sides(left and right sides) of the driver cab are with high quality HD waterproof and shake-proof full color outdoor P5 LED screens ( One side P6 screen area: 3840*1760=6.75㎡) | ||
| 2 | The rear back face is also with single color word screen(screen area: 1280*1440=1.84㎡) | ||
| 3 | Truck mounted silence diesel generator adopts high quality OUMA 15KW diesel generator unit. | ||
| 4 | 5cm composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audios, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, Gigabit flow Media control system, etc. | ||
| Remark: the computer is with English words, English operation system and Software playback system | |||
