hot sale Shacman F3000 40tons dump tipper truck 12 tires for sale
main parameters of hot sale SHACMAN 336hp 8*4 heavy duty 40tons dump tipper truck as below
main parameters of hot sale SHACMAN F3000 dump tipper truck | |||
product name | SHACMAN F3000 6*4 dump tipper truck | Product brand | SHACMAN |
Wheelbase(mm) | 4600+1350 | overall dimension(l*W*H) | 10375*2500*3450(mm) |
front/rear suspension(mm) | 1525/2900 | front/rear tread(mm) | 2036,1860/1860 |
gross weight(kg) | 25000kgs | axle nos. | 3 |
approx payload (kg) | 12470kgs(actual load 35tons-40tons) | cargo body dimension(L*W*H) | 7700*2300*1600(mm) |
approach/departure angle | 19/23 | max speed(km/h) | 90 |
Cab capacity | 3 | cab type | SHACMAN DELONG F30000 |
chassis technical parameters | |||
chassis model | SX3255NR464 | Chassis manufacturer | Shacman |
gearbox | 10JSD140(10 forward shift with 2 reverse) | transmission type | manual |
steering type | LHD | rear axle | MAN 18000KGS |
frame type | strengthen, side rails | traction tpe | 6*4 |
Brake system | air brake |
|
|
leaf spring no. | 10/12 | tire size/type | 12.00R20 18PR (10+1) |
engine specification | |||
engine model | WP10.336N | Engine brand | weichai power Co., Ltd. |
fuel type | diesel | displacement(ml) | 9726ml |
Emission standard | Euro 3 | power(KW/HP) | 247/336 |
superstructure parameter | 1, strength T lifting, 24V electronic system, electronically hydraulic operation control | ||
2, loading capacity: 26m3-30m3 | |||
3, tipping type: front tipping type, rear dump type | |||
4, material: floow 8mm side &back 6mm thickenss carbon steel | |||

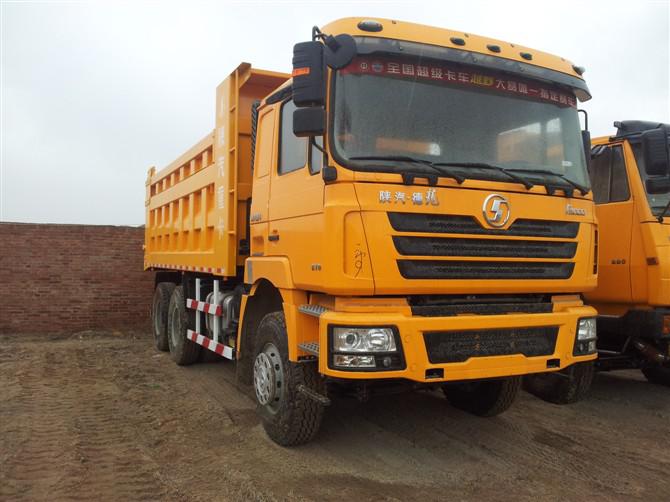

More pictures of hot sale SHACMAN F3000 dump tipper truck as below
Shacman F3000 dump tipper truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China. With many years'development, Chengli Special Automobile Co., Ltd. could offer 1tons-50tons dump tipper truck and tipper trailer, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
