5metric tons skid-mounted lpg gas refilling plant for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years' development, we Chengli could manufacture and sell surface and underground lpg gas storgae tanks, lpg gas tank trailer, skid lpg gas refilling station, lpg gas truck, etc. More information, please feel free to contact with Ms. Anita Deng.
And the best seller of lpg gas pressure vessels in 2016s is 5tons mobile skid lpg gas refilling plant with single one electronic scale or double scales.
The main parameters of hot sale 5metric tons mobile skid-mounted lpg gas refilling stations manufactured by Chengli Special Automobile Co., Ltd. as below
Design parameter | Volume (m³) | Nomidal Diameter(mm) | Thickness(mm) | Weight(KG) | External Dimensions (Length×Width×Height) | ||
Shell | Head | Tank | Filling | ||||
Filling Medium:Liquefied Petroleum Gas Design Pressure:1.77MPa |
10 |
1600 |
10 |
10 |
2950 |
3950 |
5260*1620*2210 |
12 |
1800 |
10 |
12 |
3360 |
4788 |
5034*1820*2410 | |
Main part of Tank | Item | Specification | Quantity(pc) | ||||
Drain hole | DN50 | 1 | |||||
Liquid inlet | DN50 | 1 | |||||
Liquid outlet | DN50 | 1 | |||||
Manhole | DN450 | 1 | |||||
Empty valve | DN50 | 1 | |||||
Gas line | DN50 | 2 | |||||
Safe valve | DN80 | 2 | |||||
Thermometer | M33x2 | 2 | |||||
Level meter | DN25 | 1 | |||||
Pressure gauge | M20x1.5 | 2 | |||||
Equipment | 1, Explosion-proof Motor 2, Compactor(ZW0.8/10-16) 3, Hydraulic Pump 4, Filling machine(JQ-060L-A-1G single filling gun /JQ-060L-B-2G double filling gun) | ||||||
Material of Tank and Main Pressure Parts | Q345R/Q370R | ||||||
Carried Standard | Pressure vessels,Supervision Regulation on Safety Technology for Stationary Vessels | ||||||
Safety Valve of Selection Fitting | Safety valve,Column magnetic reversible level meter,Pressure gauge,Thermometer,Cut-off valve | ||||||

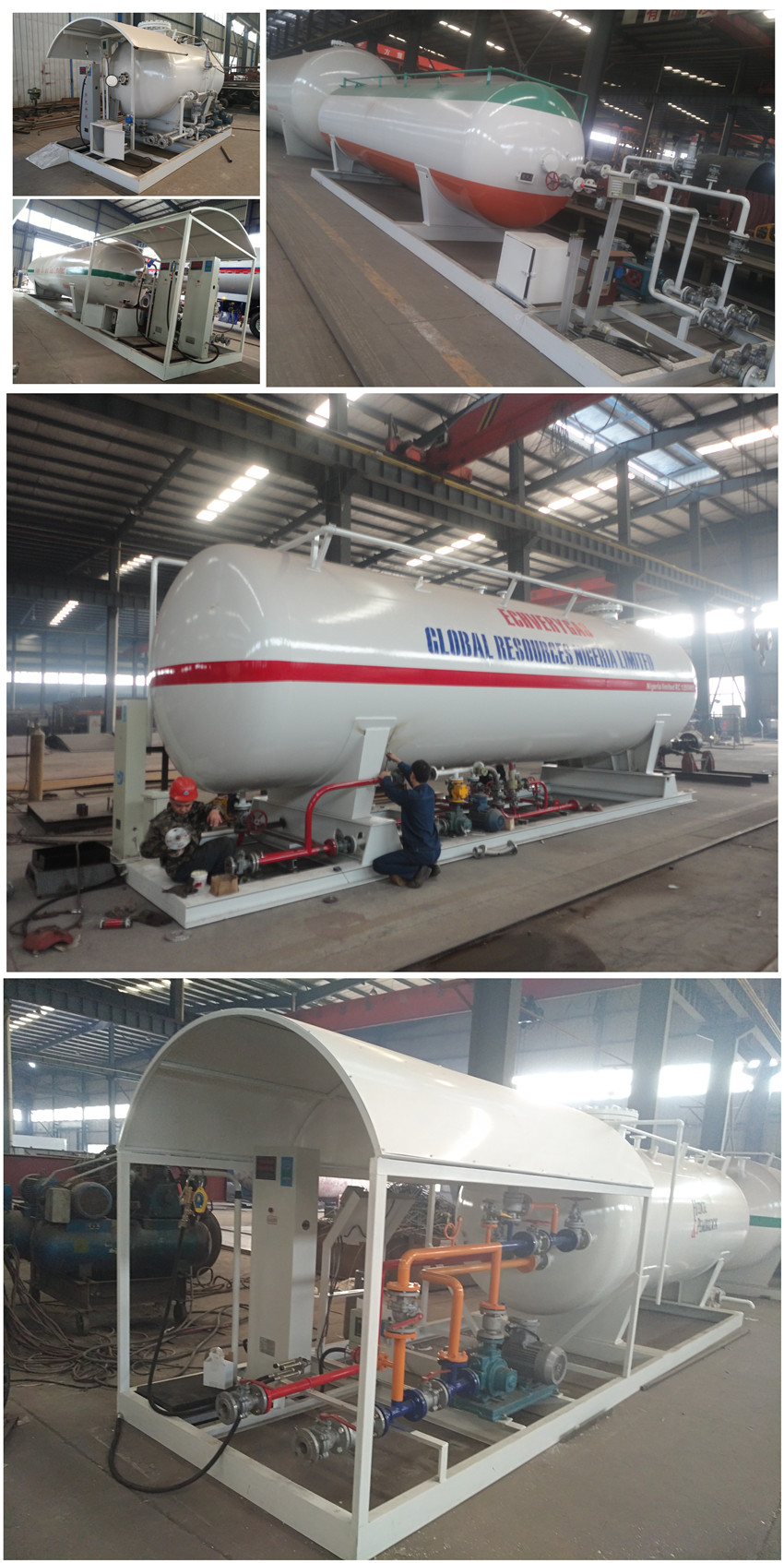

More pictures of hot sale CLW brand skid lpg gas plant as below.
More information, please kindly contact Ms. Anita Deng. The hot sale line is 0086 13329899995.
