Hot sale propane gas tank semitrailer with sunshield cover
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli Special Automobile Co., Ltd. could manufacture and sell surface/underground lpg gas storage tank, lpg gas tank semitrailer, lpg gas delivery truck, skid mounted lpg gas refilling station, etc.
And today, we will introduce the 2017s best seller-56,000L lpg gas tank semitrailer with sunshield cover for Africa Nigeria as below
| Tanker Essential Information | |
| Volume of Tank (cbm) | 56 bulk lpg gas tank semitrailer for sale |
| Overall Dimensions(L*W*H)(mm) | 12700*2500*3975 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2450*12*12340 |
| Estimated Tare Weight (kg) | 15480 |
| Payload(kg) | 23520 |
| Total Weight(kg) | 40000 |
| Wheelbase(mm) | 6865+1310+1310 |
| Shell of Tanker | |
| Products | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(℃) | -19℃~50℃ |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1.00 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
| End plate:Q345R,12mm,double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
| Flaw Detection | 100% Flaw detection |
| Hydraulic Test(MPa) | 2.21 |
| Manhole (As Customer’s Requirement) | |
| Quantity | 1;on top,DN450 |
| Safety Valve(As Customer’s Requirement) | |
| Quantity | 2 |
| Location | On the top of tanker |
| Size | DN50 or As Customer’s Requirement |
| Level Gauge 3*13T Fuwa | |
| Type | Manuel rotation type |
| Location | At the rear of the end plate |
| Running System | |
| Axles | 3*13T BPW brand |
| Tire | 12R22.5 Tubeless tire ,12 with one spare tire |
| Landing leg | JOST |
| King Pin | #50 or #90 |
| Control System | |
| Emergency Cut-off Valves | 2 |
| Ball Valve | 2 |
| Liquid Gauge | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Accessories | |
| Tool Box | 2 |
| Wheel Carrier | 1 |
| Fire Extinguisher | 2 |
| Fender | 6 |
| Paint | As Customer’s Requirement |
| chosen part: Aluminum alloy sunshiled cover | |
| Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels; | |

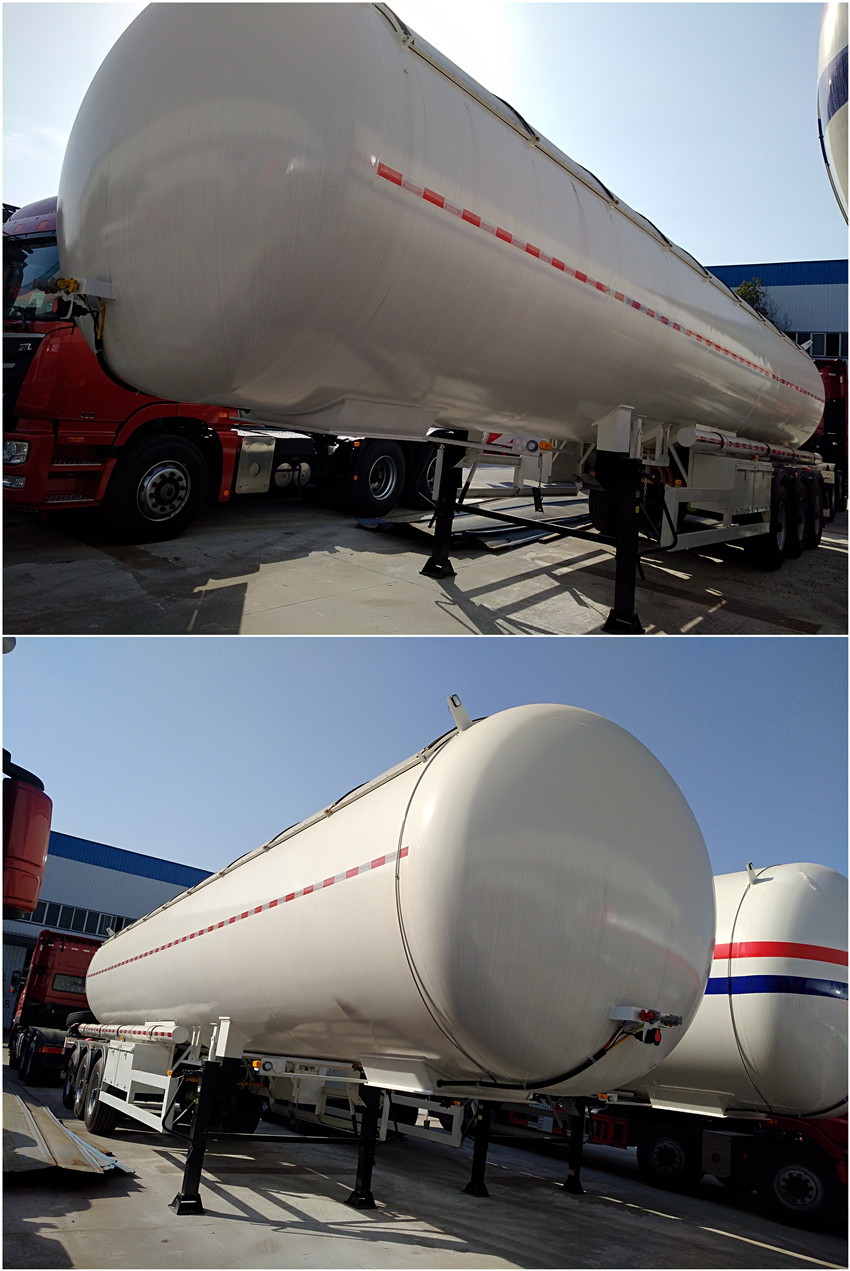

More pictures of hot sale 56m3 lpg gas tank semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below.
56,000L bulk lpg gas tank semitrailer for sale
More information of lpg gas pressure vessels, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
