hot sale 45,000L 18tons mobile skid lpg gas refilling station
18tons mobile skid lpg gas refillimng plant with tickt printer for Nigeria Client.
With almost two mouths' manufacturing, 45,000L skid lpg gas refilling station is finished for Nigeria. This time, this client from FABLINK Engrgy Resources Limited place an one unit of 25tons lpg gas trailer, one unit of 15tons lpg gas delivery truck, one unit of 45,000L skid lpg gas refilling station for its lpg gas station business in Nigeria.
And they customixed the skid lpg gas filling station with 3sets of electronic scales and filling nozzles for gas cylinders. That is to say, this skid lpg gas refilling station can fill 3 sets of gas cylinders at one time. And also print ticket for clients. At the same time, this 18tons mobile skid-mounted lpg gas refilling plant is installed with compressor to fill lpg gas delivery truck.

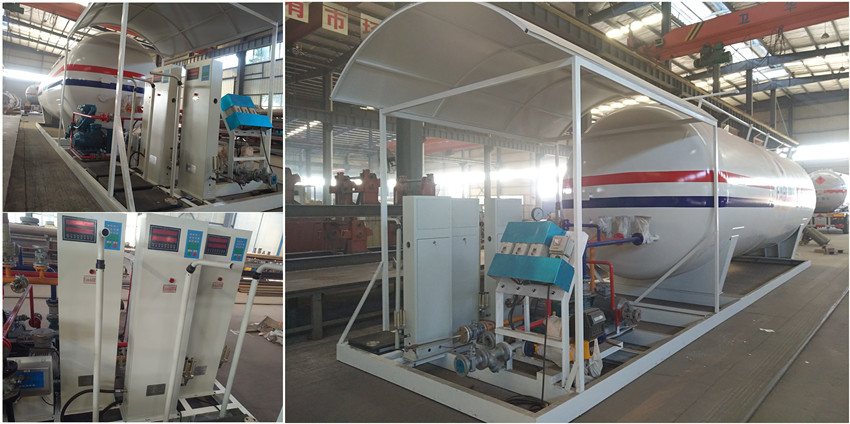

Look at the pictures of 18tons skid lpg gas refilling plant for FABLINK company manufactured by Chengli Special Automobile Co., Ltd. as below.

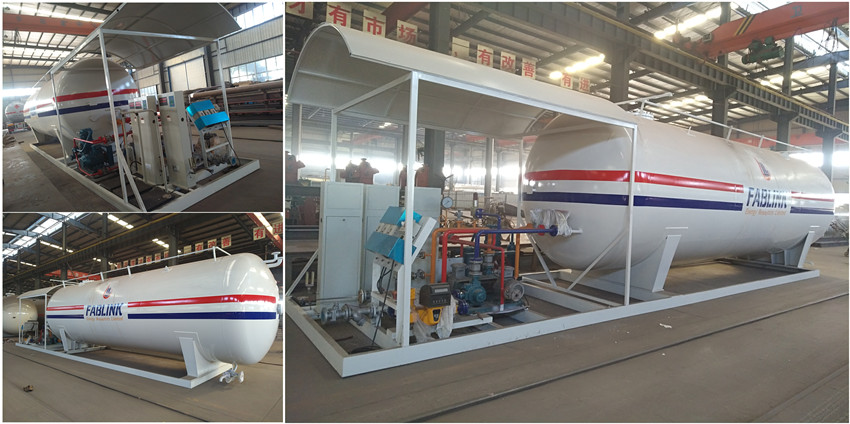

18tons skid lpg gas refilling plant for sale
high quality and best price 45,000L mobile skid-mounted lpg gas filling station for Nigerian client
The technical parameters of 18tons skid lpg gas refilling station as below
| 45,000L LPG TANK DIMENSIONS | |||||||||
| Volume of Tank | 45,000L | ||||||||
| Filling capacity | 17,955 kg | ||||||||
| Tank Weight | 10,220 kg | ||||||||
| Thickness of Shell (mm) | 14 mm | ||||||||
| Thickness of Endplate (mm) | 16 mm | ||||||||
| Tank Diameter (mm) | 2700 mm | ||||||||
| External Dimensions (mm) (length x width x height) | 8372 x 2728 x 3318 mm | ||||||||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||||||||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||||||||
| Design Pressure | 1.77 MPa | ||||||||
| Corrosion Allowance | 1 mm | ||||||||
| Medium Density | 0.42 kg/ cbm | ||||||||
| Working pressure | ≤1.6Mpa | ||||||||
| Working temperature | ≤50 | ||||||||
| Hydraulic test pressure | 2.22 | ||||||||
| Air tight test pressure | 1.77 | ||||||||
| Filling ratio | 0.95 | ||||||||
| Heat treatment | Stress relief | ||||||||
| Service time | 15 years | ||||||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||||||||
| Main parts of LPG Tank | |||||||||
| Item | Specification | Quantity | |||||||
| Discharge Pipe | DN50 | 1 | |||||||
| Inflow Pipe | DN50 | 1 | |||||||
| Outlet | DN50 | 1 | |||||||
| Gas phase balance pipes | DN50 | 2 | |||||||
| Manhole | DN450 | 1 | |||||||
| Drain Hole | DN50 | 1 | |||||||
| Electronic LPG scale | Can fill 1kg to 150kg gas cylinder without receipt printer | 3 | |||||||
| Main accessories： Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. | |||||||||
| LPG Pump & Motor Specification | |||||||||
| Pump Brand | Chinese brand lpg gas pump | ||||||||
| Model | YQB15-5 | ||||||||
| Medium | Liquid petroleum gas | ||||||||
| Working pressure differential | ≤0.5Mpa | ||||||||
| Inlet pressure | ≤1.0Mpa | ||||||||
| Flow Speed | 15.5m3/h | ||||||||
| Applied Power | 5.5kw | ||||||||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | ||||||||
| Revolution | 780r/min | ||||||||
| mass | 166kgs | ||||||||
| Motor | Chinese brand | ||||||||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | ||||||||
| LPG Cylinder electronic Filling Machines Specification | |||||||||
| | Brand | Chinese Kaiyuan Brand | |||||||
| Model | BCS-150 | ||||||||
| Power supply available | 220V 50HZ | ||||||||
| Rated power | 30W | ||||||||
| Max weighting capacity | 150kg | ||||||||
| Mini weighting capacity | 1kg | ||||||||
| Measurement Precision | ±0.5% | ||||||||
| Accuracy Level | Ⅲ | ||||||||
| Certified Division value | 50g | ||||||||
| Anti-explosion Rate | Exhibit II BT4 | ||||||||
| Weighing station size | 535*425mm | ||||||||
| Electronic scales No. | 3set | ||||||||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
