SINO TRUK HOWO 8*4 heavy duty truck mounted crane for sale (80tons)
80tons heavy duty truck mounted crane is one of our main mature products which is also named heavy duty truck with crane, mobile heavy duty crane, truck mounted heavy duty crane and so on. We have straight arm and floding arm truck crane with different specifications, models and different loading capacity. The lifting quality from 20ton to 150ton.
technical advantages of SINO TRUK HOWO 8*4 heavy duty truck with crane as below
1 .Adopt top brand SINOTRUK HOWO 8*4 chassis,
2. Engine model and brand: 420hp, D12.42-40, CNHTC Brand Euro 2 diesel engine
3. Payload is 80,000kgs
4. high quality and Factory direct sale price

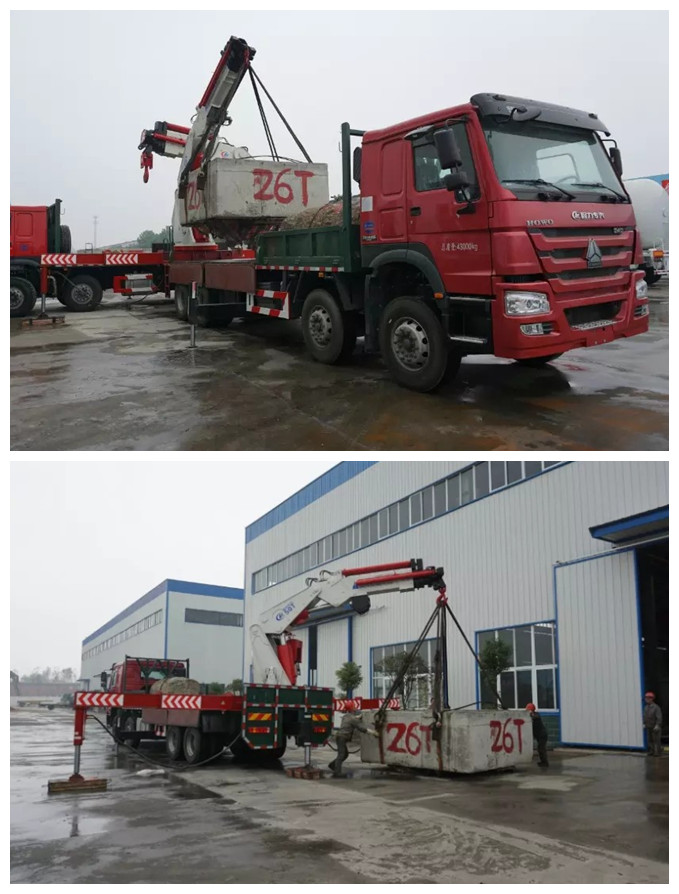

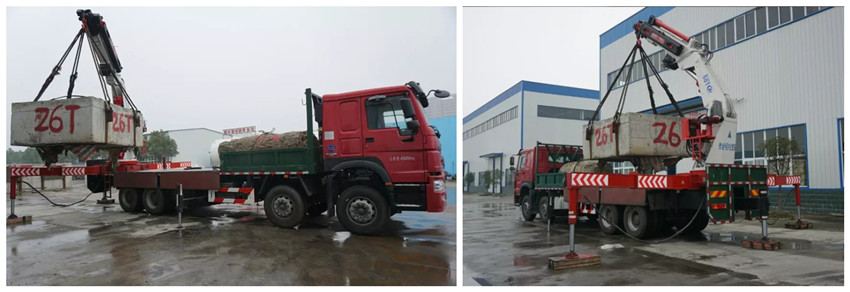

More pictures of hot sale SINO TRUK HOWO heavy duty 420hp truck with crane as below
HOWO 80tons heavy duty crane truck for sale
\
SINO TRUK HOWO heavy duty truck moounted on truck for sale
main parameters of hot sale SINO TURK HOWO brand heavy duty 420hp diesel truck mounted crane as below
Cabin | HW76 Cabin , with one sleeper, with two seats,with A/C,with right hand driven. | ||||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 12000×2500×3700 | |||
Wheel base (mm) | 1800+4600+1350 | ||||
Wheel track (front/rear) (mm) | 2022/1830 | ||||
Approach/Departure angle(°) | 16/15 | ||||
Weight in KGS | Tare Weight | 36000 | |||
Front axles loading capacity | 2x9000 | ||||
Rear axles loading capacity | 2x16000 | ||||
Max. driving speed(km/h) | 90 | ||||
Engine | Brand | SINOTRUK | |||
Model | WD615.47 | ||||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
Horse Power(HP) | 371 | ||||
Displacement (cc) | 9726 | ||||
Emission standard | Euro Ⅱ | ||||
Gearbox | HW19710 gear box,10-speed Forwards & 2 reverse | ||||
Steering | ZF8098 power steering,right hand drive | ||||
Tire | 12R22.5 Tubeless tyre ,13 pieces with one spare | ||||
Crane system
| l Crane model CLW80TONZ6 l Crane net weight 23000 KG l Max lifting capacity 80T at 4m operating radius l Telescopic boon no. 6 Pcs. l Hydraulic outer riggers 6 pcs l Max working operating radius 15.5m l Max lifting height 19 m l Rated working pressure for hydraulic system 28 Mpa l Hydraulic system flow 100 L/min l All rotation l Installation space 2400 mm | ||||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China. With many years'development, Chengli Special Automobile Co., Ltd. can manufacture and sell 1tons-20tons telescopic boom/folded boom mounted truck, and heavy duty crane truck, etc. More information, please feel free to cotnact with Ms. Anita. The hot sale line is 0086 13329899995.
