ISUZU brand 8*4 LHD refrigerated truck customized for bag milk transportation adopts ISUZU GIGA one row and a half driver cab, 1850+4575+1370mm wheelbase, 6WG1-TCG52 ISUZU 420hp Euro Ⅴ diesel engine, ZF 8 speed manual gearbox, 12.00R22.5 rail tires, 7T front axle/13T-20T rear axle, air conditioner, power steering, central locks + electric windows and doors, etc.
The overall dimension (L*W*H) of the ISUZU brand 8*4 LHD refrigerated truck is 12000×2600×3990 (mm); while the cold van box dimension(L*W*H): 9550×2420×2370(mm). Clients choose to install High quality USA Carrier brand vehicle-powered reefer unit, the lowest temperature up to -15 ℃, adjusted at the driver cab).
Exterior and interior of the ISUZU brand cold van box vehicle are with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality USA imported THERMO KING self-powered frozen refrigerating reefer , the lowest temperature is up to -15℃. And the reefer can be adjusted at the driver cab.

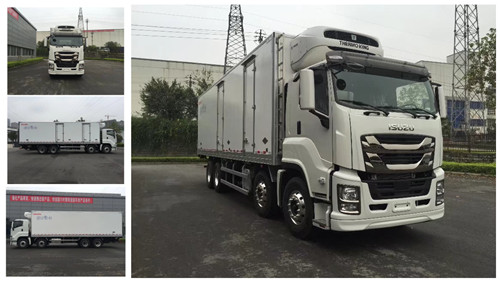

More pictures of ISUZU 8*4 GIGA refrigerated truck is asbelow.
Good price ISUZU Brand 8*4 LHD GIGA refrigerated truck for sale
Main technical parameters of ISUZU 8*4 GIGA refrigerated truck is as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | ISUZU 8*4 LHD refrigerated truck for sale |
| Drive Type | 8*4 LHD | |
| Real loading capacity (kg) | 20,000 | |
| Seating person | 3 | |
| GVW (kg) | 32000 | |
| Curb Weight (kg) | 14650 | |
| Overall Dimensions (mm) | 12000×2600×3990 | |
| Driver cab | ISUZU GIGA one row and a half driver cab | |
| Engine | Engine Model | 6WG1-TCG52 |
| Engine Brand | Isuzu | |
| Fuel Type | Diesel | |
| Max output (hp/kw) | 308KW/420hp | |
| Max torque (rpm) | 2060 | |
| Emission Standard | Euro Ⅴ | |
| Capacity (cc) | 15681 | |
| Chassis | Chassis Brand | ISUZU |
| Tire Specification | 12.00R22.5 | |
| Wheelbase (mm) | 1850+4575+1370 | |
| Axle No. | 4 | |
| Front/Rear axle | 7ton front axle/13-20ton rear axles | |
| Steering Wheel | Left hand drive | |
| Gear Box | 12 speed gearbox, manual | |
| Brake | Air brake | |
| Air-conditioner | Yes | |
| Cold Room | Box inner dimension(mm) | 9550×2420×2370 |
| Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
| Box Floor | Baseboard adopts aluminum alloy air flow vents, which keep the air flow and fresh for long distance delivering. | |
| Doors | Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. | |
| Refrigerator reefer | Reefer | Choose high quality USA Carrier Reefer upon request. And the teperature can be adjusted from -15℃ to 0℃ at the driver cab. |
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
