Good price ISUZU GIGA 6*4 LHD 420hp diesel 8T cargo truck with crane for sale
ISUZU GIGA 6*4 LHD 8T telescopic crane boom mounted on cargo truck adopts ISUZU VC61 GIGA one row and a half driver cab, 4565+1370mm wheelbase, 6WG1-TCG52 ISUZU 420hp diesel Euro Ⅴ engine, feastgear 12 speed manual gearbox, 12.00R22.5 tires, 7T front axle/13T-26T rear axles, air conditioner, air cut braking, electric windows and doors, central locks, power steering, ABS,etc.
The overall dimension(L*W*H) of ISUZU VC61 8tons mobile truck with crane is 10700X2500X3900 mm (mm); while the cargo body dimension(L*W*H) of ISUZU 8T cargo truck with crane is 6500*2300*550(mm); Clients choose to install XCMG brand/CLW brand 8tons/10tons telescopic/knuckle crane boom.

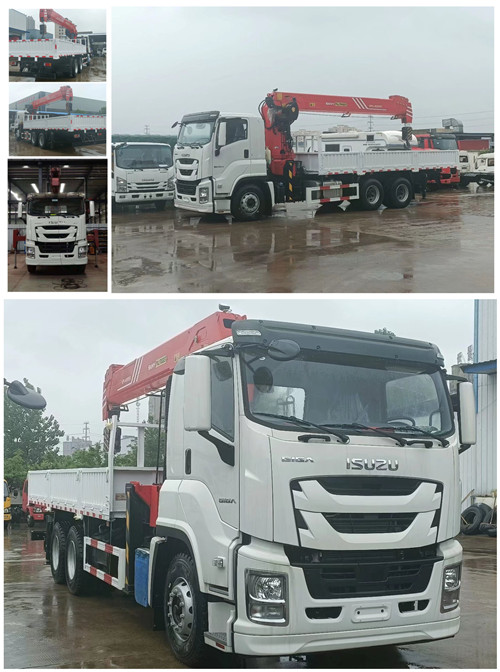

More pictures of ISUZU GIGA 6*4 LHD 420hp diesel 8T cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. is as below.
Customized ISUZU GIGA 8T mobile crane boom mounted on truck for sale
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc.
The specification of ISUZU VC61 6*4 LHD 410hp diesel 8T mobile truck with crane manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Product name | ISUZU 6*4 8tons telescopic crane boom mounted on cargo truck for sale | |
| Chassis type | ZZ | |
| Parameters | Overall dimension length/width/height (mm) | 10700X2500X3900 |
| Cargo body dimension (L*W*H)(mm) | 6500*2300*550 | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 12500 (Kg) | |
| Approach angle/ Departure angle(mm) | 17/12 (°) | |
| Front suspension/rear suspension(mm) | 1370/2210 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | 6WG1-TCG52 |
| Displacement/Power(kw) | 15681ml/420hp/308kw | |
| Manufacturer | ISUZU | |
| Chassis | Drive Type | 6*4 LHD |
| Wheelbase(mm) | 4565+1370mm | |
| Tread(front/rear) | 2060; 1855/1855 (mm) | |
| Transmission | Fastgear 12 speed manualgearbox | |
| Braking system | Air braking | |
| Cab | ISUZU VC61 | |
| Number of spring axle(front/rear) | 7/11 | |
| Tire Type | 1200R22.5 rail tires | |
| Air-condition | Yes | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body box dimension | 6500*2300*550(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG 8T 4sections knuckle crane boom | |
| Lifting mass(kgs) | 8,000kgs | |
| Lifting height(m) | 13.5m | |
| Working radius | 11.8m | |
| Remark | Full hydraulic and full rotational | |
| The color of the whole truck is upon request. | ||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us. The hot sale line is 0086 13329899995.
