Good price ISUZU brand FTR 4*2 LHD 205hp diesel 5T cargo truck with crane for sale,
Customized ISUZU brand FTR 5T cargo truck with crane for sale, adopts ISUZU FTR luxurious one row and a half driver cab with air conditioner+ power steering+ electric windows+ central locks, 5800mm wheelbase, ISUZU MLD 6 speed manual gearbox, 4HK1-TC50 ISUZU 205hp Euro Ⅴ diesel engine, 6.3T front axle/13T rear axle, 10.00R20 rail tires, air cut braking, ABS, etc.
The overall dimension(L*W*H) of ISUZU Brand FTR truck with crane is 9000×2500×3470(mm); while the cargo body box dimension(L*W*H) is 5550×2300×600(mm). Clients choose to install CLW Brand 5tons/6.3tons telescopic/knuckle crane boom.
Today, we will introduce customized ISUZU brand FTR 4*2 LHD 205HP 5T cargo truck with crane is as below.

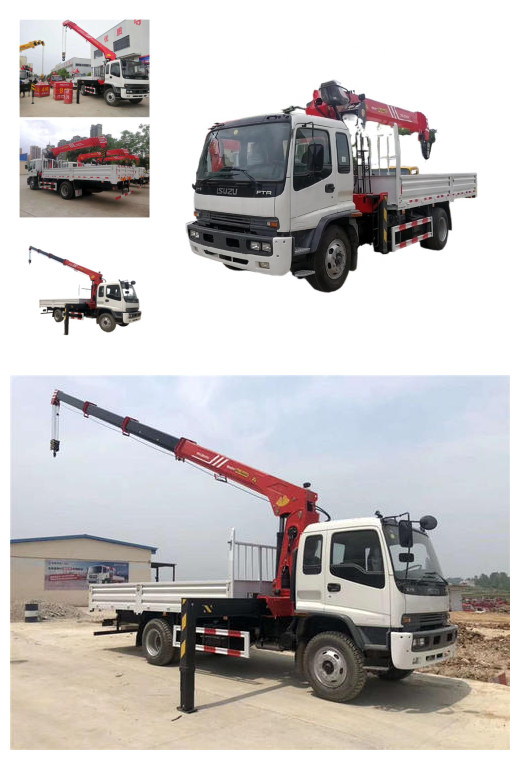

ISUZU Brand 4*2 FTR LHD 5tons telescopic crane boom mounted on truck for sale
The specification of ISUZU brand 5tons telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | ISUZU Brand 4*2 LHD 5tons telescopic crane boom mounted on truck for sale | |
| Chassis type | QL5160 | |
| Parameters | Overall dimension length/width/height (mm) | 9000×2500×3470 |
| Cargo body dimension (L*W*H)(mm) | 5550×2300×600 | |
| GVW(kg) | 16000 (Kg) | |
| Kerb Mass(kg) | 10550(Kg) | |
| Rated mass(kg) | 5255(Kg) | |
| Approach angle/ Departure angle(mm) | 26/10 (°) | |
| Front suspension/rear suspension(mm) | 1335/1865 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | 4HK1-TC50 |
| Displacement/Power(kw) | 5193ml/151KW/205hp | |
| Manufacturer | ISUZU | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 5800 | |
| Tread(front/rear) | 1960/1855 (mm) | |
| Transmission | ISUZU MLD 6 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Isuzu FTR one row and a half luxurious driver cab | |
| Number of spring axle(front/rear) | 9/7+7 | |
| Tire Type | 10.00R20 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5550×2300×600 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand/XCMG 5Ttelescopic/knuckle crane boom | |
| The color of the whole truck is upon request. | ||
Isuzu truck mounted crane also called as Boom Truck crane, Knuckle boom truck crane, Articulated boom crane, Truck loader crane, Crane trucks, Folding boom truck mounted crane, Hydraulic truck crane, Self loader truck with crane, Straight Arm Truck Mounted Crane, lorry mounted crane, mobile crane trucks,cargo truck with loader crane.
Isuzu truck mounted crane is a high efficiency vehicle can be used in Construction work, Highway maintenance, Electrical work, Landscaping to lift the cargo, load, transport and unload heavy stuff.
Isuzu truck have telescopic boom cranes and knuckle boom crane types,covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 20Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton,30 ton,50ton,70ton,100ton,150ton,200ton,250ton.etc.
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
