ISUZU brand 6T road wrecker towing truck with knuckle crane boom for sale
This ISUZU 4*2 LHD 6tons flatbed type wrecker towing truck with knuckle crane boom adopts ISUZU FTR one row and a half driver cab, 5000mm wheelbase, ISUZU MLD 6 speed manual gearbox, 4HK1-TC50 205hp diesel Euro 5 engine, 6.3T front axle/13T rear axle, 10.00R20 Rail tires, original air conditioner, power steering, electric doors and windows and central lock,etc.
The length of the flatbed for the ISUZU wrecker tow truck is 6200mm; while the width of the flatbed is 2400mm,
The standard devices of ISUZU 4*2 LHD 6tons road wrecker tow truck as below
1, 6 tons loading capacity for the upper part/flatbed
2, 6T hydraulic winch and 25m length wire rope
3, 5tons loading capacity of rear towing arm(choose to install)
4, auxiliary wheels*2 sets
5, bilateral linkage control valve
6, fully hydraulic flipping plates
7, caller with alarm light
8, auxiliary wheels*2 sets
9, 4* special binding belts
10, CLW Brand 5tons/6.3tons/8tons telescopic crane boom

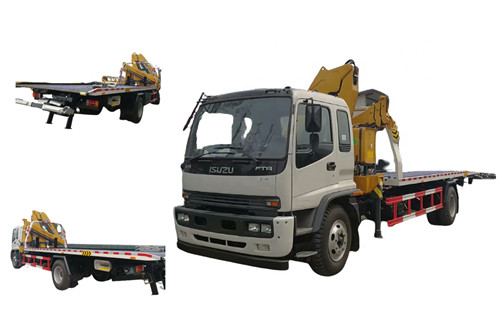

More pictures of ISUZU brand FTR 6T road wrecker towing truck with 5T/6.3T folded crane boom is as below
Good price ISUZU FTR 6T street wrecker towing vehicle with knuckle crane boom for sale
Main technical parameters of ISUZU brand 6T road wrecker towing truck with 5T/6.3T folded crane boom is as below.
| Overall parameters | Product name | ISUZU 6T wrecker tow truck for sale |
| Manufacturer | Chengli Special Automobile Co., Ltd. | |
| Product model | CLW5160TQZQ5 | |
| Total mass(kgs) | 16000 | |
| Rated mass(kgs) | ||
| Curb mass(kgs) | 9650 | |
| Overall dimension (L*W*H)(mm) | 9440×2465×3460 | |
| Chassis parameters | Driver cab | ISUZU FTR one row and a half driver cab |
| Approach/departure angle(°) | 26/16 | |
| Front/rear suspension(mm) | 1335/3105 | |
| Axles nos. | 2 | |
| Wheelbase(mm) | 5000 | |
| Axle load(kgs) | 4450/9550 | |
| Max speed(km/h) | 95 | |
| Tire specification | 10.00R20*6 | |
| Steel spring | 7/7+5 | |
| Front/rear tread(mm) | 1960/1855 | |
| Engine model | 4HK1-TC50 | |
| Fuel type | Diesel | |
| Emission standard | Euro Ⅴ | |
| Gearbox | ISUZU MLD 6 speed gearbox, manual | |
| Upper part parameters | Flatbed dimension(L*W)(mm) | 6200*2400 |
| Hydraulic winch | 5tons | |
| Operation way | Bilateral linkage operation | |
| Loading capacity of the flatbed | 6tons | |
| Wire rope | 25m length | |
| Auxiliary wheels | 2 sets | |
| Special binding belts | 4 sets | |
| Caller with alarm light | Yes | |
| Crane boom | Choose to install 5tons/6.3tons/8tons telescopic crane boom |
Wrecker towing truck is used for pulling the broken car,truck, bus or trailer, etc on highway and city road, suburb way ,airport, etc. It is made of chassis, hoisting equipment, lifting and towing equipment, hydraulic system, electric control system, truck body and the tool boxes. It combine the hoisting, lifting, towing functionm, etc. More information, please feel free to contact with Ms. Anita.
CLW brand wrekcer towing truck consists of the truck chassis, hoisting equipment, truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes. The tow truck can hoist, lift, draw, and be with other special functions, mainly used in highway, garage and city road obstacle cleaning.
As a professional road rescue truck supplier in China, we Chengli tow trucks can meet all your demand. Right hand wrecker tow trucks, left hand drive wrecker tow trucks, 4x2 wreckers, 4x4 wrecker truck, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker truck types, we produce flatbed tow truck, under lift wrecker truck, rotator tow truck, full landing wrecker tow truck, etc. More information, please call +86 13329899995.
